Introduction:

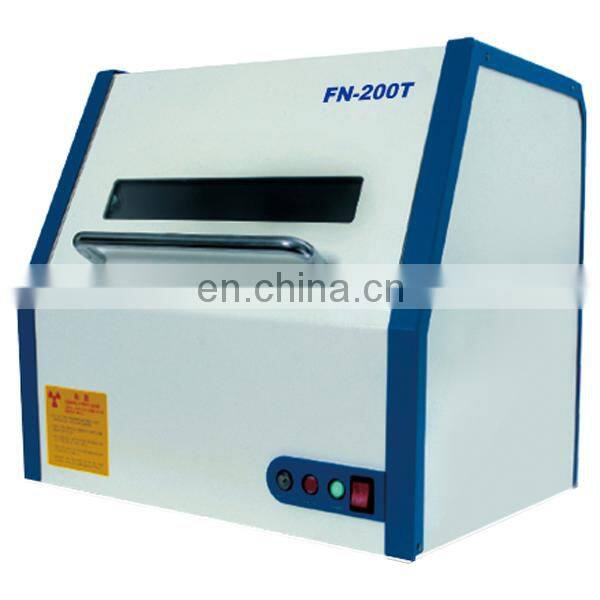

FN-200T Coating thickness analyzer adapt Principle of X - ray fluorescence spectrometer,The samples of vacuum cavity design;special for Analysis of metal plating coating;Simultaneous analysis of alloy composition in the coating ratio and optional RoHS analysis system.
Features:
Software support without standard sample analysis
Large analysis platform and sample cavity
Integrated coating interface and alloy composition analysis interface
The use of advanced many kinds of spectral fitting analysis technology
Analysis accuracy can be achieved 0.01μm
Technical parameters:
Multi coating:1-6layer
Test accuracy:0.01μm
Elemental analysis range:Al-U
Measure time:10-60s
Si PIN detector, the energy resolution:149electric volt
XYZ Three-dimensional mobile platform,Maximum load:5kg
HD CCD camera, precise monitoring position
Multi variable nonlinear deconvolution curve fitting
High performance FPMLSQ analysis
Platform movement range:300*300*25mm
Dimension :525*637*484mm
Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba.
|
We firmly believe that science and technology is no boundaries. Our mission is to make every effort to contribute to all humanity. |
