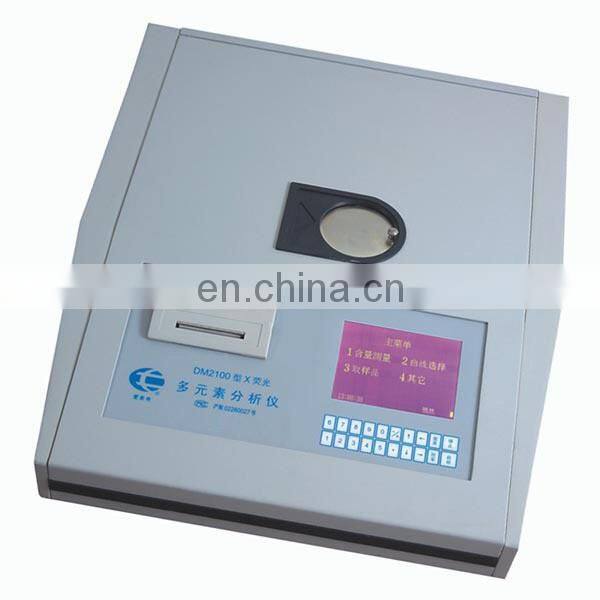

DM2100 multi-element X-ray fluorescence analyzer
Outline
DM2100 multi-element X-ray fluorescence analyzer stage a small X -ray fluorescence spectrum analyzer, but thanks to the country 's first sub- spectrum technique , the measurement accuracy is close to or reach the level of imports of large equipment , but the price is only imported large equipment one of a dozen points . Combined with chemical analysis can overcome the shortcomings , saving chemicals , do not pollute the environment , but also save labor , spend once put it down. Also can truly control raw material values , increase of cement clinker label , its benefits to hundreds of thousands a year , the average small cement companies to recover the investment within a year.
Technical parameters:
1 . Analysis element or its oxide species : Al, Si, S, Ca, Fe or oxides thereof .
2 . Analysis range: " control target ± 2.5%" range is determined by the calibration curve .
3 . System Analysis time: 300 seconds ( time to live ) .
4 . Analytical precision : S Al2O3≤0.07%, SSiO2≤0.07%, S SO3≤0.05%, SCaO≤0.09%, S Fe2O3≤0.05%.
5 . Conditions of Use: Ambient temperature : 5-40 ℃, relative humidity : ≤85% (30 ℃), Power supply : 220 ± 20V, 50Hz.
6 . Total power consumption : ≤50W.
7 . Size and weight : length × width × height : 560 × 470 × 150mm; Weight : 23Kg.
Main features:
(1) the rapid analysis of multi-component , usually a few minutes to give SiO2, Al2 O3, CaO, Fe2 O3 percentage of results .
(2) the use of the country's first sub- spectrum technique can really differentiate neighboring elements adjacent to accurately measure light elements and so on.
(3) Effect of X-ray tube or source of long- lived isotopes excitation , long-term use of the instrument , without the source decay .
(4) instrument with a large LCD display , the operation mode using the Chinese menu , easy to operate. The printer can print the measurement data .
(5) the use of physical analysis, the analysis does not touch , do not destroy the sample , without chemicals .
(6) instrument with integrated design , high degree of integration , reliability, easy maintenance.
(7) environmental adaptability , good long-term stability .
(8) the integration of instrumental analysis system that can be used independently , but also with the online batching system use .
(9) features than low price , suitable for China .
(10) no waste pollution , radiation protection safe and reliable.
|
Dear customer, We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history . Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science. Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system. If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba We firmly believe that science and technology is no boundaries Our mission is to make every effort to contribute to all humanity. |
