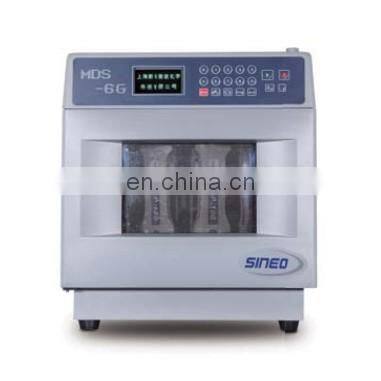

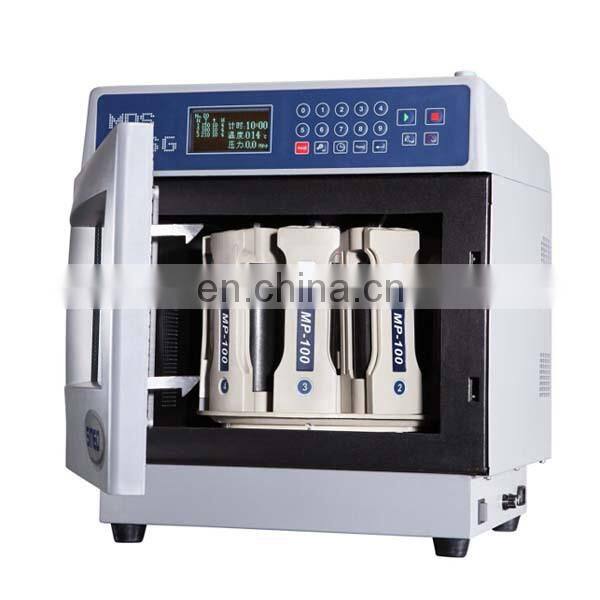

MDS-18 closed microwave digestion system
Features:
1. The outer vessel adopt antiexplosion, high tenacity XTRA FIBER that is corrosion resistance, high temperature, pressure proof.
2. The compressive strength of aerospace composite fiber is up to 10000psi and temperature 500-600°C, fundamentally eliminating safety risks to operator in use.3. Quantified vertical blast/safety bol
design, ensures samples be closed completely and trigger a quantified pressure relief while over
pressure.
4. Safety bolt (patent) unit, instead of safety membrane, ensure the digestion vessel be sealed
completely under normal working conditions.
5. The industrial-leading pressure measuring technology by piezoelectric crystal and high-precision Pt sensor temperature measurement and control.
6. Achieves the accurate closed-loop control of the temperature improves the efficiency of microwave transmitter of magnetron,
realizing energy saving (37.5 %).
7. The patented design that the whole set of digestion vessels in chamber always continuous
rotates in one direction, breaks conventions of <360° back and forth rotation of the digestion unit.
8. Sturdy and durable industrial-grade chamber design strengthen its impact resistance.
9. Professional focused microwave design make microwave heating more efficient.
10. Multi-layer chemical resistant coating greatly improves the service life and safety of the system.
11. The popup cushioning explosion-proof sliding chamber door builds a passive safety protection system, easing operation.
12. Double-locked self-checking system of the chamber door and the push-type open-door mechanism at the top make the operation simple and easy.
13. Efficient exhaust system design achieves fast and safe air-cooled cooling, improving operational efficiency.
Main Technical Parameters
Power |
220-240 VAC 50/60Hz 8A |
Microwave frequency |
2450MHz |
Installed power |
1800W |
Maximum output power |
1000W, non-pulse continuous automatic variable frequency control |
Turntable design |

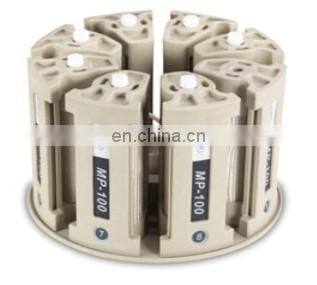

Load 8 MP-100 closed digestion vessels at same time |
Pressure measurement and control system |
Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa |
Temperature measurement and control system |
High-precision platinum resistor temperature sensor, temperaturerange :0-300°C, accuracy ±1°C |

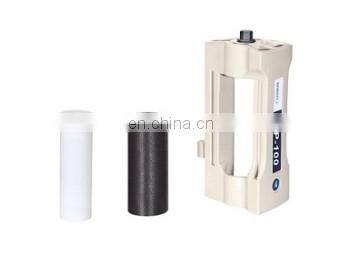

Outer vessel material |
Explosion-proof outer vessel made of aerospace composite fiber |
Inner vessel material |
TFM material |
Chamber exhaust system |
High-power anticorrosion axial fan, exhaust speed: 3.1 m3/min |
Operating ambient temperature |
0-40 ° C |
Working environment humidity |
15-80%RH |
Whole physical size |
450 x 515 x 510 mm (W x D x H) |
Net weight |
40 KG |
