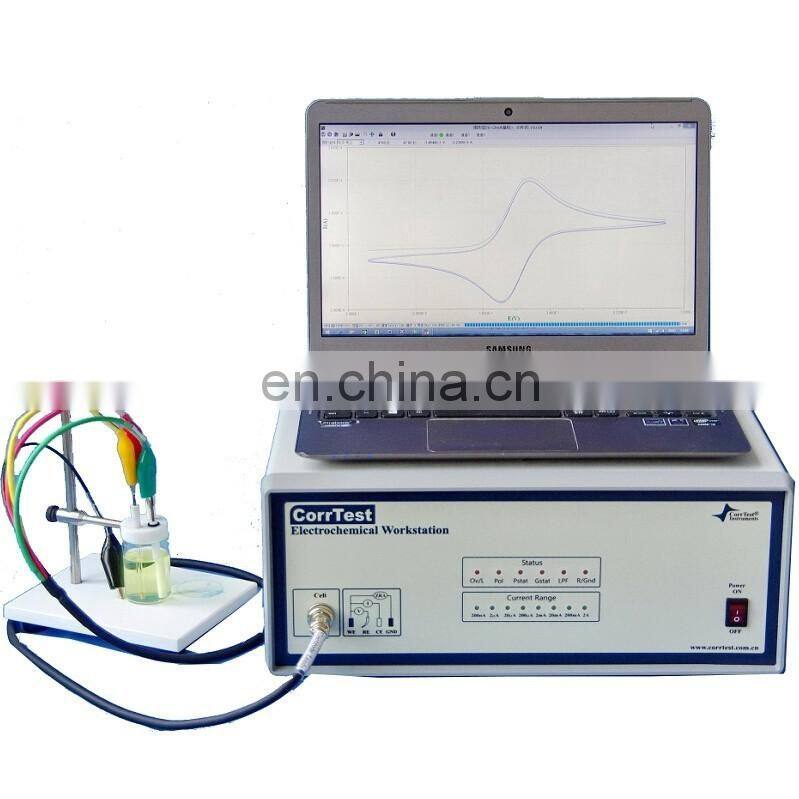

CS-2 Multi-channel Electrochemical Workstation (four Channels)

CS-2 Multi-channel electrochemical workstation (four channels)

Introduction

CS Series electrochemical workstation by a high-speed MCU, precision FET integrated circuits , built-in digital signal DDS synthesizer, high power potentiostat / galvanostat , dual-channel and dual- channel high-speed correlation analyzer 16bit / 24bit AD converter accuracy . Can complete linear sweep voltammetry (LSV), cyclic voltammetry (CV), step wave cyclic voltammetry (SCV), square wave cyclic voltammetry (SWV), differential pulse voltammetry (DPV) and normal pulse voltammetry (NPV) as well as conventional differential pulse voltammetry (DNPV) isoelectric analysis methods ; You can also complete constant current ( bit ) polarization , potentiodynamic ( Stream ) scan , arbitrary constant current ( bit ) square-wave , multi- constant current ( bit ) step , zero resistance ammeter , electrochemical noise ( galvanic current ) , electrochemical impedance spectroscopy (EIS) and other electrochemical measurements and other functions, all functions can be carried out regularly for unattended under the automatic measurements.

CS multi-channel electrochemical workstation ( four channels ) , channel switching using relay , timer control for time-sharing by measuring the electrolytic cell system is mainly used for automatic multi- cycle test , in order to improve work efficiency.

Instrument can be used for high-current and high- pressure trough electrochemical measurements, such as batteries, power analysis, corrosion, electrolysis, electroplating. Instrument voltage control range (10V; tank pressure (21V, output current range (2A, current measurement limit is 10pA. Instrument has one signal output can be used as waveform generator ; also has two input channels, in recording the electrochemical signal while recording an external voltage signal, for example, the photocurrent signal , etc., which is very convenient for spectroscopic tests .

CS Series USB2.0 interface used in all electrochemical workstation and computer communications, equipment installation is simple, plug and play.
Dimensions : 36.5cm ( W ) (30.5cm ( deep ) (16cm ( height ) Instrument Weight : 6.5Kg

Features

1 ) study the electrochemical mechanism , material qualitative and quantitative analysis ;
2 ) Conventional electrochemical tests, including electrochemical synthesis , electrodeposition ( electroplating ) performance evaluation ;
3 ) functional materials and energy materials ( batteries, super capacitors, nano-materials, bio- sensors, etc. ) Preparation and Characterization ;
4 ) inhibitor, water stabilizer , coatings and cathodic protection , and rapid evaluation of the efficiency of hydrogen permeation testing ;
5 ) a conductive metal material medium ( including water / concrete / soil and other environmental ) in electrochemical corrosion tests.

Technical parameters

1 ) Instrument host 1
2) CorrTest a set of software testing and analysis
3 ) special glass electrolytic cell ( salt bridges and exhaust pipes ) 4 sets
4 ) Platinum ( auxiliary ) electrode , a saturated calomel reference electrode, a working electrode of the four
5 ) Analog electrolytic cell 1
6 ) Power cord / USB data cable of a
7 ) electrode cable 4
8 ) shielding box ( optional * )
