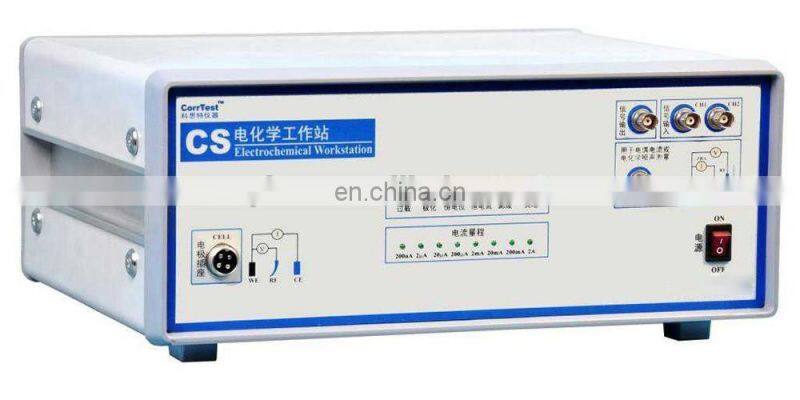

CS Series Electrochemical Workstation Potentiostat / Galvanostat /FRA EIS Impedacne

Introduction

It consists of high speed MCU, highprecision FET integrated circuits,

the builtin digital signal synthesizer DDS, high power constant voltage/constant current meter, dual

channel analyzer and dual channel 16 bit high speed/high accuracy 24 bit AD converter. Can accomplish

linear sweep voltammetric (LSV) and cyclic voltammograms (CV), staircase cyclic voltammograms

(SCV), square wave cycle volt-ampere (SWV), differential pulse voltammetric (DPV) and a conventional pulse voltammograms (NPV)

 and differential pulse voltammetric (DNPV) conventional electrical analysis method; Can also

complete constant current, constant potential polarization, zeta potential (dynamic) current scanning,

arbitrary constant current, constant potential) square wave, more constant current, constant potential

step and zero resistance galvanometer, electrochemical noise (electric current), electrochemical

impedance (EIS) and electrochemical test, etc, all measurement function all can timing automatically,

used for automatic measurement under unattended.

features

1 ) study the electrochemical mechanism ; qualitative and quantitative analysis of the substance ;
2 ) conventional electrochemical tests, including electrochemical synthesis , electrodeposition

( electroplating ) performance evaluation ;
3 ) function and the mechanism of energy materials ( batteries, super capacitors , nanomaterials ,

 bio- sensors, etc. ) , and preparation ;
4) inhibitor , water stabilizer , coating and cathodic protection rapid evaluation of the efficiency of

hydrogen permeation test ;
5) the corrosion of metallic materials in the conductive medium ( including water / concrete / soil

environment ) electrochemical testing .

Technical parameters

1 ) instrument host 1 set

2) CorrTest test and analysis software
3 ) special electrolytic cell ( salt bridge and exhaust pipe ) sets
4 ) a platinum electrode and the reference electrode , working electrode of each
5) Analog electrolytic cell 1
6 ) a power cord / USB data lines each

7 ) an electrode cable
8 ) electrode holder (optional * )
9 ) shielding box ( optional * )
