PCB etching machine,PCB stripping machine
- 100 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Brand Name: | SUNY | Place of Origin: | Hunan, China | Model Number: | SUNY-ZTM500 |
Product Description
Changsha Suny Electronic Technology Co.,Limited is a Professional manufacturer of the PCB production field. We have the factory in changsha of hunan, we can provide the:
1:PCB making machines
2:PCB etching machine
3:PCB through hole mahine
4:Completely PCB production line
5:Set up Small PCB factory
6:PCB prototyping laboratory
SUNY with more than 10 years experienced engineer team,we can povide the professional technical support as well as the overseas installation and training.
SUNY can provide all the related consumables and raw materials for the PCB machines and the PCB production line.
SUNY with the professional showing room in china, we provide the free installation and training service in china.

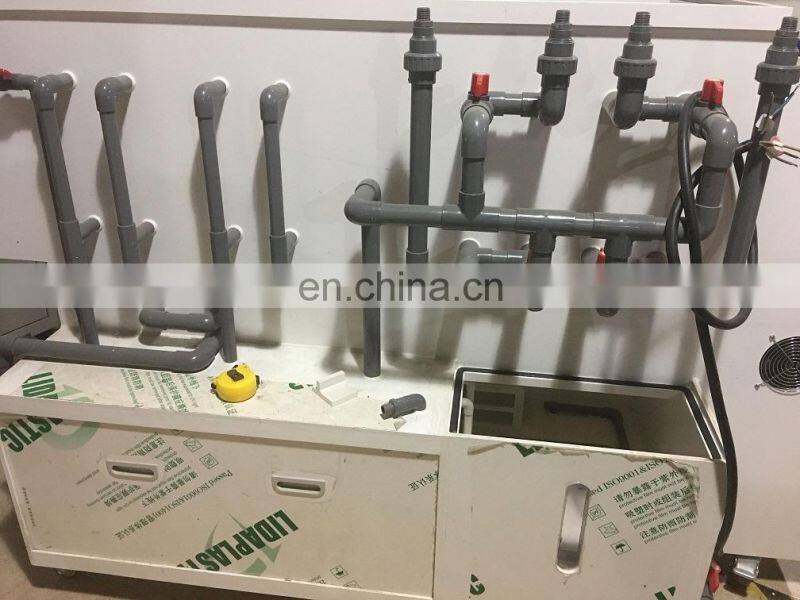

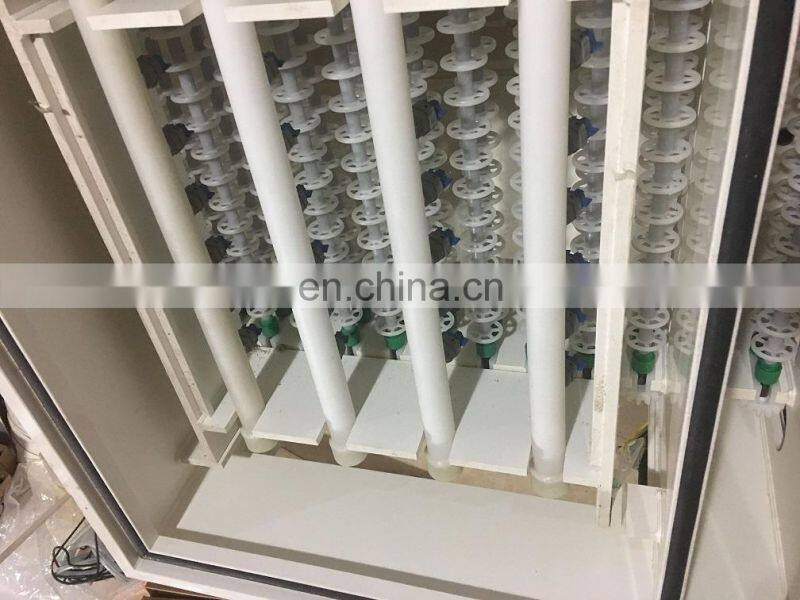

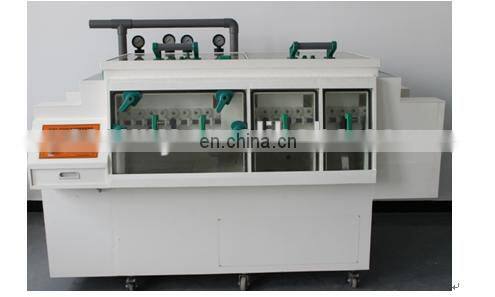

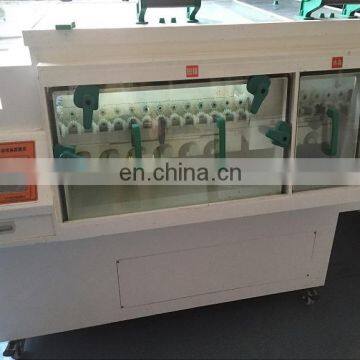

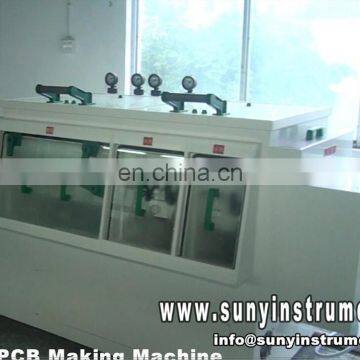

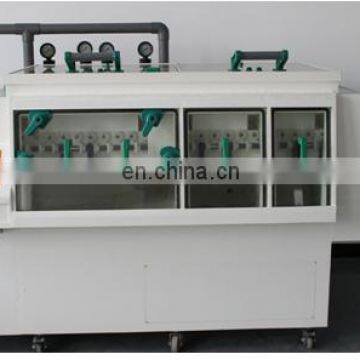

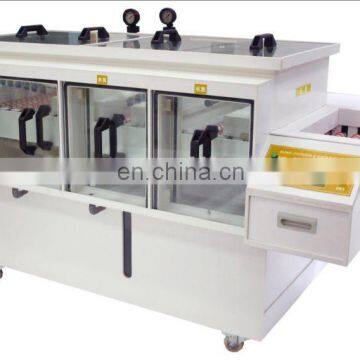

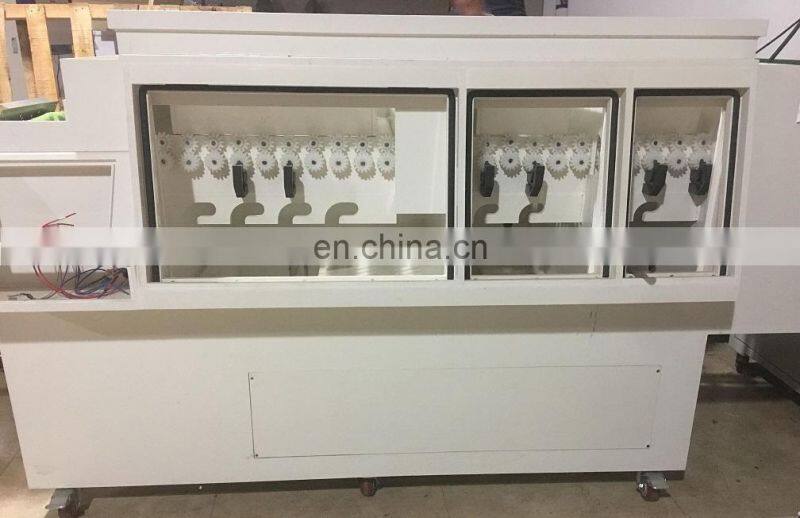

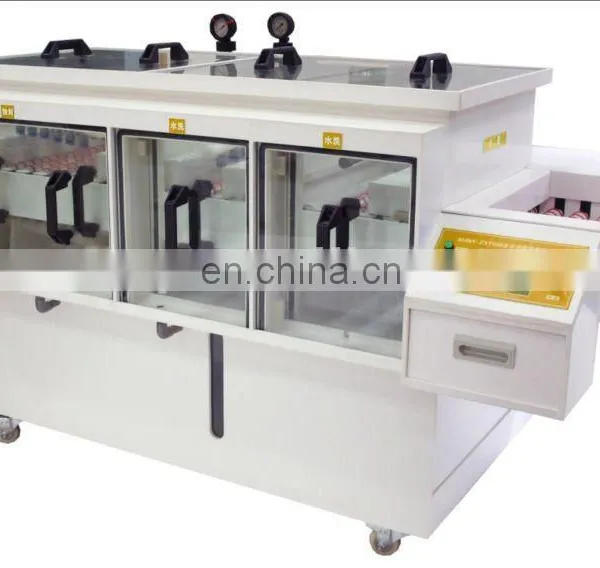

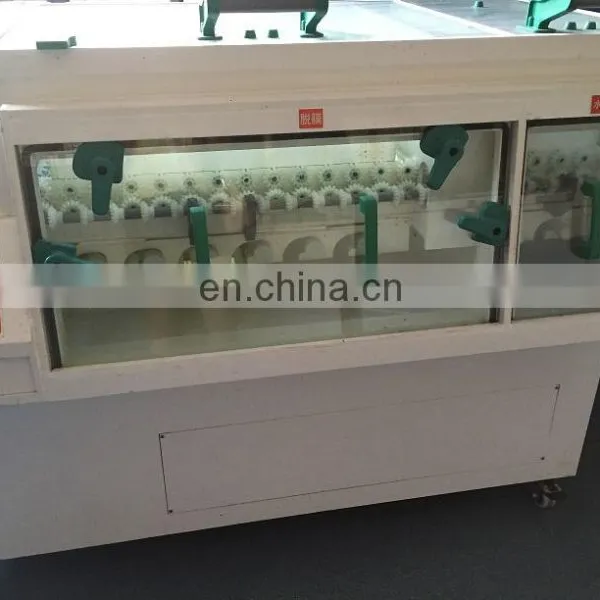

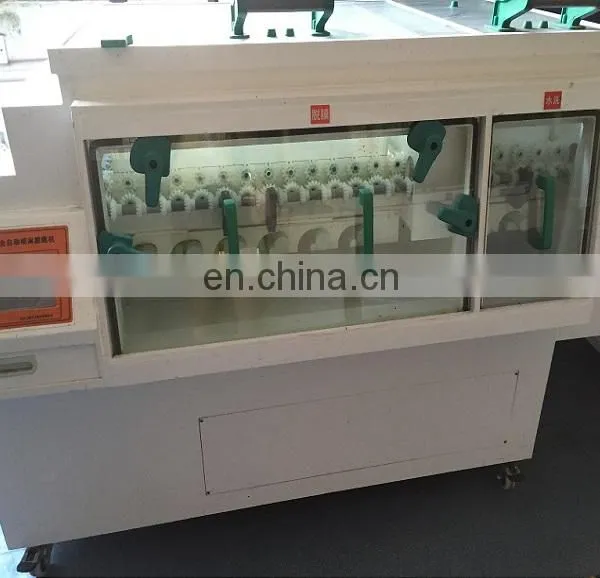

Full automatic spray stripping machine
1. Usage: realizing stripping process of the circuit board processing through high pressure spraying and automatic transmission;
2. Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition stripping process manual ; In touch screen you can play the video file in stripping process;
3. The machine adopts anticorrosive PVC material, with excellent anti acid and alkali performance;
4. The roof and the front of the machine both have double completely transparent glass windows, so the whole process can be observed
5. With level automatic in board detection function, it can stop automatically in a due time, to make the machine operation more intelligent and automatic
6. With up and down spraying pressure testing and adjustment function, it can make some adjustment to up and down spraying pressure according to the technical requirements;
7. With liquid level instruction window, you can understand the liquid level of the machine in real-time;
8. The machine configures four universal caster wheels for more convenient location adjustment of the equipment;
9. With automatic stripping, liquid isolation, automatic water washing, liquid blotting of board surface and other functions, realizing clean and environmental protect production of the PCB;
10. The effective work area: double-sided plate of 400 mm width; double-sided plate of unlimited length;
11. Working mode: PCB automatically in and out board, automatic high pressure spraying up and down double-sided;
12. Work time: 10~240s adjustable;
13. Temperature setting: 20~55°C;
14. Standard volume: 50L;
15. Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;
16. Power supply: AC380V/9KW
17. Overall dimension: 1400mm×1040mm×1250mm;
18. Net weight: 200KG.
