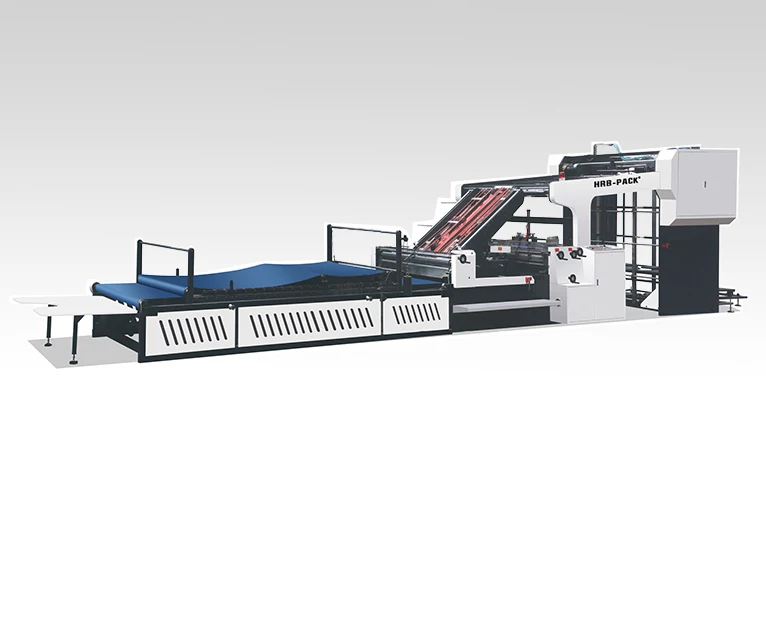

HRB-G Fully Automatic Flute Laminator Machine
USD $50120 - $62370
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Tianjin
- T/T L/C
- 2 days
You May Like
- Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
- 1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
- 220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
- 400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
- 400mm 600w infrared quartz heating element carbon fiber quartz tubes
- 230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Brand Name: | HRB | Place of Origin: | China | Model Number: | HRB-1300/1450/1600 |
Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 6500kg |
Dimension(L*W*H): | 11.5*2*2.4m | Voltage: | 380V | Power: | 20KW |
Application: | Machinery & Hardware | Condition: | New | Automatic Grade: | Automatic |
Driven Type: | Electric | Packaging Material: | Plastic | Packaging Type: | Film |
Product Description
Product Parameter
Model | HRB-1300G | HRB- 1450G | HRB- 1600G |
Max sheet size | 1300X1250mm | 1450 x 1250mm | 1600x 1250mm |
Min sheet size | 500X500mm | 500X500mm | 500X500mm |
Top paper thickness | 150-600g | 150-600g | 150-600g |
Max .speed | 12000pcs/h | 12000pcs/h | 12000pcs/h |
Precision | ±0.5mm | ±0.5mm | ±0.5mm |
Size | 11.5X2X2.4M | 11.5X2.2X2.4M | 13.5X2.4X2.4M |
Weight | 6500kg | 7000kg | 7500kg |
Power | 20KW/380V | 20KW/380V | 22KW/380V |
Bottom paper thickness | A,B,C,E,F Flute corrugated sheet,paper board more than 300gsm |
Product show

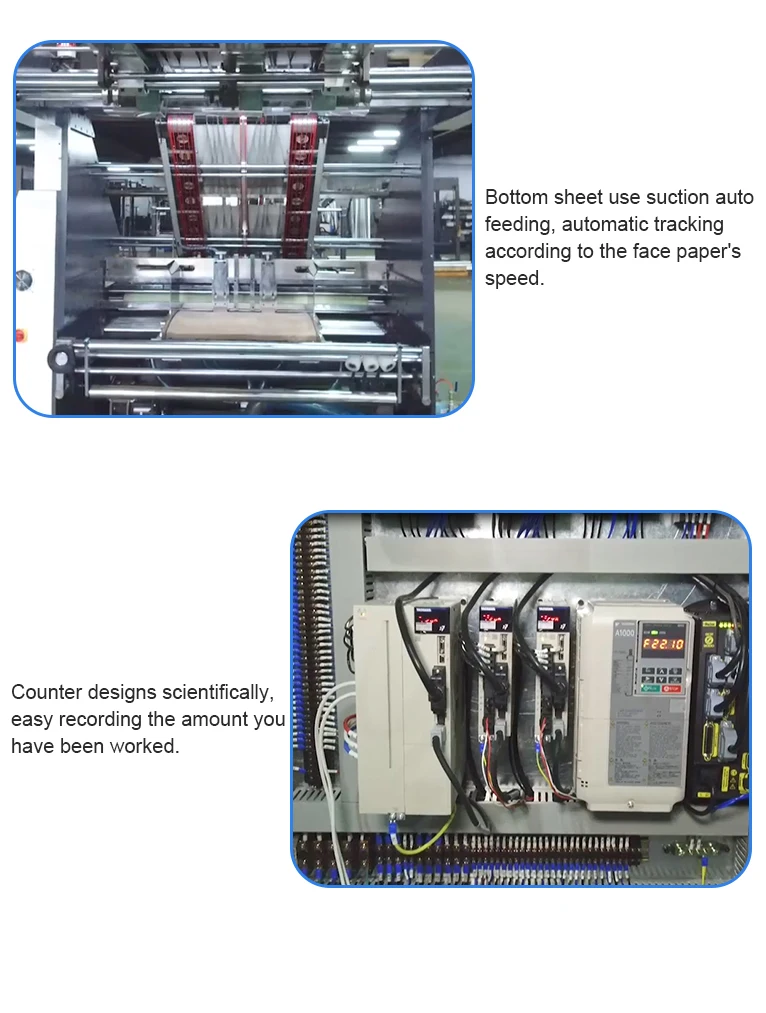

The vacuum suction type feeding system can lead the paper accurately into the machine;cycle stacking planes could stack the next batch paper well in a state of non-stop working ,more efficient.
Roller design scientifically, avoid glue fly out when the speed is high.Pressure rollers adopt one side adjustment, convenient and fast.Rocker controls wash roller's fluctuation, easy cleaning.
product details
Finished product dis
