Home > Products > Resistivity meter > Multi-Electrode 2D Resistivity imaging system water & metal detector
Multi-Electrode 2D Resistivity imaging system water & metal detector
- 200 Set / Sets per Month
- Chongqing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
Product Details
Brand Name: | Gold | Place of Origin: | China | Model Number: | WGMD-4 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description
Multi-Electrode 2D Resistivity imaging system water & metal detector
Main Application
The system can be widely used in energy exploration and urban geophysical exploration, railway and bridge exploration, metal and non-metallic mineral resources exploration, groundwater exploration, hydrological and engineering geological exploration of reservoir dam foundation and flood control embankment, and geothermal exploration.
Water resources, metal and non-metal mineral resources exploration.
City geophysical exploration, railway and bridge inspection.
Hydrology and engineering geology as inspecting dam base and flood protection levee for incipient faults.
Geothermal prospecting.
Main features
Advanced measurement and control methods
Ultra-large power supply, ultra-wide range and ultra-high accuracy
Large capacity data storage
The imported fully sealed box has the advantages of moisture-proof, dust-proof and long service life.
Technical Specification

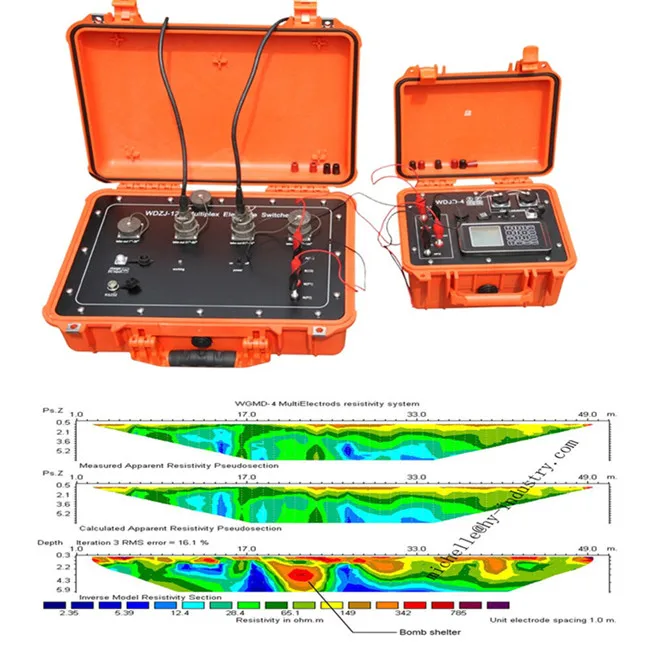

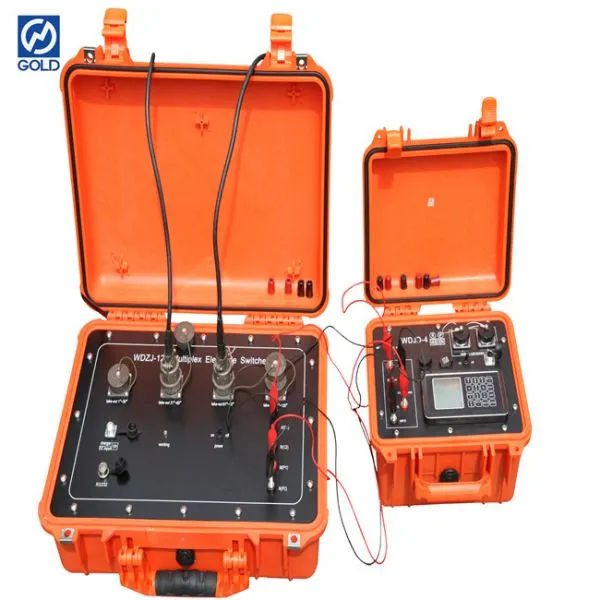

Centralized Multi Electrode Resistivity System

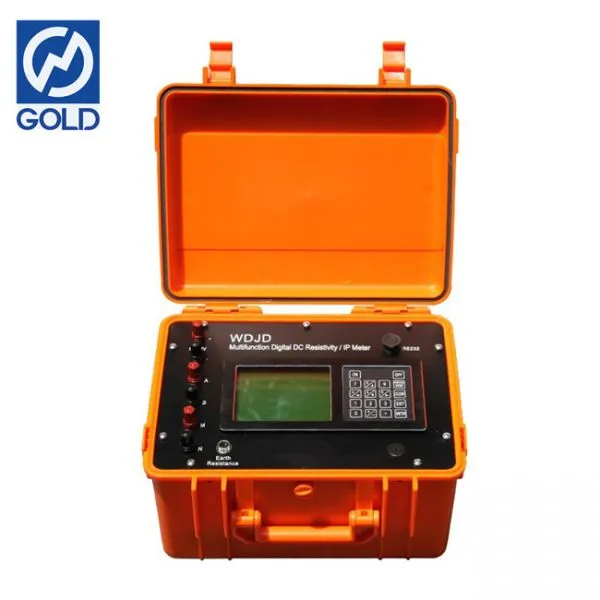

Multi-function Digital DC Resistivity & IP Instrument(host machine)
Receiving part
Voltage precision | ±24V,±0.4% ±1LSB,24 bit A/D |
Input impedance | ≥50MΩ |
Apparent polarizability precision | ±1%±1LSB |
SP compensation range | ±10V |
Current channel | 6A,±0.4% ±1LSB,24 bit A/D |
Suppression | ≥80dB for 50Hz industrial frequency |
Transmitter part
Maximum power | 6600W |
Maximum supply voltage | ±1000V(2200Vpeak to peak) |
Maximum supply current | ±6A(12Apeak to peak) |
Pulse width | 1-60 seconds, duty rate 1:1 |
Others
Storage | ≤1GB |
Instrument power | Internal 12V 9Ah rechargeable battery,lasts for 30 hours(or 12V external power supply) |
Main unit port | A,B,M,N, DC high voltage, outside battery, RS-232, USB etc. |
Dimension(L*W*H) | 270mm*246mm*175mm |
Working temperature | -10℃~+50℃,95%RH |
Storage temperature | -20℃~+60℃ |
Packaging & Shippment
Company Info
Chongqing Gold M& E Equipment Co., Ltd is specializes in manufacturing and development of geophysical
equipment such as Resistivity Meter, IP instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger,Drilling
Equipment and Survey Instrument.
After-sale service
For hardware problem.Please send us the photos,and we will send the damaged part to you for free.For big issues like main board etc,please send them to us and we will repair them in 10 work days.We should take care the freight on each side.
For software problem. We will arrange for the video conference with the engineer (GMT+8 9:00-18:00)Or you can connect the with the engineer directly.
We also can arrange our engineer to solve the Customer's problems to customer's working place but the cost will be undertaken by customers. And we are also welcome that the customer come to our company to learn how to operate the instrument and how to maintain the instrument.
