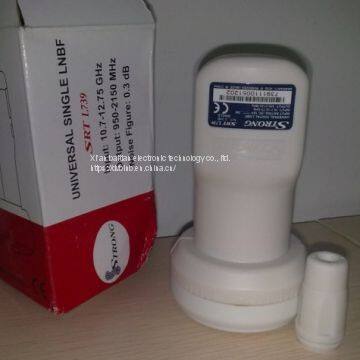

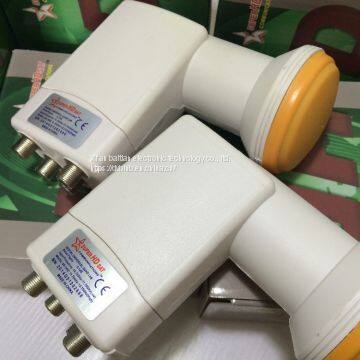

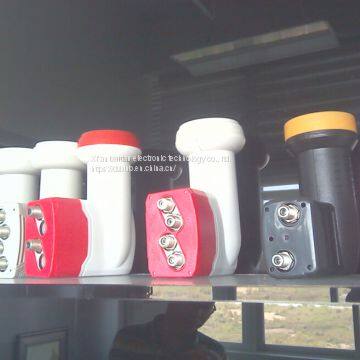

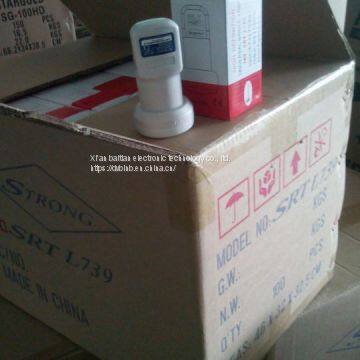

SUPER HD SAT STRONG STARGOLD TOKYOSAT STARCOM AZBOX IPM TELEVES UNIVERSAL 8OUTPUT LNB8 LNBF
Single LNB1 TWIN LNB2 QUAD LNB4 8OUTPUT LNB8 universal LNBF KU BAND
Input Frequency Range LOW Band:10.7~11.7GHz
High Band:11.7~12.75GHz
Output Frequency Range Low Band: 950 - 2050MHz
High Band: 1100 - 2150MHz
Input VSWR 2.5:1
Output VSWR 2.5:1
L.O. Frequency Low Band 9.75GHz
High Band 10.6GHz
L.O. Stability ±2MHz @ (-40c~70c)
L.O. Phase Noise -70dBc/Hz (1KHz Offset)
-90dBc/Hz (10KHz Offset)
-110dBc/Hz (100KHz Offset)
Conversion Gain 60dB (TYP)
Gain Flatness ±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure ±0.1dB (Typ)
Image Rejection 50dB(Typ)
Output Power +5dB (Min) (at 1dB gain compression)
Cross Polarization Discrimination 23dB(Min)
DC SUPPLY VOLTAGE 11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT 130mA (MAX)
LOW/HIGH BAND SWITCHING Low Band: 0Hz
HIGH BAND: 22KHz±4KHz
Output Connector 75Ω "F" type female
RELATIVE HUMIDITY 0%~95%
Operating Temperature -30 °C to +70 °C
