Universal Super High Gain Single Output ku Band Lnbf Waterproof FULL HD Version Strong Signal

Universal Super High Gain Single Output ku Band Lnbf Waterproof FULL HD Version Strong Signal photo-1

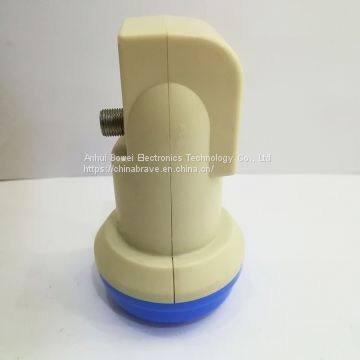

Universal Super High Gain Single Output ku Band Lnbf Waterproof FULL HD Version Strong Signal photo-2

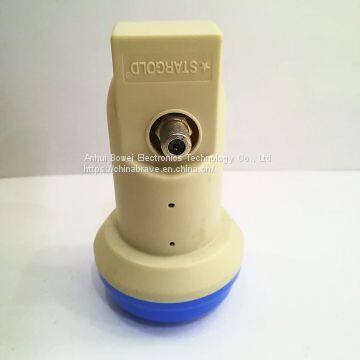

Universal Super High Gain Single Output ku Band Lnbf Waterproof FULL HD Version Strong Signal photo-3

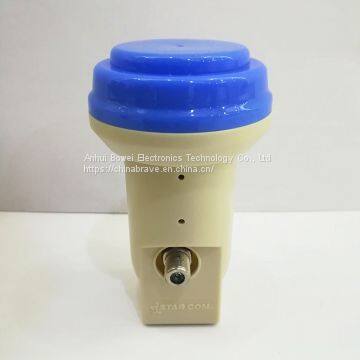

Universal Super High Gain Single Output ku Band Lnbf Waterproof FULL HD Version Strong Signal photo-4

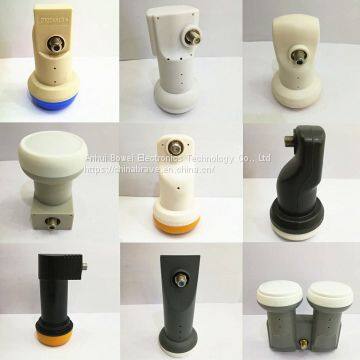

Universal Super High Gain Single Output ku Band Lnbf Waterproof FULL HD Version Strong Signal photo-5
US$ 1.3 - 4.99 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
bowei
Place of Origin:
China
Model Number:
BT-1807
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
5 days
Brand Name bowei
Place of Origin China
Model Number BT-1807
Type Digital
High Definition Yes
FTA(Free To Air) Yes

Universal super high gain single output ku band lnbf waterproof FULL HD version strong signal



Key Features:

1. Higher conversion gain
2. Ultimate reliability
3. Superior noise figure
4. Waterproof, weather protection, high performance
5. Easy installation
6. OEM&ODM supported

7. Low power consumption



Brands We Served:


initpintu__

Product Description  :

IMAG0900IMAG0896_IMAG0898_

initpintu_

Specifications:


INPUT FREQUENCY

10.7~12.75 GHz

L.O. FREQUENCY

9.75/10.6GHz ± 1 MHz

STABILITY

±2 MHz(-40 °C- +70 °C)

L.O. PHASE NOISE

-70 dBc/Hz@1KHz
-90 dBc/Hz@10KHz
-105 dBc/Hz@100KHz

OUTPUT FREQUENCY

Low Band : 950 ~ 1950 MHz
High Band : 1100 ~ 2150 MHz

CONVERSION GAIN

6O dB (TYP)

GAIN FLATNESS

±0.5 dB/36 MHz

NOISE FIGURE

0.3dB

LOCAL LEAKAGE AT INPUT

-45 dBm

IMAGE REJECTION

50 dB

OUTPUT POWER

+ 5 dBm (AT 1 dB COMPRESSION)

CROSS POLAR ISOLATION

23dB MIN

DC SUPPLY VOLTAGE

11-14.5 V (V),15.5-22 V (H)

OPERATING TEMPERATURE

-40 °C~ +70 °C

RELATIVE HUMIDITY

0%~95%

IF OUTPUT CONNECTER

"F" TYPE FEMALE*4

OUTPUT IMPEDANCE

75 OHMS

Why us?

company info

Anhui Bowei Electronic Technology Co., Ltd is  aspecialist company for manufacturing and selling all kinds of microwave high frequency electronics including Yagi antenna, satellite antenna, LNB etc. for more than 20 years.

We are always emphasizing " quality is our culture". It is our responsibility to provide clients with high quality and low price goods.

Factory producing process:
Production line- Assembly- Gluing lnbf caps- waterproof & sealing- Testing before packing
1_
IMG_2761_         CE_


Shipping:

We do our best to process your order as quickly as possible.
