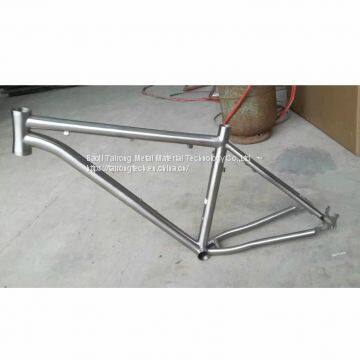

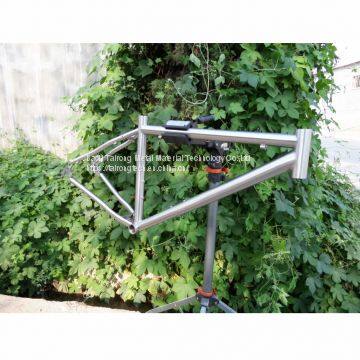

Help CenterHigh Light Weight GR9 Titanium Road Bike Bicycle Frame in Stock
Related Products
-
Titanium Ti-6al-4v Tube Made Titanium Mountain Bicycle Frame for CompetitionUS$ 550 - 750MOQ: 5 Kilograms -
High Strength Gr9 Ti-3Al-2.5V 29er Titanium Bicycle Frame for Mountain BikeUS$ 550 - 750MOQ: 5 Kilograms
-
Professional Manufacturing GR2 Titanium Bar Rod in StockUS$ 19 - 28MOQ: 50 Pieces
-
Factory Direct Marketing ASTM B 348 Gr1 Titanium Bars RodsUS$ 19 - 28MOQ: 50 Pieces
-
Gr 4 ASTM F67 Titanium Barsrods Low Density and High QualityUS$ 19 - 28MOQ: 50 Pieces
1.Size:48-52cm
2.Weight:1.2-1.6kg
3.Grade: Gr2,Ti 3Al2.5V seamless tubing
4.High quality
5.Light,strong and stiff
6.Double butted tubings
7.Delicately Hand
8.Customized
2. Introduction
Product |
Titanium Bike Frame |
Color |
Silver |
Material |
Titanium |
Size |
26"*490/510/530/550/570mm |
H/T |
31*38mm |
T/T Diameter |
31.8mm |
D/T Diameter |
31.8mm |
S/T |
31.8*26.0mm |
O.L.D |
135W |
Weight |
1.2-1.5kg |
3. Our titanium frame use below tubing size:
Top tube |
OD31.8/34.8 x 0.9mm |
round tube |
Down tube |
OD34.9/38.1/40/42/48 x 0.9mm |
round tube |
Seat tube |
OD31.8/34.9 x 0.9mm |
oval tube |
Chain stay |
OD19/22.2 x 0.9mm |
oval tube |
Seat stay |
OD16/19 x 0.9mm |
tube |
Head tube |
OD38 x ID34mm |
matched with 11/8 fork steering tube |
Bottom bracket shell |
OD40 X L68mm |
English threaded |
4. The Advantages of Titanium Frame:
1. Extended fatigue life.
2. None corrode under atmospheric condition and easy maintenance.
3. Twice as strong as aluminum, 30% more elastic than steel, more elegant.
4. Flexibility, ride in comfort.
5. Greater elongation tolerance.
5. Frame Drawing
Geometry of Road bike frame
Item |
S |
M |
L |
A Head tube angle |
72.5° |
73° |
73° |
BB offset |
65 |
65 |
65 |
C Chain Stay Length |
410mm |
410mm |
410mm |
D Seat tube Angle |
76° |
76° |
76° |
|
E Top tube Angle Length Horizontal |
522mm |
555mm |
572mm |
F BB center to top tube center |
520mm |
540mm |
560mm |
G Reach |
395mm |
420mm |
435mm |
H Head tube Length |
73mm |
93mm |
113mm |
I Offset |
43mm |
43mm |
43mm |
J fork to bottom bracket |
680mm |
603mm |
620mm |
Size Chart | |||
Spec. |
165-175cm |
175-185 cm |
185-195cm |
Plasma 3/TT |
S/51.5 |
M/54 |
l/56 |
Any questions pls feel free to contact with us,thanks a lot.
