Help CenterHigh Strength Gr9 Ti-3Al-2.5V 29er Titanium Bicycle Frame for Mountain Bike
Related Products
-
Professional Manufacturing GR2 Titanium Bar Rod in StockUS$ 19 - 28MOQ: 50 Pieces -
Factory Direct Marketing ASTM B 348 Gr1 Titanium Bars RodsUS$ 19 - 28MOQ: 50 Pieces
-
Gr 4 ASTM F67 Titanium Barsrods Low Density and High QualityUS$ 19 - 28MOQ: 50 Pieces
-
ASTM B381 Gr2 Titanium Bars/rods Price per Bar in StockUS$ 19 - 28MOQ: 50 Pieces
-
ASTM B381 Ti-6Al-4V ELI Titanium Bar Titanium Price per kgUS$ 19 - 28MOQ: 50 Pieces
Product |
Titanium Bike Frame |
Color |
Silver |
Material |
Titanium |
Size |
26"*490/510/530/550/570mm |
H/T |
31*38mm |
T/T Diameter |
31.8mm |
D/T Diameter |
31.8mm |
S/T |
31.8*26.0mm |
O.L.D |
135W |
Weight |
1.2-1.5kg |
2. Technology Data Sheet

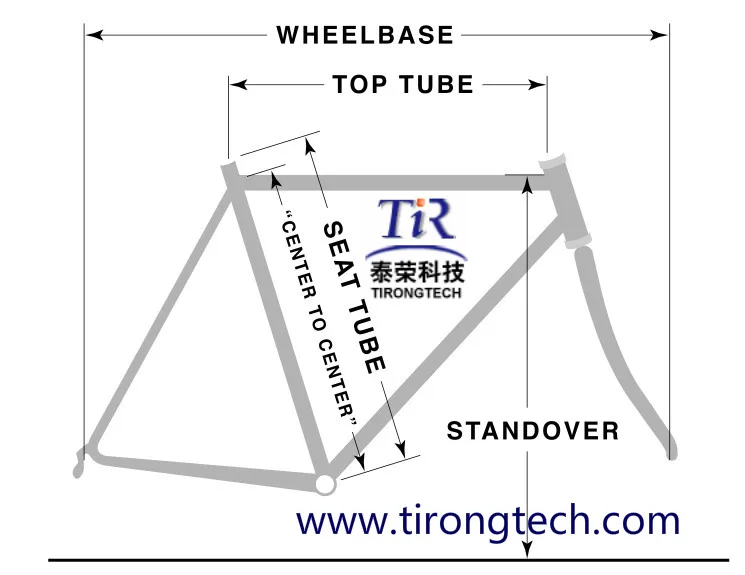

Titanium Frame Geometry | ||||||||
|
Size (C to T) |
Seat Tube angle |
Top Tube length (C to C) |
Head Tube angle |
Fit for Seat Post |
Chain Stay length |
Fork rake |
Wheel base length |
|
14'' |
74° |
518mm |
70.5° |
Φ31.6mm |
424mm |
38mm |
1016mm |
|
15'' |
73.5° |
524mm |
70.5° |
Φ31.6mm |
424mm |
38mm |
1024mm |
|
16'' |
73.5° |
531mm |
70.5° |
Φ31.6mm |
424mm |
38mm |
1035mm |
|
17'' |
73° |
554mm |
71° |
Φ31.6mm |
424mm |
38mm |
1050mm |
|
3. The Advantages of Titanium Frame:
1. Extended fatigue life.
2. None corrode under atmospheric condition and easy maintenance.
3. Twice as strong as aluminum, 30% more elastic than steel, more elegant.
4. Flexibility, ride in comfort.
5. Greater elongation tolerance.
4. Characteristics
China factory Supe titanium bike frame for sale
1. Vibration Resistance
Titanium is resilient as it protects the cyclist from most vibration. You never know riding is such a comfortable thing without it.
2. Long service life
1) Titanium is tough at both high and low temperatures. It resists breaking, cracking or chipping under impact or stress.
2) Titanium is a self-healing metal that forms an oxide ceramic skin over itself when scratched. This gives it the ability to resist being eroded by contact with outside materials such as dirt, sand, ice, mud, etc. You may enjoy a lifetime riding with it.
3. Light weight
Titanium is 40% lighter than steel.
4. Strength-to-Weight Ratio
Titanium has superior strength-to-weight ratios. It is the choice for aircraft.
5. Corrosion Resistance & Rust free
Titanium is corrosion proof in all naturally occurring environments, like Acid or Damp or Ultraviolet rays. These can't be the problems! Never worry about the traces of time on a titanium frame, for it is rust free.
6. Flexibility
Titanium may be flexed or bowed repeatedly without undergoing rupture. It has ½ of the modules of steel; therefore, it will bend at least twice as far before breaking.

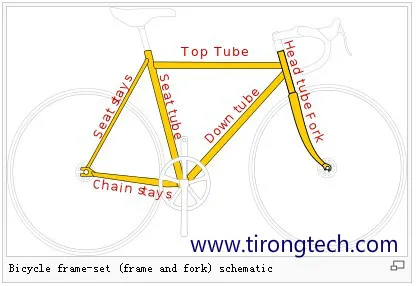

5. Our Bike Drawing

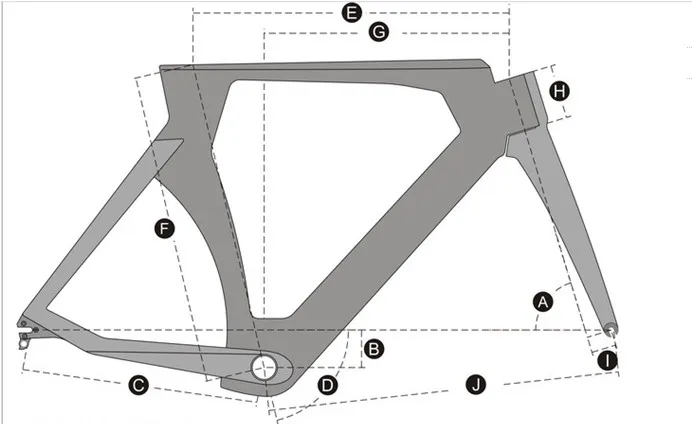

6. Geometry of Road bike frame
Item |
S |
M |
L |
A Head tube angle |
72.5° |
73° |
73° |
BB offset |
65 |
65 |
65 |
C Chain Stay Length |
410mm |
410mm |
410mm |
D Seat tube Angle |
76° |
76° |
76° |
|
E Top tube Angle Length Horizontal |
522mm |
555mm |
572mm |
F BB center to top tube center |
520mm |
540mm |
560mm |
G Reach |
395mm |
420mm |
435mm |
H Head tube Length |
73mm |
93mm |
113mm |
I Offset |
43mm |
43mm |
43mm |
J fork to bottom bracket |
680mm |
603mm |
620mm |
Size Chart | |||
Spec. |
165-175cm |
175-185 cm |
185-195cm |
Plasma 3/TT |
S/51.5 |
M/54 |
l/56 |
