0.6/1KV XLPE insualtion Aluminum ABC CABLE/SERVICE DROP WIRE with Best price
Professional OEM manufacturer
Top ten cable manufactuer in China
WITH UL,TUV,KEMA,CE,BV,PSB,SABA CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
ISO9001,ISO18001,OHSAS18001
Aerial Bundled Cable, ABC Cable, Overhead cable
Voltage:0.6/1kV
Cores:1, 2, 3, 4, 5, 6
Range of Nominal cross section:10 mm2 - 300 mm2
Application:
A new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line.
Standard: NF C 33-209, IEC, BS, SABS, ASTM

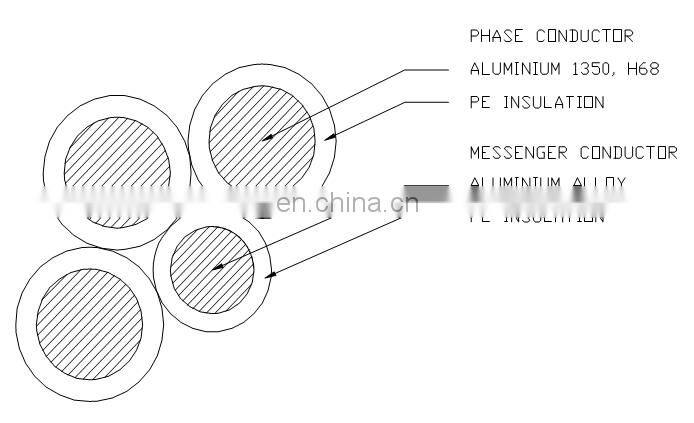

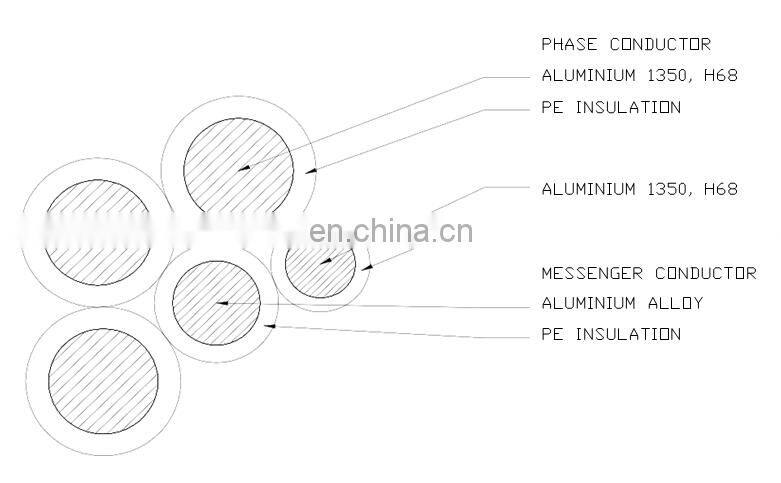

Construction
Conductor:Aluminum, Alloy Aluminum, ACSR
Insulation:XLPE, PE
Size:
2 x 16 mm2
3×25 mm2+54.6 mm2+16 mm2
2 x 25 mm2
3×35 mm2+54.6 mm2+16 mm2
2 x 35 mm2
3×50 mm2+54.6 mm2+16 mm2
2 x 50mm2
3×70 mm2+54.6 mm2+16 mm2
4 x 16 mm2
3×70 mm2+70 mm2+16 mm2
4 x 25 mm2
3×95 mm2+70 mm2+16 mm2
4 x 35 mm2
3×120 mm2+70 mm2+16 mm2
Max. Operating Temperature:90 ℃
Packing:Steel drum or as per requirement
Production Capacity:10 kilometer / day
MOQ:500-1000 meters for 6.35/11kV cable, 500 meters for other voltage
Delivery time:10 - 15 working days
Remark:The cable can be of flame retardance, fire resistance, environment friendly or other property
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC
DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained
ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR
certificates.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
