LV MV HV Copper/Aluminum Conductor 240mm XLPE 4 core armoured cable cabo blindado cavo corazzato

FOB Price

USD $0.1 - $99 / Meter

500 Meters(Min.Order)

Supply Ability 500 Kilometer / Kilometers per Month
Port Tianjin port Qingdao port Shanghai port or other main port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	RNEDA	Place of Origin:	Hebei, China	Model Number:	YJV32
Type:	Low Voltage	Insulation Material:	XLPE
Jacket:	PVC	Conductor Material:	Copper

Product Description

Alibaba China LV MV HV Copper/Aluminum Conductor manufacturer 240mm XLPE 4 core armoured cable

Top ten cable manufacturer in China

Professional OEM manufacturer

WITH UL,TUV,KEMA,CE,BV,PSB,SABA CERTIFICATIONS

WITH TUV TYPE TESTING REPORT

ISO9001,ISO18001,OHSAS18001

1 Product Standard

This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEA

standard as customer request.

2 Application

The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.

Operating Performance

1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90℃
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250℃

4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.

6). The test voltage (A.C.): 3.5kV/5min.

7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.

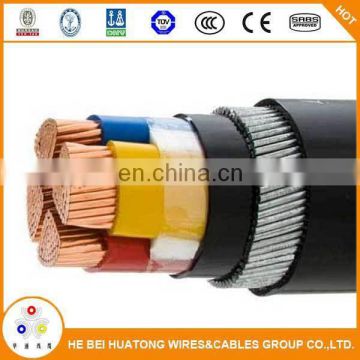

3 Construction:

Conductor: Solid or stranded copper,aluminum

Insulation: Cross-linked polyethylene( XLPE or PVC)

Circuit Identification: The insulation shall be red, black

Filler: Polypropylene lament with lapped binding tape

Inner Sheath: Polyvinyl chloride (Black)

Armor: Galvanized steel wire

Core-covering: Binding tape

Outer Sheath: Polyvinyl chloride (Black)

Package: Wooden Drum Package or Iron-wooden drum

4 Type and Name

Type	Designation
YJV	Copper conductor,XLPE insulated,PVC sheathed power cable
YJLV	Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY	Copper conductor, XLPE insulated,PE sheathed power cable
YJLY	Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22	Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJLV22	Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23	Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23	Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32	Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJLV32	Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33	Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
YJLV33	Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable

Details show

Packaging & Shipping

Company Information

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

Office

Certification

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC

DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained

ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR

certificates.

FAQ

(1)When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(5)What cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.

(6). Which payment terms do you accept?

A: The payment term varies with different price level and total value of every contract.

The following are most common terms:

a.100% TT advance for small amount orders.

b.30% T/T down payment, balance payment negotiable accordingly.

Our Services

1. 22 years production experience and 13 years export experience .

2.high-end Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good reputation.

fessional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample

10.We can do that you expect
