Reliable flame detectors (oil, coal and lignite flames)
FORNEY IDD-II Intelligent Dynamic Flame Detector enables accurate detection and identification of oil flames, coal flames and lignite flames.
The IID-IIU flame detector is used to detect oil flames and coal flames. The IID-IIL flame detector is used to detect lignite flames.
The IDD-II Intelligent Dynamic Flame Detector is used in conjunction with the FORNEY Fire Detection Amplifier DR-6161E, DR-6101, RM-IDD, IDD-IIIA. When the IDD-II flame detector detects the flame, its hardware circuit amplifies the ripple voltage signal generated by the sensing element, and the amplified signal is transmitted to the amplifier via a four-core shielded cable. The amplifier processes the signal and outputs the signal to the burner management system.
The electronic devices of the flame detector are enclosed in a cast aluminum housing. The amplifier periodically performs a self-test to determine if the flame detector is working properly.
Features:
1. Lead sulfide photoelectric sensor:
Infrared and visible light for oil, coal and lignite flames.
2. Dynamic flame detection circuit:
Only produce a dynamic flame signal, without detecting heat radiation.
3. Simple and durable structure:
The circuit board and the sensing element are enclosed in a cast aluminum housing as a replaceable part.
4. Easy installation and maintenance:
Fast electrical and mechanical contact, easy installation and maintenance.
5. FM certification
IDD-II intelligent dynamic flame detector
Product and installation accessories
IID-II has filters (coal and # 6 oil)
IID-IIU no filter (# 2 oil and gas)
IID-IIU no filter (# 2 oil and gas)
Forney Fire Detector IDD 9000

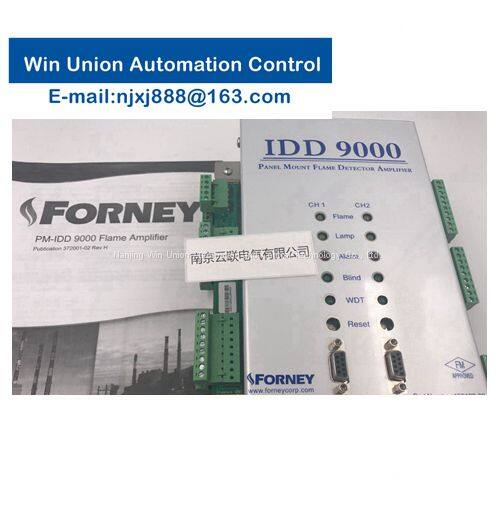

The IDD 9000 Flame Detector Amplifier provides enhanced identification and tuning for NFPA-compliant systems and a single retrofit solution for multiple discrete legacy amplifiers.
Products and accessories:
Dual Channel Panel Mount (PM) IDD 9000 Amplifier Part Number 408100-00
Single Channel Panel Mount (PM) IDD 9000 Amplifier Part Number 408100-50
Rackmount (RM) IDD 9000 Amplifier - Dual Channel Part No. 408120-01
Amplifier Tuning Kit Part Number 408103-01
Termiflex /SMARTDisplay® terminal with 9-pin connector * part number 408106-01
Cable 40' (for IDD) part number 399854-04
Cable 40' (for UV-4) part number 399855-04
Compatible flame detectors:
IDD-II, filter, infrared detector part number 38321-21
IDD-IIU, unfiltered, infrared detector part number 38321-22
IDD-IIL, infrared detector for lignite component #38321-23
UV-4, UV tube detector part number 379189-02
*If using an old Termiflex /SMARTDisplay® terminal with a 25-pin connection, a DB25 pin to DB9 pin adapter is required (Forney Part#408107-01)
IDD 9000 specifications:
Panel Mount: Rack Mount:
Dimensions: 10 1/2" x 7 7/8" x 3 7/8" (26.6 cm x 20 cm x 9.8 cm) 6.5 x 14 x 1.75 inches (155.6 x 355.6 x 44.5 mm)
Weight: 5 pounds. 3 oz, 1 lb, 7 oz
Temperature: 32° to 140°F (0° to 60°C)
Humidity: 5% to 95% relative humidity, no condensation
Power requirements: 120/240 VAC, 50/60 Hz @ 12 VA
Output relay rating (SPDT): 125 VAC, 3 A at 250 VAC and 30 VDC.
There are 3 relays (bulb, main flame and alarm) for each channel.
Flame intensity: 4-20 mA or 0-10 VDC (purchasing)
Flame Fault Response Time (FFRT): 2.0, 3.0 or 3.8 seconds
Flame picking time: less than 2 seconds
Non-volatile RAM: 8 complete operational profiles
Approved: Factory Mutual (FM)
