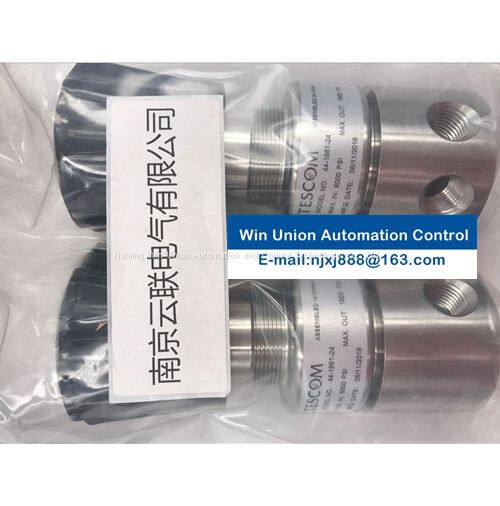

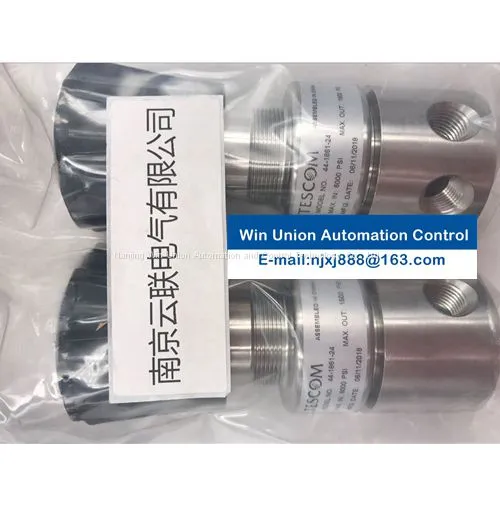

Tescom Valve 44-1861-24

Tescom Valve 44-1861-24 thumbnail-1
Tescom Valve 44-1861-24 photo-1
US$ 1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TESCOM
Place of Origin:
United States
Model Number:
Tescom pressure reducing valve 44-1861-24
Contact Supplier Request Quote Chat Now
Nanjing Win Union Automation And Control Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TESCOM
Place of Origin United States
Model Number Tescom pressure reducing valve 44-1861-24
Material Stainless Steel
Application General
Structure Diaphragm
Standard or Nonstandard Standard
Pressure High Pressure
Power Solenoid
Port Size 10
Media Gas
Temperature of Media High Temperature

Tescom pressure reducing valve 44-1861-24

Nanjing Win Union Automation and Control Technology Co., Ltd.

Sales : Tonny

skype:yluedq qq:994274685

E-mail:  njxj888@163.com

TEL: ( 86-25)-52791167   52791168

FAX: ( 86-25)-52791169



Add: Jiangning Shuanglong Avenue No.1222  Nanjing, Jiangsu. China 211100

General purpose / high pressure

Maximum inlet pressure 6000 PSIG / outlet pressure range 0-2500 PSIG

Reliable performance / economical / decompression

44-1800 Series

Technical specifications

❏ Operating parameters

Pressure rating according to ANSI/ASME B31.3

Maximum rated inlet pressure . . . . . . . . . . . . . . . . . .

Scope of export pressure . . . . . . . . . . . . . . . . . . . 0-2500 PSIG

Design test pressure. . . . . . . . . . . . . . 150 % Maximum rated pressure

Leakage . . . . . . . . . . . . . . . . . . . . . . . .

Working environment and fluid temperature . . . . . . . . . . -15° F to +165° F

(-26° C to +74° C)

Limited Data:

No exhaust valve . . . . . . . . . . . . . . . . . . . . . . Cv = 0.06

Self-venting . . . . . . . . . . . . . . . . . . . . . . . . Cv = 0.15

Maximum Working Torque . . . . . . . . . . . . . . 25 Inch·lb (2.26 Nm)

  Materials in contact with the media

Body. . . . . . . . . . . . . . . . . . . brass or 316 stainless steel

Bonnets . . . . . . . . . . . . . . . . Brass, 300 Series Stainless Steel

Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

O-rings . . . . . . . . . . . . . . . . . . . . . Viton-A®

Spare seals . . . . . . . . . . . . . . . . . . . . . . . . .

Other parts:

Brass Body . . . . . . . . . . . . Brass and 300 Series Stainless Steel

Stainless steel valve body . . . . . . . . . . . . . . . . . .

For other materials and changes, please consult the factory.

❏ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CGA 4.1 and ASTM G93

❏Pipe fittings . . . . . . . . . . . . . . . . . .

Inlet and outlet pressure gauge interface

Pressure range

Inlet pressure

6000 psig / 414 bar


Outlet pressure

0-2500 psig / 0-172 bar



Material

Body: Brass or 316 Stainless Steel

Bonnet: Brass, 300 Series Stainless Steel

Seat: Teflon®

O-Ring: Viton-A®

Back-up Ring: Teflon®

Remaining Parts

Brass Body: Brass and 300 Series Stainless Steel

Stainless body: 316 Stainless Steel



Operating temperature

-15 ° F to 165 ° F / -26 ° C to 74 ° C

Inlet / outlet size

1/4 "NPTF



flow

Non-venting: Cv = 0.06

Self-venting: Cv = 0.15



Load Type

Spring


Controller ER3026EV-1 Pressure reducing valve 26-2091A24S272

Regulator 26-1025D24Z-568 Regulating valve 44-1116-24

RS232 to RS485 interface 85061 control valve 26-1065-24-760

Power supply 82575-50 26-1065-24-760

Interface U14000 Pressure reducing valve 44-2263-241

Pressure relief valve 44-2260-942-151 Back pressure valve 44-2263-24

Pressure reducing valve 44-4660S94-018 Pressure reducing valve 44-2263-242

Pressure relief valve 26-1021-21 10000SPI back pressure valve 44-2263-24

Pressure reducing valve 26-1065-24 Pressure reducing valve 44-1123-24

Pressure reducing valve 26-1766-26 Pressure reducing valve 26-1765-24-071

Pressure reducing valve

Pressure reducing valve 26-1062-24 Pressure reducing valve 44-2263-241-008 + 8686

Pressure reducing valve 26-1063-24 Pressure reducing valve 44-1123-24-001 + 1129

Control valve type: 26-1065-24 S / N: 858260 Pressure reducing valve 54-2062D24

Regulating valve type: 26-1065-24 S / N: 890551 Pressure reducing valve 54-2063D24

Regulating valve TYPE: 26-1067-24 S / N: 877251 Pressure reducing valve 44-1126-24 SST VENTING

Control valve 44-2263-241 Pressure reducing valve 44-1116-24 BRASS VENTING

Regulating valve 26-1061-24 Pressure reducing valve 44-1316-2081-005

Regulating valve 26-1765-26 Pressure reducing valve 44-2262-242 1 / 4NPT (F)

Regulating valve 26-1764-26 Pressure reducing valve 54-2062-T24

Regulating valve 26-1766-26 Pressure reducing valve 44-1165-24-244

Regulating valve 44-1767-24 Pressure reducing valve 44-1862-24

Pressure reducing valve 26-2091A24S272 Pressure reducing valve 26-1763-24
