low voltage Copper or Aluminum 4 core 240mm2 xlpe insulated armoured electrical cable
- 500 Kilometer / Kilometers per Month
- Tianjin port Qingdao port Shanghai port
- T/T Credit Card
-
NYRY underground 4 core armoured power cable size
-
NA2XSFY single core XLPE Insulated copper wire screened 33kv power cable
-
Alumium conductor xlpe insulated copper wire screened 33 power cable
-
0.6/1kV copper or aluminum conductor XLPE insulation steel wire armored PVC sheath power cable
-
medium voltage 1x400mm2 xlpe/cws/cts/pvc/awa/pvc power cable
-
NA2XS(F)2Y xlpe insulated Copper wire shield Aluminum power cable
Product Details
Brand Name: | RNE DA | Place of Origin: | Hebei, China | Model Number: | YJV32 YJLV32 |
Type: | Low Voltage | Application: | Construction | Insulation Material: | XLPE |
Jacket: | PVC | Conductor Material: | Copper |
Product Description

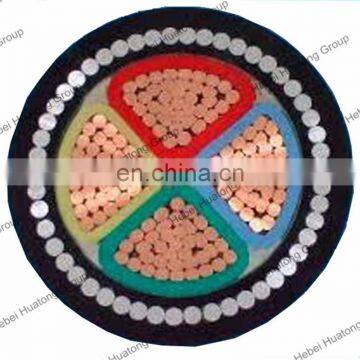

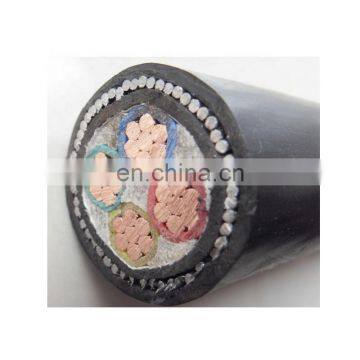

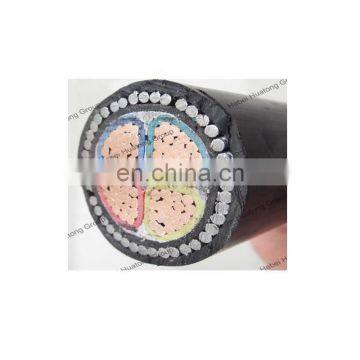

low voltage Copper or Aluminum 4 core 240mm2 xlpe insulated armoured electrical cable
1 Product Standard
This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEA standard as customer request.
2 Application
The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.
3 Operating Performance
1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90℃
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250℃
4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
6). The test voltage (A.C.): 3.5kV/5min.
7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.
4 Construction:
Conductor: Solid or stranded copper,aluminum
Insulation: Cross-linked polyethylene( XLPE or PVC)
Circuit Identification: The insulation shall be red, black
Filler: Polypropylene lament with lapped binding tape
Inner Sheath: Polyvinyl chloride (Black)
Armor: Galvanized steel wire
Core-covering: Binding tape
Outer Sheath: Polyvinyl chloride (Black)
Package: Wooden Drum Package or Iron-wooden drum
5 Type and Name
Type | Designation | Applications |
YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct. |
YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
YJV22 | Copper conductor,XLPE insulated,steel tape armoured, PVC sheathed power cable | For laying indoors,in tunnel in cable trench, or direct in ground,able to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct. |
YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured, PVC sheathed power cable | |
YJV23 | Copper conductor,XLPE insulated,steel tape armoured, PE sheathed power cable | |
YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured, PE sheathed power cable | |
YJV32 | Copper conductor,XLPE insulated,steel wire armoured, PVC sheathed power cable | For laying indoors,in tunnel cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force. |
YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured, PVC sheathed power cable | |
YJV33 | Copper conductor,XLPE insulated,steel wire armoured, PE sheathed power cable | |
YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured, PE sheathed power cable |
Standard export drum,500meters/rdum,1000meters/drum or as your requirment.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate
USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
