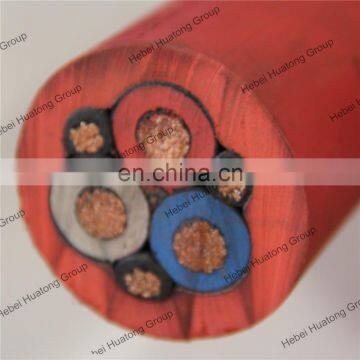

Rubber insulated flexible mining cables
1)Brief introduction
1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.
2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90℃;for the other, it is 65℃.
3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.
4 The grounding wire should be well connected with the earth.
5The cable should be prevented from exposing to the sunshine for a long time.
‚ Implemented standard
1For the non-spread combustion cable, implement GB12972 (Flexible rubber mining cable)
2For the flame-retardant cable, implement MT818(Flame-retardant cable used in the coal mine)
3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.
Rubber insulated flexible mining cables
ƒType and Name
Type |
Description |
Application |
MC-0.38/0.66 |
Rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV |
MCP-0.38/0.66 |
Shielded, rubber-sheathed flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV |
MCP-0.66/1.14 |
Shielded, rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV |
MCPJB-0.66/1.14 |
Shielded ,monitoring and braiding reinforced type, rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it can be dragged directly |
MCPJR-0.66/1.14 |
Shielded ,monitoring and braiding reinforced type, rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it must be used in the protective chain panel |
MCPT-0.66/1.14 |
Metallic shielded rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV |
MCP-1.9/3.3 |
Shielded rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV |
MCPT-1.9/3.3 |
Metallic shielded rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV |
MCPTJ-0.66/1.14 |
|
|
MCPTJ-1.9/3.3 |
Metallic shielded, monitoring type, rubber flexible cable for excavator |
As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV |
MY-0.38/0.66 |
Movable rubber flexible cable for mining |
As the power connection used in the mining machine with rated voltage 1.9/3.3kV |
MYP-0.38/0.66 |
Movable shield rubber flexible cable for mining |
As the power connection used in the mining machine with rated voltage 0.38/0.66kV |
MYP-0.66/1.14 |
Movable shield rubber flexible cable for mining |
As the power connection used in the mining machine with rated voltage 0.66/1.14kV |
MYPJ-3.6/6 |
Monitoring movable shield rubber flexible cable for mining |
As the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV |
MYPTJ-3.6/6 |
Metallic shielded monitoring type movable rubber flexible cable |
As the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV |
MYP-3.6/6 |
Movable shield rubber flexible cable for mining |
Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-20℃ |
MYPT-3.6/6 |
Movable metallic shield rubber flexible cable for mining |
Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-20℃ |
MYPD-3.6/6 |
Movable shield rubber flexible cable for mining |
Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-40℃ |
MYPTD-3.6/6 |
Movable metallic shield rubber flexible cable for mining |
Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-40℃ |
MZ-0.3/0.5 |
Driller cable for mining |
As the power connection of driller with rated voltage 0.3/0.5kV |
MZP-0.3/0.5 |
Driller shielded cable for mining |
As the power connection of driller with rated voltage 0.3/0.5kV |
MYQ-0.3/0.5 |
Movable light-type rubber flexible cable for mining |
Lighting in the mine, as the power connection of the interlock and control signals used in the transport machine and equipment |
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
