Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | H05VVC4V5-F,LiYCY,YSLY-CY | Type | Low Voltage | |
| Insulation Material | PVC | |||
| Jacket | PVC | Conductor Material | Copper |
Product Description

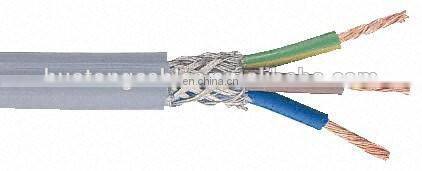

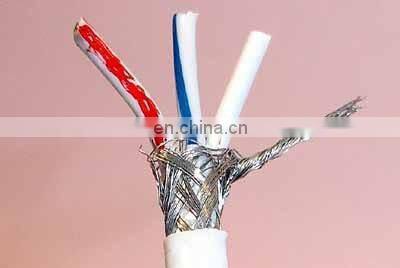

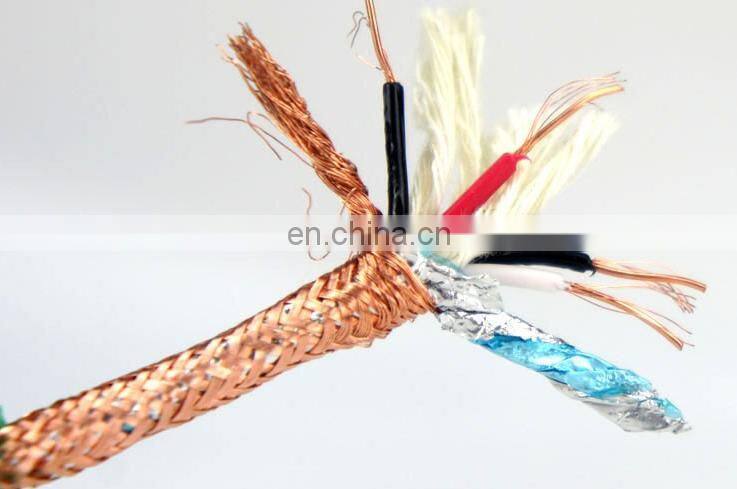

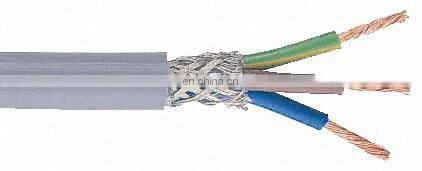

Hot sell 3 core shielded power cable with ce mark
Application
1. These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.
2. For laying in ground along route with large difference of level able
Constructions
Conductor: Class 5 fine annealed copper wires
Insulation: PVC
Shield: Al foil + tinned copper wire braiding or PVC bedding + tinned copper wire brainding
Sheath: PVC
Charactor
Voltage rating: 300/500V
Standard applied: IEC 60227, BS6500, VDE0281, GB/T 5023, JB/T8734
Max. working temp.: 70°C, can be 90°C,105°C as per requirement
Max. Short-circuit temperature of the conductor shall not be exceeding 250°C (Max. sustaing period not exceeding 5S)
Conductor: Class 5 fine annealed copper wires
Insulation: PVC
Outer sheath: PVC
Cores: 2~7 cores
Cross section area: 0.50mm2~6.0mm2
Color: Black or as per requirement
Bending radius: Not less than 15 times of the cable's OD
Test voltage: 3.5kV/5min
Packing: Wooden drum or as per requirement
Certification: ISO9001/ISO14001/OHSMS18001/CE/CB/CCC/SAA
OEM: Available
BDK cables has very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and best service.
Remark: The cable can be of flame retardance, fire resistance and environment friendly or other property
Main manufacturing procedure
Copper wire drawing and annealing
Copper wire stranding
XLPE insulation extruding
Cores twisting
Outer sheath extruding and labelling
Spooling
We have got the certificate of UL,CE,KEMA,TUV,Lloyd and“National Industrial Production License”, “Certificate of Recommended Enterprises and Products for National Grid”, “Adopting International Standard Certificate”, and “High-Tech Enterprise Certificate”, “Certificate of High Quality Products”, “Certificate of Scientific and Technological Achievements”, “Qualified Supplier Certificate”, “China Classification Society Certificate of Works Approval”, “Det Norske Veritas Type Approval Certificate”, “Railway Product Certificate”, “Safety Certificate of Approval for Mining Products”, “National Mandatory Product Certification”, “Certificate for China Compulsary Products Certification” and “Practical New-Type Patent Certificate”.
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
