10 sq mm Copper Core Pvc Insulation Flexible Wire

1mm,2mm,4mm,6mm copper core PVC insulated electric flexible wire

Conductor:high conductivity of copper class 5

Insulated material:PVC

Rated Voltage:450/750V

Standard:227IEC02, 227IEC06

Admissible long time working temperature of conductors:70 degrees.

The ambient temperature under installation should not below 0.

Impedance (ohms): 100±2ohm

Brief introduction

The PVC Insulated Wire belong to series of laying wires, which are mainly suitable for laying at the fixed places. The products is suitable for use in power installations,They are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V(UO/U).

Standard 60227IEC02,GB5023.3-97

Rated voltage   300/500V or 450/750V

300/500V Nominal section  0.3-0.4-0.5-0.75-1.0MM2

450/750V Nominal section  1.5-2.5-4-6-10MM2

H07V-K Flexible copper PVC insulated electrical wires:

Rated voltage:450/750V

Conductor:high conductivity of flexible copper

Insulation:PVC(polyvinyl chloride)

Laying place and requirement: Mainly used at middle and light style moving electronics,home applicances,power and lighting and the places where flexible required.

The general characteristics of PVC insulated wire

1. Range of Application

PVC insulated wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.

2. Service Conditions

Long term working temperature of conductor:no more than 70degrees

3.Specification size and technical data:

 table 1 to table 2

table 1                                    H05V-K 300V/500V  RV

table 2                                            H07V-K 450V/750V  RV

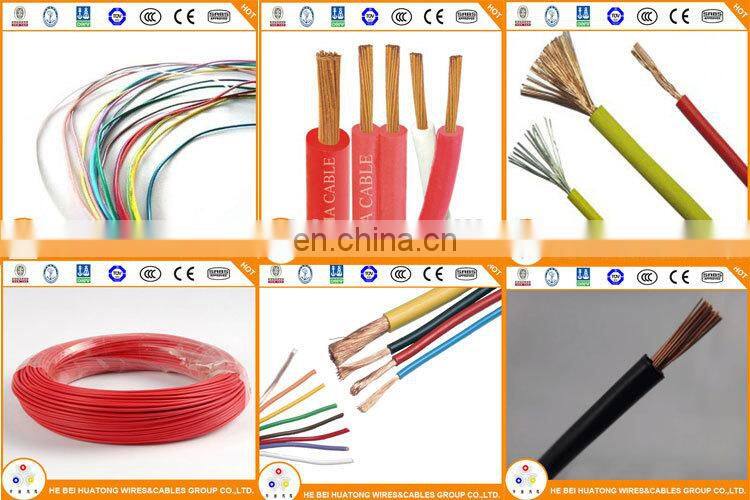

 Details Show

   Shipping & Packaging

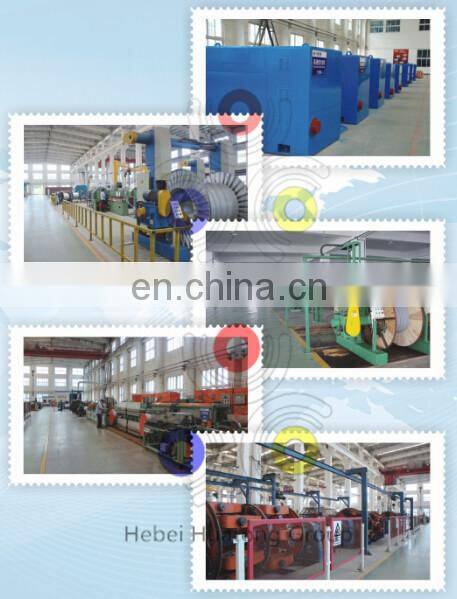

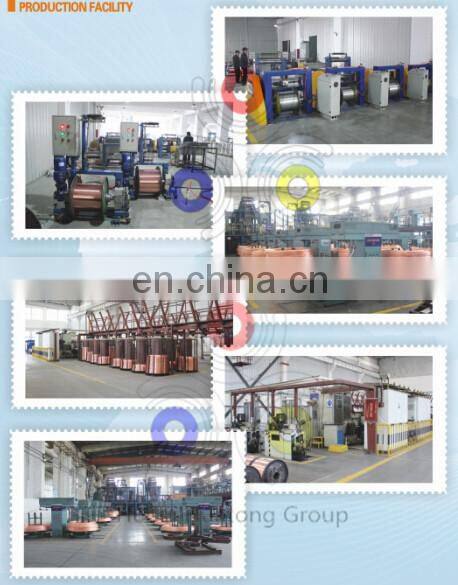

  Company Introduction

Hebei Huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese

company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

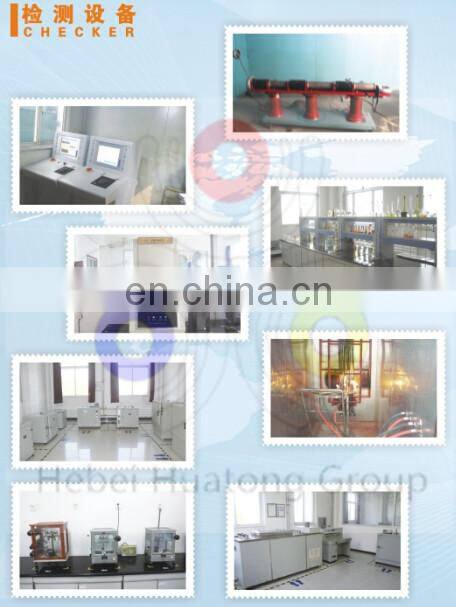

 Certification

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA,TUV,SABS,PSB,Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

  FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7

days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express

account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is

delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months

before the date you would like to get the products at your country.
