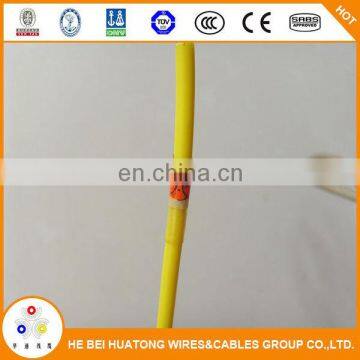

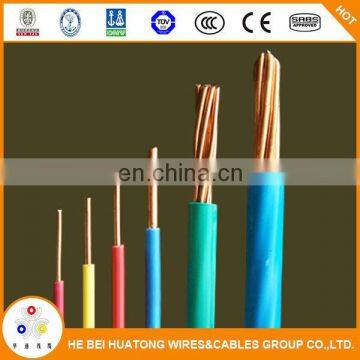

Help CenterHouse Single Solid or Stranded Copper PVC Electric WIre Cable
Related Products
-
Reliable Performance Copper UL 83 Electrical House Wiring MaterialsUS$ 0.3 - 20MOQ: 1000 Meters -
Electrical 3 Core Hdmi Flat CableUS$ 0.1 - 60MOQ: 5000 Meters
-
Fixed Installations Flat Twin and Earth 6242yUS$ 0.1 - 60MOQ: 5000 Meters
-
300/500v 450/700v 1.5-240mm2 Flexible Occ Copper Wire Red Electrical WireUS$ 0.15 - 15MOQ: 10000 Meters
-
Professional Manufacturer Lighting PVC Insulated Copper Electric Wire CableUS$ 0.1 - 60MOQ: 10 Meters
Product Description
UL certified thermoset plastic insulated 12 awg TW/THW electric wire
electric pvc wire
Copper conductor/PVC insulation
1.Volt 600V
2.Standars:UL 83
3.Certificate:UL
Electrical Wire Application:electric equipment, household, and electrical appliance
Electric Wire working condition:
Conductor: Solid or strand annealed copper or CCA wire
Insulation: Polyvinyl Chloride (PVC 75° C ), flame retardant, Suitable for use in wet or dry locations
Electric wire standard:
ASTM B3, NTC 359. :Soft copper wire.
ASTM B8, NTC 307. :Concentric Lay Stranded copper conductors.
ASTM B787. 19 :Wire Combination Unilay Stranded Copper conductors for subsequent insulation
UL 1581, NTC-3203.: Reference Standard for Electrical Wires, Cables and Flexible Cords.
UL 83, NTC-1332. :Thermoplastic insulated Wires and Cables.
Electric wire specification
| Item Spec. | AWG SIZE | No./Diameter of conductor (mm) |
Insulation thickness (mm) |
Max.outer diameter (mm) | Ref .Weight(km/kg) |
| THW-16B | 16 | 7/0.49 | 0.76 | 2.8 | 19 |
| THW-14B | 14 | 7/0.62 | 0.76 | 3.4 | 29 |
| THW-12B | 12 | 7/0.78 | 0.76 | 3.9 | 42 |
| THW-10B | 10 | 7/0.98 | 0.76 | 4.5 | 62 |
| THW-8B | 8 | 7/1.23 | 1.14 | 6 | 103 |
| THW-6B | 6 | 7/1.56 | 1.52 | 7.8 | 169 |
| THW-4B | 4 | 7/1.96 | 1.52 | 9 | 249 |
| THW-3B | 3 | 7/2.20 | 1.52 | 9.7 | 306 |
| THW-2B | 2 | 7/2.47 | 1.52 | 10.5 | 376 |
| THW-1B | 1 | 19/1.68 | 2.03 | 12.5 | 487 |
| THW-1/0B | 1/0 | 19/1.89 | 2.03 | 13.6 | 600 |
| THW-2/0B | 2/0 | 19/2.12 | 2.03 | 14.7 | 739 |
| THW-3/0B | 3/0 | 19/2.38 | 2.03 | 16 | 912 |
| THW-4/0B | 4/0 | 19/2.67 | 2.03 | 17.5 | 1130 |
| THW-16A | 16 | 1/1.29 | 0.76 | 2.9 | 19 |
| THW-14A | 14 | 1/1.63 | 0.76 | 3.2 | 27 |
| THW-12A | 12 | 1/2.05 | 0.76 | 3.6 | 39 |
| THW-10A | 10 | 1/2.59 | 0.76 | 4.1 | 59 |
| THW-8A | 8 | 1/3.26 | 1.14 | 5.6 | 98 |
Details Show
Shipping & Packaging
Company Introduction
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Certification
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express
account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
