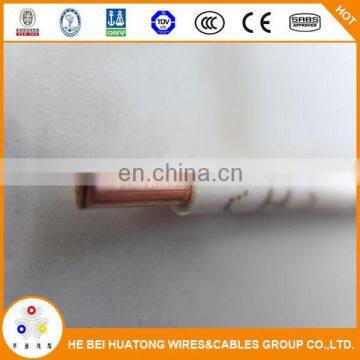

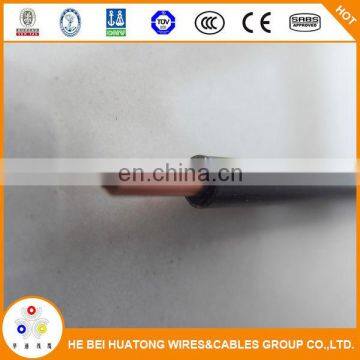

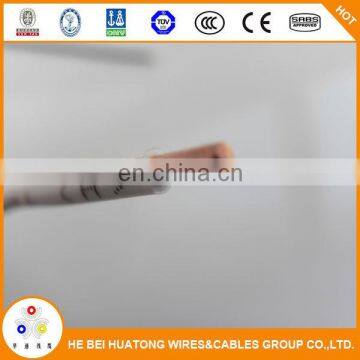

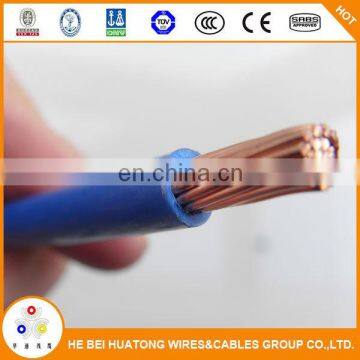

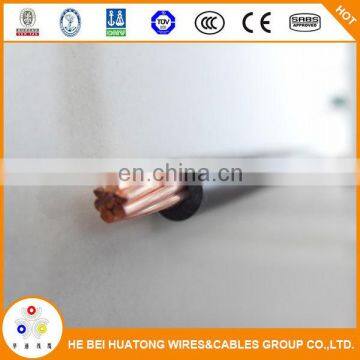

China manufacturer Annealed Copper PVC insulated Nylon jacketed wire
- 500 Kilometer / Kilometers per Month
- Tianjin port Shanghai port Qingdao port or others
- T/T Credit Card
- Nylon jacketed underground electrical wire prices
- Heat resistant 12awg pvc insulation electrical wire
- Single Core 12awg pvc insulation electric wire
- Best price 600V UL83 standard Copper conductor Nylon red jacketed 12awg 10awg THHN Wire
- Solid or strand Bare Copper electric thhn wire cable
- 300/500v 3 core 2.5mm flexible wire ,flexible electric wire with CE certificate
Product Details
Brand Name: | RNE DA | Place of Origin: | Hebei, China | Model Number: | THHN WIRE |
Insulation Material: | PVC | ||||
Conductor Material: | Copper |
Product Description
Product Description
Cu/PVC/Nylon cable wire THHN 12 AWG
Standard
The product is manufacture according to the standard of Q/320282DCE010-1999or JB/T10261-2001,and the same time is also manufactured according to the standard of IEC,English,Germany and America.
Applications
PVC insulated and Nylon jacketed wires and cables is suitable for power device with fixation installation and ratel voltage up to and including 450/750V.
Operating characteristics
Rated power – frequency voltage Uo/U:450/750V and 300/500V.
Max.admissible operating temperature of conductor:
BVN,BVNVB:70°C
BVN-90:90°C
The installation temperature should be not below 0°C
The bending radius of cable:
D≤25mm.:≥4D
D>25mm.:≥6D
(D-Diameter of the cable)
General purpose building wire for services, feeders and branch circuits.
Temperature rating not to exceed:
THHN/THWN: 90°C dry and dump, 600V
THHN/THWN: 75 °C wet or in oil, 600V
THWN-2: 90°C Dry, wet or in oil,600V
1. Application:
General purpose building wire for services, feeders and branch circuits.
Temperature rating not to exceed:
THHN/THWN: 90°C dry and dump, 600V
THHN/THWN: 75 °C wet or in oil, 600V
THWN-2: 90°C Dry, wet or in oil,600V
2. Construction:
Conductor: Annealed Copper, solid or stranded sizes 14AWG up to 1000MCM
Insulation: Premium Grade Flame Retardant Polyvinyl Chloride( PVC)
Jacket: Tough Polyamide (Nylon)
3. Standard&Test Specification:
THHN/THWN-2 Conforms to following standards:
UL83 for Thermoplastic Insulated Wire and Cables(THHN/THWN-2)
UL758 for Appliance Wiring Materials(AWM)
UL1063 for Machine Tool Wire(MTW)(Stranded Conductor Only).
Size | Section | Cu Cond. | Cond Dia. | PVC Thick | Nylon Thick | OD |
AWG /MCM | Mm2 | Wire no./mm | mm | mm | mm | mm |
14 | 2.08 | 1/1.63 | 1.63 | 0.38 | 0.1 | 2.59 |
12 | 3.31 | 1/2.05 | 2.05 | 0.38 | 0.1 | 3.01 |
10 | 5.26 | 1/2.59 | 2.59 | 0.51 | 0.1 | 3.81 |
14 | 2.08 | 19/0.38 | 1.9 | 0.38 | 0.1 | 2.86 |
12 | 3.31 | 19/0.47 | 2.35 | 0.38 | 0.1 | 3.31 |
10 | 5.26 | 19/0.6 | 3.00 | 0.51 | 0.1 | 4.22 |
8 | 8.37 | 19/0.75 | 3.75 | 0.76 | 0.13 | 5.53 |
6 | 13.3 | 19/0.95 | 4.75 | 0.76 | 0.13 | 6.53 |
4 | 21.2 | 19/1.19 | 5.95 | 1.02 | 0.15 | 8.29 |
3 | 26.7 | 19/1.33 | 6.65 | 1.02 | 0.15 | 8.99 |
2 | 33.6 | 19/1.5 | 7.5 | 1.02 | 0.15 | 9.84 |
1 | 42.4 | 19/1.68 | 8.4 | 1.27 | 0.18 | 11.3 |
1/0 | 53.5 | 19/1.89 | 9.45 | 1.27 | 0.18 | 12.35 |
2/0 | 67.4 | 19/2.12 | 10.6 | 1.27 | 0.18 | 13.5 |
3/0 | 85 | 19/2.38 | 11.9 | 1.27 | 0.18 | 14.8 |
4/0 | 107 | 19/2.67 | 13.35 | 1.27 | 0.18 | 16.25 |
250 | 127 | 37/2.09 | 14.63 | 1.52 | 0.2 | 18.07 |
300 | 152 | 37/2.29 | 16.03 | 1.52 | 0.2 | 19.47 |
350 | 177 | 37/2.47 | 17.29 | 1.52 | 0.2 | 20.73 |
400 | 203 | 37/2.64 | 18.48 | 1.52 | 0.2 | 21.92 |
500 | 253 | 37/2.95 | 20.65 | 1.52 | 0.2 | 24.09 |
600 | 304 | 61/2.52 | 22.68 | 1.78 | 0.23 | 26.70 |
750 | 380 | 61/2.82 | 25.38 | 1.78 | 0.23 | 29.40 |
1000 | 507 | 61/3.25 | 29.25 | 1.78 | 0.23 | 33.27
|
Details Show
Shipping & Packaging
Company Introduction
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Certification
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express
account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
