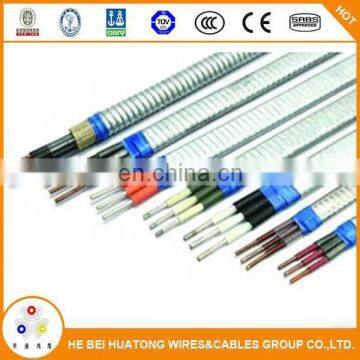

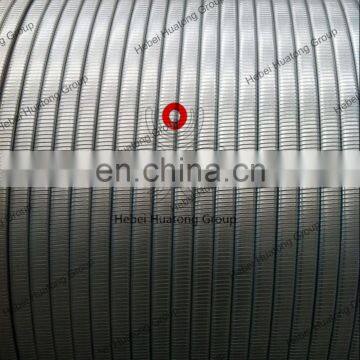

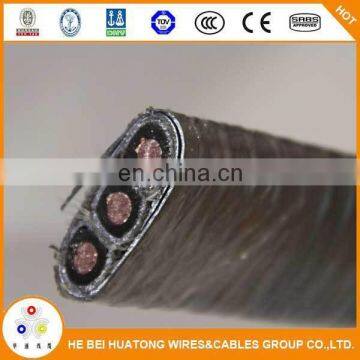

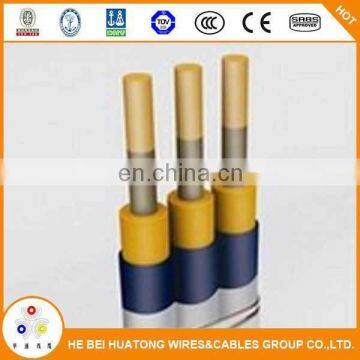

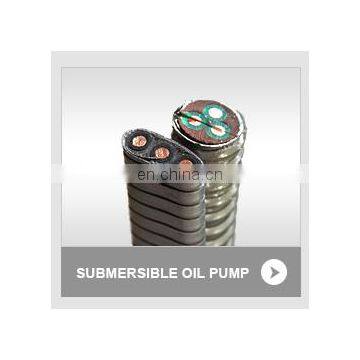

OIL FIELD SUBMERSIBLE POWER CABLE
Brief introduction
The product manufactured by us has the characteristics of advanced technology, reliable quality. The main manufacturing equipment is included the ROYLE 90 plastic extruder, the rubber continuous vulcanizing process, the interlocked armoring machine made by CEECO, Canada, the continuous sintering process imported from GRILLER, Austria, the Nokia cross-linked cable process, the advanced continuous annealing process and tinned process, etc. Now, the cable and coil end lead wire for submersible oil pump or pump unit can be produced, with different types and specifications, the cross-section of conductor is 42mm2 and below. The well temperature is from 50℃to 180℃, the max. continuous working temperature of conductor is 204℃. The insulation material that can be used is as below: PP, EPR, polyimide-F46, fluoroplastics, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lea, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc. All kinds of cables for submersible oil pump can be developed according to the customer’s requirements.
OIL FIELD SUBMERSIBLE POWER CABLE
Brief type and size
Cable type |
Description |
Max working temperature℃ |
Product range (cross section) mm2 |
QYPN |
PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
96 |
10,13,16,20,33,42 |
QYPNY |
PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
96 |
10,13,16,20,33,42 |
QYEN |
EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
140 |
10,13,16,20,33,42 |
QYENY |
EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
140 |
10,13,16,20,33,42 |
QYEE |
EPR insulated and sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
175 |
10,13,16,20,33,42 |
QYEEY |
EPR insulated and sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
175 |
10,13,16,20,33,42 |
QYEQ |
EPR insulated and lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
204 |
10,13,16,20,33,42 |
QYYEQ |
Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
232 |
10,13,16,20,33,42 |
QYYEEY |
Polyimide-F46 composite film and EPR insulated, EPR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
204 |
10,13,16,20,33,42 |
QYJEQ |
Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, lead wire for submersible oil pump |
200 |
10,13,16,20,33 |
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
