Help CenterUL 250MCM Photovoltaics Wire
Related Products
-
UL PV RHW USE-2 CableUS$ 10.00 - 15.00MOQ: 3 Kilometers -
UL83 10awg Nylon Copper WireUS$ 9.00 - 15.00MOQ: 3000 Meters
-
EN50618 Standard 2.5mm2 4.0mm2 6.0mm2 H1Z2Z2-K Solar CablesUS$ 0.88 - 14.7MOQ: 1000 Feet
-
EN50618 Standard 4.0mm2 6.0mm2 10mm2 Photovoltaic Solar H1Z2Z2-K CableUS$ 0.88 - 14.7MOQ: 1000 Feet
-
UL Certificates UL 4703 Solar Cable PV Wire for Solar Panel SystemUS$ 0.16 - 15MOQ: 500 Meters

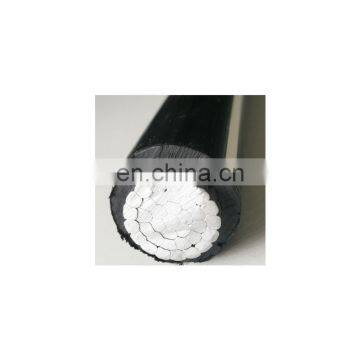

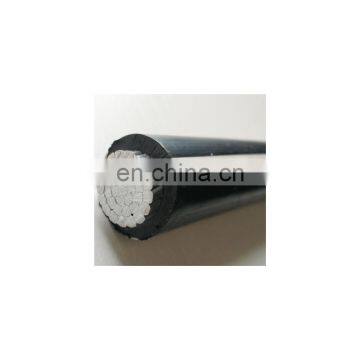

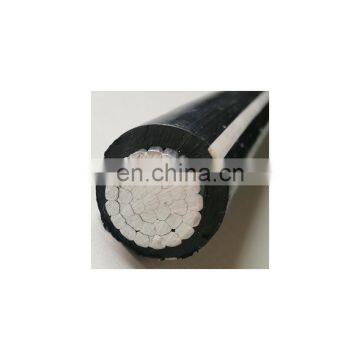

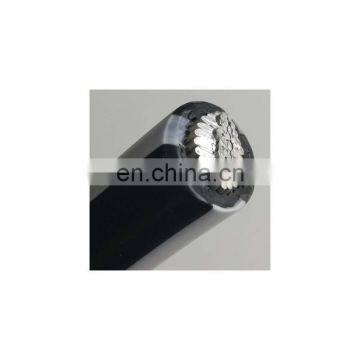

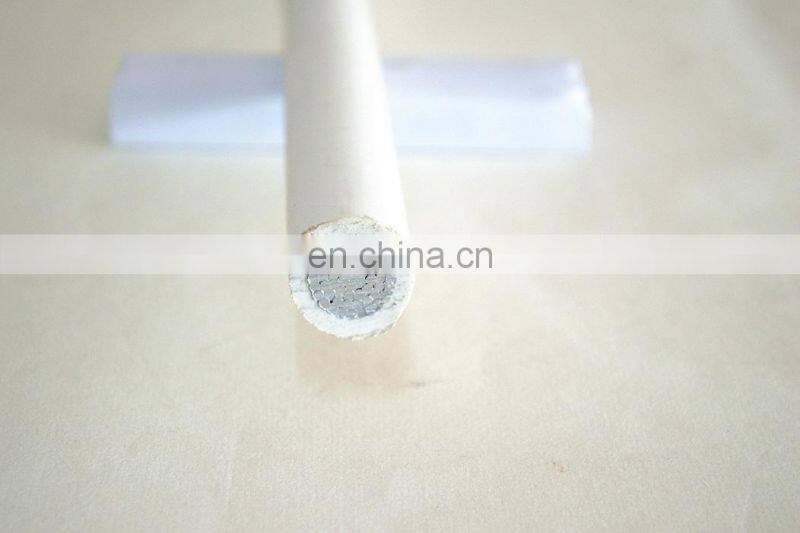

PV wire -UL4703
Conductor: 12 AWG - 2000 kcmil stranded aluminum
18 AWG - 2000 kcmil stranded copper or tinned copper
Insulation: XLPE, low smoke, halogen-free,flame retardant, oil,abrasion,
chemical cross-linked compound
Voltage rated: 600, 1000 or 2000 V
Temperature rated: 90, 105, 125 °C dry and 90°C wet.
Feature: Sunlight resistant
Flame Resistance: VW-1
Standard: UL4703 UL44 UL854
Color: Red or black
Application:
Single conductor, insulated , sunlight resistant, photovoltaic wire.This versatile single-conductor cable is designed to meet the varying needs of the Solar Industry. Applications include connection to module junction boxes; required cable routing in balance of system (BOS) integration.
|
Item# |
Conductor Size (AWG/kcmil) |
Conductor Stranding (Min.) |
Conductor Diameter (mm) |
Insulation Thickness (mm) |
Approx. Cable Diameter (mm) |
Net Cable Weight/ (kg/km) |
Nominal DC Resistance (kg/km at 20C) |
PV-2000-Al |
12 |
7 |
2.16 |
1.90 |
6.0 |
46 |
8.88 |
PV-2000-Al |
10 |
7 |
2.72 |
1.90 |
6.5 |
56 |
5.59 |
PV-2000-Al |
8 |
7 |
3.40 |
2.15 |
7.7 |
80 |
3.52 |
PV-2000-Al |
6 |
7 |
4.29 |
2.15 |
8.6 |
102 |
2.21 |
PV-2000-Al |
4 |
7 |
5.41 |
2.15 |
9.7 |
135 |
1.39 |
PV-2000-Al |
3 |
7 |
6.02 |
2.15 |
10.3 |
156 |
1.1 |
PV-2000-Al |
2 |
7 |
6.81 |
2.15 |
11.1 |
183 |
0.875 |
PV-2000-Al |
1 |
18 |
7.59 |
2.66 |
12.9 |
244 |
0.693 |
PV-2000-Al |
1/0 |
18 |
8.53 |
2.66 |
13.9 |
286 |
0.550 |
PV-2000-Al |
2/0 |
18 |
9.55 |
2.66 |
14.9 |
337 |
0.436 |
PV-2000-Al |
3/0 |
18 |
10.74 |
2.66 |
16.1 |
400 |
0.346 |
PV-2000-Al |
4/0 |
18 |
12.07 |
2.66 |
17.4 |
477 |
0.274 |
PV-2000-Al |
250 |
35 |
13.21 |
3.04 |
19.3 |
579 |
0.232 |
PV-2000-Al |
300 |
35 |
14.48 |
3.04 |
20.6 |
665 |
0.194 |
PV-2000-Al |
350 |
35 |
15.65 |
3.04 |
21.7 |
750 |
0.165 |
PV-2000-Al |
400 |
35 |
16.74 |
3.04 |
22.8 |
836 |
0.145 |
PV-2000-Al |
450 |
35 |
17.78 |
3.04 |
23.9 |
914 |
0.129 |
PV-2000-Al |
500 |
35 |
18.69 |
3.04 |
24.8 |
1028 |
0.116 |
HeBei huatong wires&cables Group Co.,ltd.
which founded in1993,covers 15,000 square meters.With 400 sets of manufacturing machines and 200 pieces of equipment available for testing and inspecting,the company's annual mannufacturi-ng capacity has reached 450 minllionUS dollars.
The enterprise has adapted international a-dvanced mannagement standards by fully implementing the accreditation of ISO9001Quality con-trol system, ISO1004 Envrionment management system,and OHSAS18001 Occupational health and safety management system.
Huatong's products which consist of 15 series of cables and tens of thousands of specifications are widely used in different key national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US,Netherlands, Italy,Russia,UK,Australia,Ethiopia,Ghaha,congo,Middle East ,and Southeast Asia.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week.
