MV-105 5kv With Red Extruded Stripes Medium Power Cable

MV-105 5kv with red extruded stripes Medium Power Cable

Top ten cable manufacturer in China
Largest cable manufacturer in north China
Annual export volume exceed 200million USD
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS  Products certifications
With TUV type testing report
Wide products range
ISO9001,ISO18001,OHSAS18001 system certifications

CNAS approval laboratory

 APPLICATIONS
Predominantly used for primary underground distribution in conduit systems; suitable for use in wet or dry locations, direct
burial, underground duct, and where exposed to sunlight. To be used at 28,000 volts or less and at conductor
temperatures not to exceed 105°C for normal operation.

SPECIFICATIONS
 Primary UD EPR/XLPE Cable meets or exceeds the following ASTM specifications:
• B3 Soft Annealed Copper Wire
• B8 Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard or Soft
• B230 Aluminum, 1350-H19 Wire for Electrical Purposes
• B231 Aluminum 1350 Conductors, Concentric-Lay-Stranded
• B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes

CONSTRUCTION

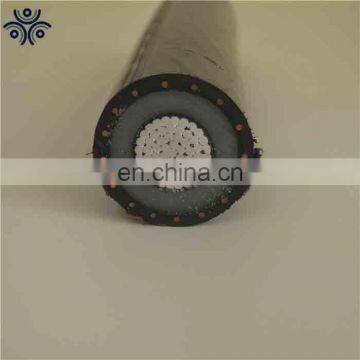

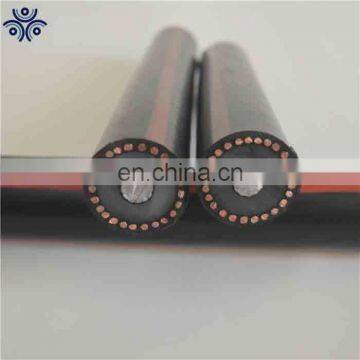

The cable is composed of a solid or moisture blocked reverse lay, compressed stranded soft drawn copper, or a solid or moisture blocked reverse lay or unilay compressed stranded 1350-H16/26 aluminum phase conductor, covered by a semi-conducting cross-linked polyethylene strand shield, an ethylene propylene rubber primary insulation or a tree-retardant cross-linked polyethylene primary insulation and a semiconducting cross-linked polyethylene insulation shield. Conductors are available with either 100% or 133% insulation levels. A concentric neutral of bare copper wires and a sunlight resistant, -40°C rated, insulating linear low density polyethylene jacket are applied over the insulation shield. The cable is identified by surface print on the jacket and with the lightning bolt symbol for supply cables indented in the jacket. Red extruded stripes available upon request. A semiconducting polyethylene jacket is also available upon request.

Hebei Huatong Wires and Cables Group Co., Ltd was established in 1993, covering an area of  230, 000 square meters. We own more than 420 sets manufacturing equipment and  250 sets of testing equipment or apparatus. Our annual production capacity is 5 billion Yuan.We have 1200 employers, among which 150  are technicians. Based on the scientific management, now we are a comprehensive, large-scale enterprises in wire and cable industry.Voltage up to 35KV, including X L P E power cables,PVC power cables, mining cables, rubber cables for general purpose, Submersible oil pump cables, solar cables, shipboard cables,lead sheath cables, aerial cables, control and instrument cables, special cables etc.Products are exported to USA, Australia, Singapore, Europe, South America, Middle East, Asia, Africa. CNAS accredited national level laboratory.

 Production workshop

Customer visit

 Standard export drum for Medium Voltage Cable

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. We also  have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,

KEMA, TUV, SABS,PBS,Bureau Veritas, Lloyd,GL,NK,KR certifications.

 We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable  and so on.

     Our laboratory center are authorized by both of ILAC (International Laboratory Accreditation Cooperation)&CNAS(China National Accreditation Service for Conformity Assessment), so the testing results in our labs can be accepted by the international countries belong to the above organizations.

1. 25 years production experience and 16 years export experience .

2.high-end  Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

    system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good  reputation.

fessional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample.

10.We can do that you expect.

(1)When can I get the price?
