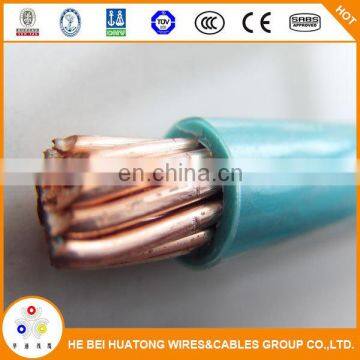

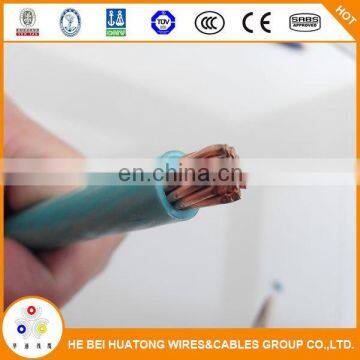

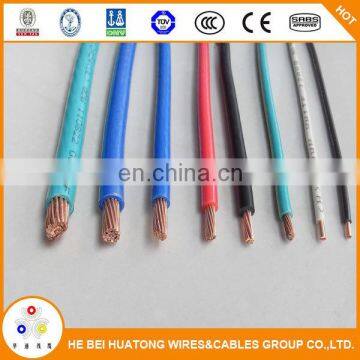

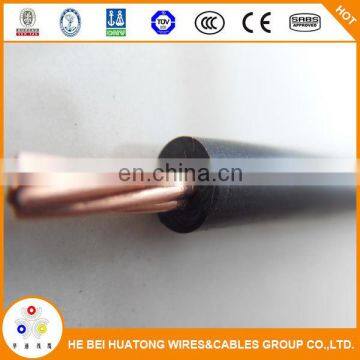

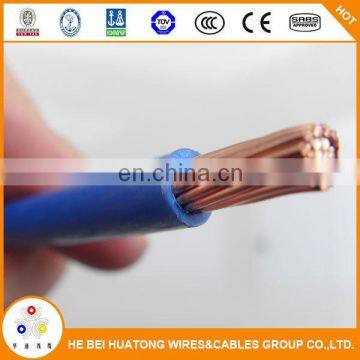

6AWG TW/THW/THW-2 Thermoplastic-insulate Wire and Cable

 TW/THW/THW-2

Conductor:

Conductors shall be solid or Class B stranded

annealed uncoated copper per UL Standard 83

Insulation:

flame-retardant, moisture- and heat-resistant thermoplastic insulation  UL Standard 83.

Color:option

STANDARDS:

1. Listed by UL as Type THW per Standard 83.

2. All sizes carry the VW-1 flame test designation.

3. Listed by UL as Oil Resistant I.

4. Listed by UL as Sunlight Resistant (250 kcmil and larger, black only)

5. 250 kcmil and larger pass UL and IEEE-383 ribbon burner flame test and are listed For CT Use.

6. Conforms to Federal Specification J-C-30B.

 CONSTRUCTION: Annealed uncoated copper conductor, PVC insulation,surface printed.

APPLICATION: General purpose wiring for lighting and power - residential,commercial, industrial buildings in accordance with the National ElectricalCode, maximum conductor temperature of 75°C in wet or dry locations,for circuits not exceeding 600 volts

When used as type TW, conductor is suitable for use in wet or dry locations at temperatures rated 60°C.

When used as type THW, conductor is suitable for use in wet or dry locations at temperatures rated 75°C.

When used as type THW2, conductor is suitable for use in wet or dry locations at temperatures rated 95°C.

  Wooden-steel Drum/Wooden Drum/Roll

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

1.22 years production experience and 13 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.
