UL1072 Single Core 2/0awg Xlpe Insulated Aluminum Conductor 15kv Cable
- Tianjin Shanghai Qingdao port
- T/T Credit Card
You May Like
-
2KV New Supply Photovoltaic Cable 300 400 500 MCM XLPE Insulation Power Cable
-
0.6KV Solar Cable 3AWG 2AWG PV Cable for Solar Power System in China
-
UL1072 Single Core 2/0awg Xlpe Insulated Aluminum Conductor 15kv URD Cable
-
UL Listed THHN THWN-2 Underwater Electrical Wire 2AWG
-
OEM Sizes Single Core Copper XLPE Insulation 700mcm Solar Wire Power Cable
-
Solar pv Cable/solar Heat Cable UL Solar Cable 4awg Made in China
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | YJLSV | Type | Medium Voltage | |
| Jacket | PVC |
Product Description
UL1072 single core 2/0awg xlpe insulated alulminum conductor 15kv cable price
Professional OEM manufacturer
Top ten cable manufactuer in China
Leading ESP cable manufacture , largest Rubber cable manufacturer in China.
With UL,TUV,KEMA,CE,BV,PSB,SABA certifications
With TUV TYPE TESTING REPORT
With ISO9001,ISO18001,OHSAS18001 syetem certifications
APPLICATIONS
URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.
SPECIFICATIONS
TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

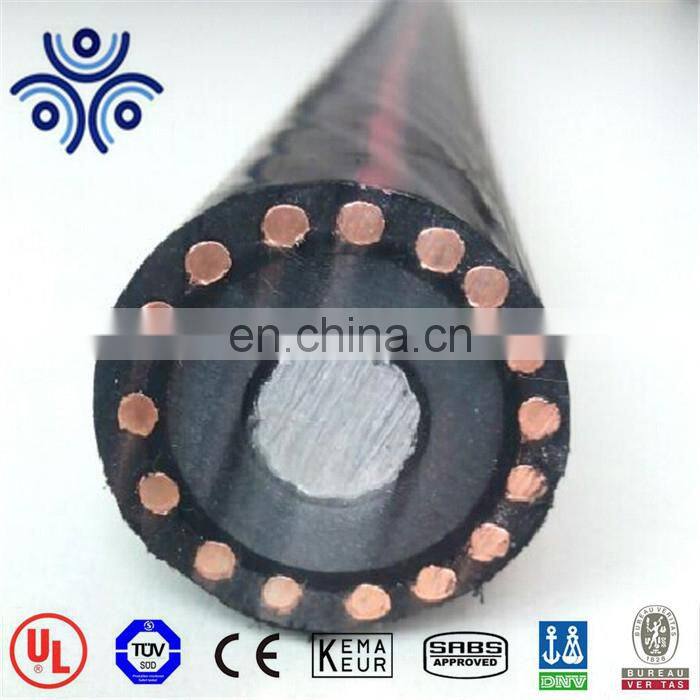

CONSTRUCTION
Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLP (TreeRetardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request
MAXIMUM CONDUCTOR TEMPERATURE
Normal continuous at 90 ℃, Overload at 130 ℃ and Short circuit at 250 ℃
FEATURES & BENEFITS, OPTIONS
- Triple extruded construction by dry curing process guarantees excellent quality of cables
- TRXLPE insulation offers proven superior life span than conventional XLPE cables
- Triplex type is optional, it brings you saving installation cost
- Strand-filled conductor & Water-blocking jacket is available upon request
DATE SHEET
| Condctor | Copper Neutral (1/3) | diameter(inch) | Weight (Pounds) | |||||||||
| AWG orMCM | Stranding | Number of Wires | SizeAWG (Solid) | Conductor | Over Insulation | Over Insul. Shield | Over Neutral Wires | Over Encaps. Jkt. | Conductor | Concentric Neutral | TotalNo Jacket | Total WithJacket |
| 1/0 | 19 wire | 9 | 14 | 0.37 | 1.12 | 1.23 | 1.35 | 1.46 | 325.8 | 119.2 | 659 | 4926 |
| 2/0 | 19 wire | 11 | 14 | 0.42 | 1.17 | 1.27 | 1.40 | 1.50 | 410.9 | 146.3 | 775 | 808 |
| 3/0 | 19 wire | 14 | 14 | 0.47 | 1.22 | 1.32 | 1.48 | 1.59 | 518.1 | 185.9 | 900 | 923 |
| 4/0 | 19 wire | 11 | 12 | 0.53 | 1.28 | 1.38 | 1.54 | 1.71 | 653.3 | 228.0 | 1110 | 1055 |
| 250 | 37 wire | 13 | 12 | 0.57 | 1.33 | 1.44 | 1.64 | 1.81 | 771.9 | 282.1 | 1330 | 1292 |
| 350 | 37 wire | 12 | 10 | 0.68 | 1.44 | 1.54 | 1.70 | 1.89 | 1081 | 398.0 | 1633 | 1519 |
| 500 | 37 wire | 17 | 10 | 0.81 | 1.57 | 1.72 | 1.88 | 2.04 | 1544 | 543.5 | 2002 | 1886 |
| 750 | 61 wire | 25 | 10 | 0.99 | 1.76 | 1.93 | 2.11 | 2.28 | 2316 | 801.5 | 2650 | 2289 |
| 1000 | 61 wire | 33 | 10 | 1.14 | 1.92 | 2.06 | 2.27 | 2.43 | 3088 | 1058 | 3847 | 2960 |
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.


(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
