UL Certified Thermoset Plastic Insulated 12 Awg TW/THW Wire
- Tianjin Qingdao or other main port
- T/T Credit Card
You May Like
-
UL Certified Thermoset Plastic Insulated 8 Awg THW Cable
-
12 Awg Thw Industrial Electrical Wire Production Line
-
UL Certificate 83 Standard Electrical Building and Housing 12 Awg Thw Wire
-
UL Listed 2x4 Mm2/2x6/2x10/2x16/2x1.5/2x2.5 mm Solar AC PV Cable
-
UL Listed 2000V 4/0 Diesel Locomotive Cable, DLO Cable
-
UL Listed 2000V 1/0 Diesel Locomotive Cable, DLO Cable
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | TW/THW wire | Type | Insulated | |
| Insulation Material | PVC | |||
Product Description

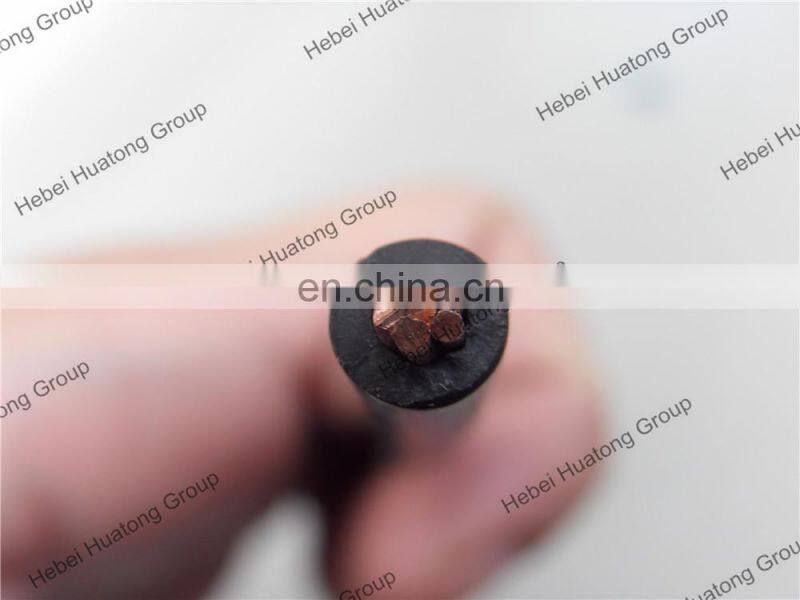

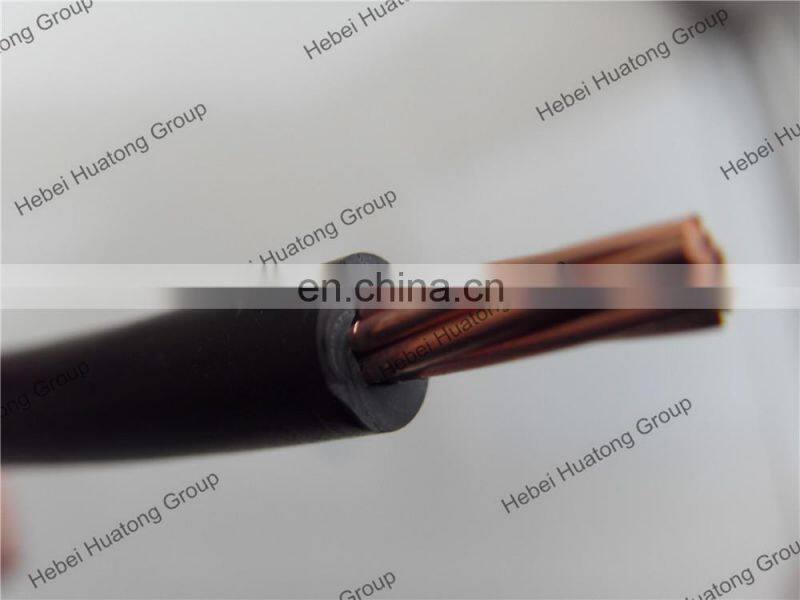

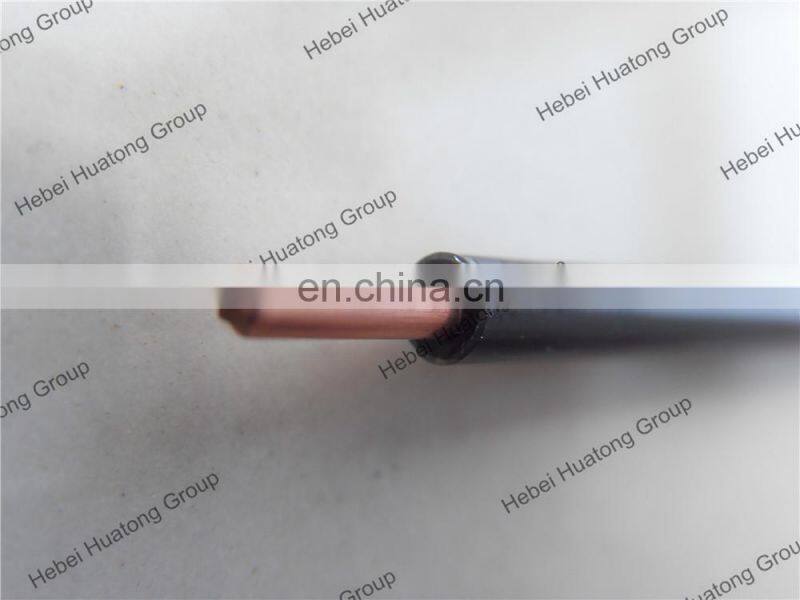

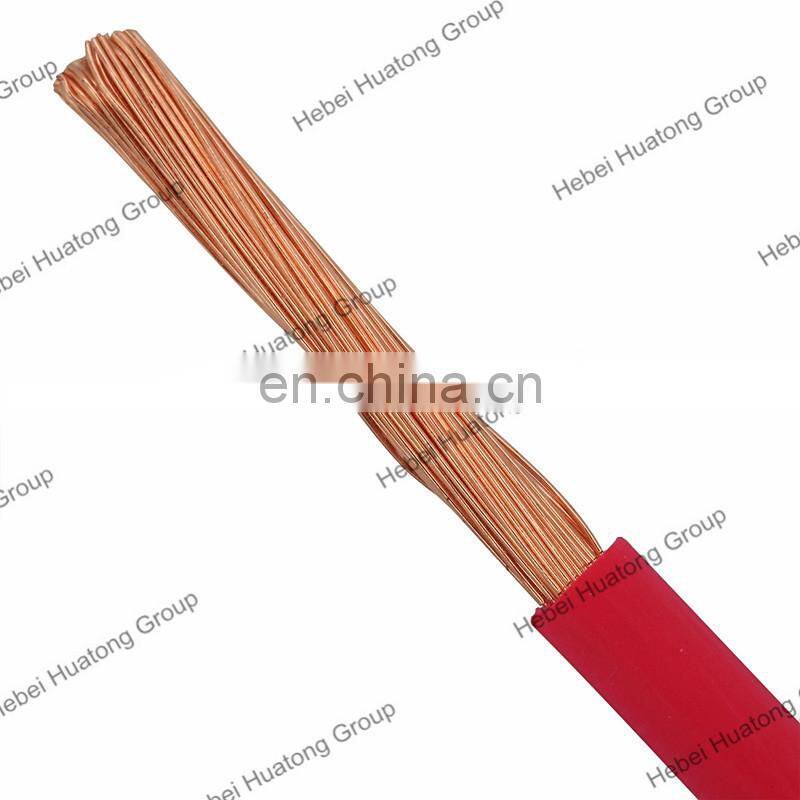

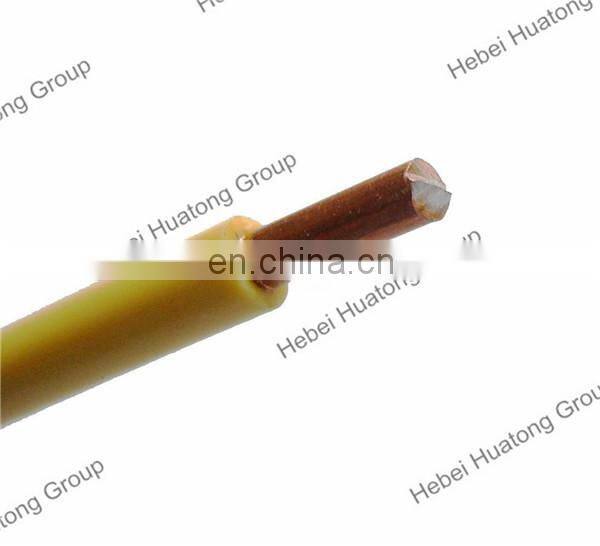

UL certified thermoset plastic insulated 12 awg THW wire
electric pvc wire
Copper conductor/PVC insulation
1.Volt 600V
2.Standars:UL 83
3.Certificate:UL
Electrical Wire Application:electric equipment, household, and electrical appliance
Electrical Wire type: (Electrial wires series include the following) :
1. Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
2. Stranded copper conductor, PVC insulated single core electrical wire
3.Solid copper conductor, PVCinsulated and PVC sheathed round multi-core electrical wire
4.Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
5.Flexible copper conductor, PVC insulated single core electrical wire
6. Flexible copper conductor, PVC insulated twin parallel electrical wire
7. Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrial wire
Electric Wire working condition:
Conductor: Solid or strand annealed copper or CCA wire
Insulation: Polyvinyl Chloride (PVC 75° C ), flame retardant, Suitable for use in wet or dry locations
Electric wire standard:
ASTM B3, NTC 359. :Soft copper wire.
ASTM B8, NTC 307. :Concentric Lay Stranded copper conductors.
ASTM B787. 19 :Wire Combination Unilay Stranded Copper conductors for subsequent insulation
UL 1581, NTC-3203.: Reference Standard for Electrical Wires, Cables and Flexible Cords.
UL 83, NTC-1332. :Thermoplastic insulated Wires and Cables.
Electric wire specification
| Item Spec. | AWG SIZE | No./Diameter of conductor (mm) | Insulation thickness (mm) | Max.outer diameter (mm) | Ref .Weight(km/kg) |
| THW-16B | 16 | 7/0.49 | 0.76 | 2.8 | 19 |
| THW-14B | 14 | 7/0.62 | 0.76 | 3.4 | 29 |
| THW-12B | 12 | 7/0.78 | 0.76 | 3.9 | 42 |
| THW-10B | 10 | 7/0.98 | 0.76 | 4.5 | 62 |
| THW-8B | 8 | 7/1.23 | 1.14 | 6 | 103 |
| THW-6B | 6 | 7/1.56 | 1.52 | 7.8 | 169 |
| THW-4B | 4 | 7/1.96 | 1.52 | 9 | 249 |
| THW-3B | 3 | 7/2.20 | 1.52 | 9.7 | 306 |
| THW-2B | 2 | 7/2.47 | 1.52 | 10.5 | 376 |
| THW-1B | 1 | 19/1.68 | 2.03 | 12.5 | 487 |
| THW-1/0B | 1/0 | 19/1.89 | 2.03 | 13.6 | 600 |
| THW-2/0B | 2/0 | 19/2.12 | 2.03 | 14.7 | 739 |
| THW-3/0B | 3/0 | 19/2.38 | 2.03 | 16 | 912 |
| THW-4/0B | 4/0 | 19/2.67 | 2.03 | 17.5 | 1130 |
| THW-16A | 16 | 1/1.29 | 0.76 | 2.9 | 19 |
| THW-14A | 14 | 1/1.63 | 0.76 | 3.2 | 27 |
| THW-12A | 12 | 1/2.05 | 0.76 | 3.6 | 39 |
| THW-10A | 10 | 1/2.59 | 0.76 | 4.1 | 59 |
| THW-8A | 8 | 1/3.26 | 1.14 | 5.6 | 98 |

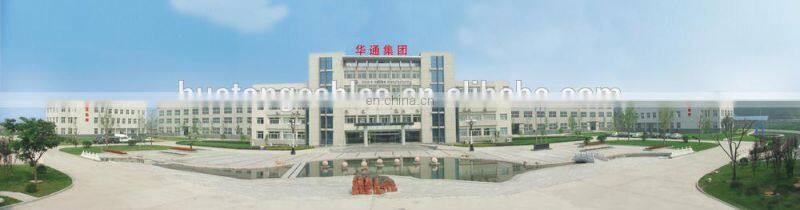

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

We have got the certificate of UL,CE,KEMA,TUV,Lloyd and “National Industrial Production License”, “Certificate of Recommended Enterprises and Products for National Grid”, “Adopting International Standard Certificate”, and “High-Tech Enterprise Certificate”, “Certificate of High Quality Products”, “Certificate of Scientific and Technological Achievements”, “Qualified Supplier Certificate”, “China Classification Society Certificate of Works Approval”, “Det Norske Veritas Type Approval Certificate”, “Railway Product Certificate”, “Safety Certificate of Approval for Mining Products”, “National Mandatory Product Certification”, “Certificate for China Compulsary Products Certification” and “Practical New-Type Patent Certificate”.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
