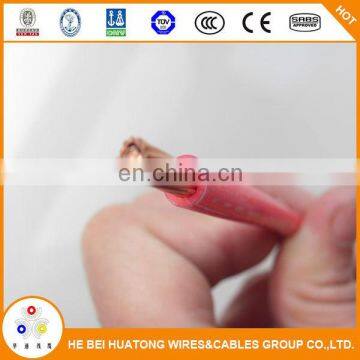

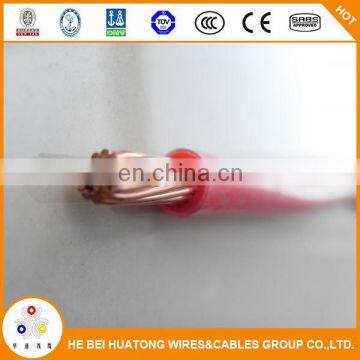

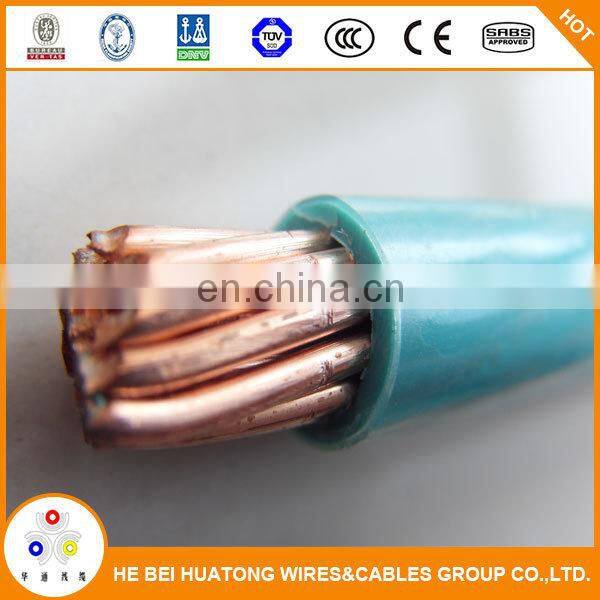

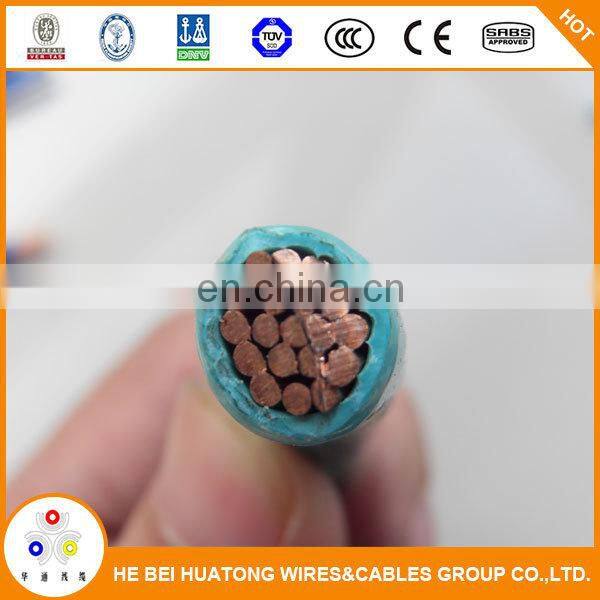

PVC Insulated and Nylon Sheathed Wire THHN THWN THNN T90 Construction Wire

THHN Cable Applications:
THHN building wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring.

THHN Cable Approvals:

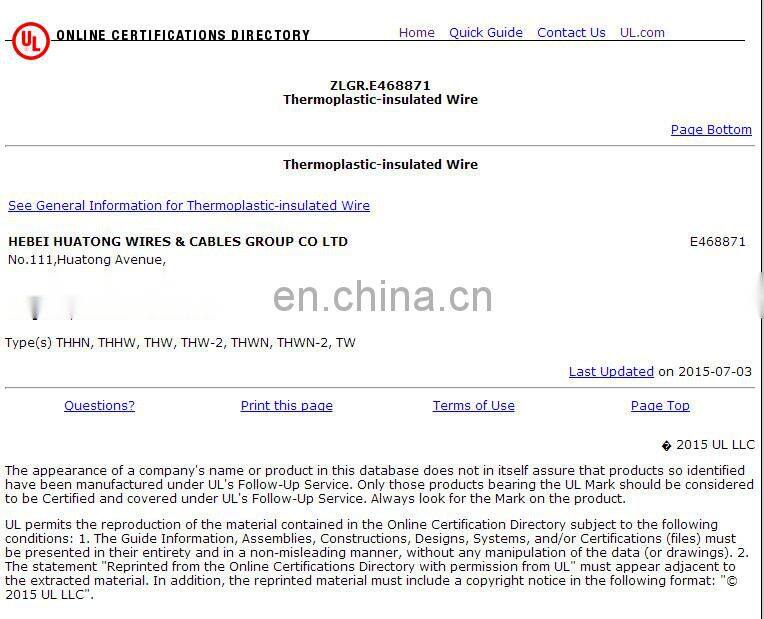

· UL listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.

· A-A-59544, NEMA WC-5, UL-758

· CSA approval upon request

THHN Cable Description:

· Conductor:Bare Copper, Soft Drawn

· Insulation:PVC

· Jacket:NYLON

· Standard Colors(denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.

· Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.

THHN Cable Ratings:

· THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V

· THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V

· MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V

· AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry, 600V

· AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V

· AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, 600V

· T90 NYLON: 60°C Oil, - Wet, 90°C Dry, 1000V

· TWN 75: - Oil, 75°C Wet, - Dry, 600V

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(5)What  cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
