Description

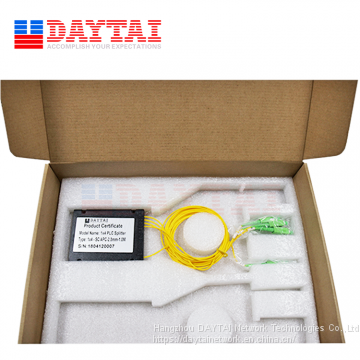

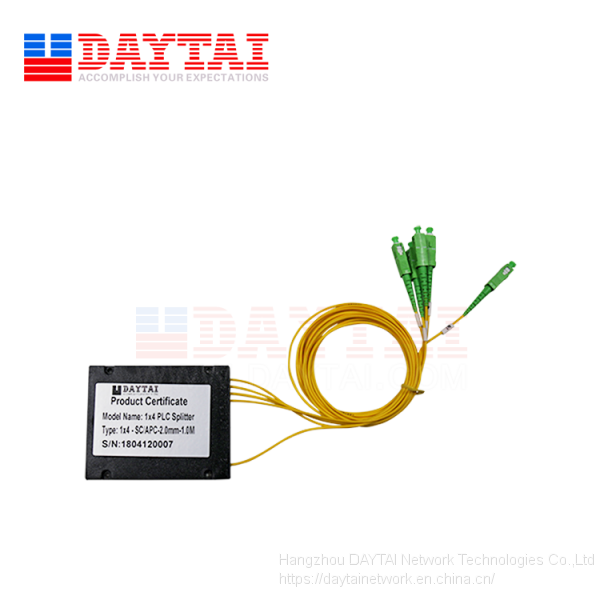

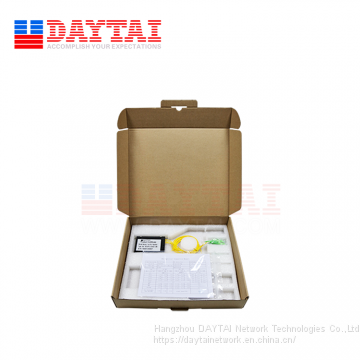

1x4 PLC Splitter Box Type ,SM fiber,OD:2.0mm or 3.0mm pigtail,1m length, With SC/APC connector.
Features
⊙FTTH
⊙Monitoring
⊙CATV System
⊙Network Protection
⊙Access/PON Distribution
Insertion Loss
- Test Wavelength： 1310-1550 nm
- Required Value：P Grade
- Test can be performed on any channel
Return Loss
- Test Wavelength： 1310-1550 nm
- Required Value：>55dB
- Test can be performed on any channel
Directivity
- Test wavelength： 1310-1550 nm
- Required Value：>55 dB
On Dependent Loss-PDL
- Test Wavelength： 1310-1550 nm
- Required Value：
ITEM |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
Operating Wavelength(nm) |
1260~1650 |
||||||||||
Insertion Loss (dB) Max. |
≤4.6 |
≤7.5 |
≤11.0 |
≤14.0 |
≤17.0 |
≤21.0 |
≤4.5 |
≤8.0 |
≤11.7 |
≤14.7 |
≤17.9 |
Loss Uniformity (dB) Max. |
≤0.6 |
≤0.6 |
≤0.8 |
≤1.2 |
≤1.5 |
≤1.8 |
≤0.8 |
≤1.0 |
≤1.0 |
≤1.5 |
≤2.0 |
PDL (dB) Max. |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return Loss (dB) |
UPC >=50; APC >=55 |
||||||||||
Directivity (dB) |
≧55 |
||||||||||
Fiber Length (m) |
1.2±0.1 , (Other Requirements Can Be Provide) |
||||||||||
Fiber Type |
Corning SMF-28e, (Other Requirements Can Be Provide) |
||||||||||
Operation Temperature℃ |
-40~+85 |
||||||||||
