Description

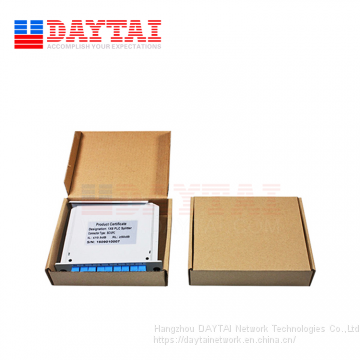

1x8 PLC Splitter Casette type,SM fiber, with SC/UPC connector.
Features
⊙FTTH
⊙Monitoring
⊙CATV System
⊙Network Protection
⊙Access/PON Distribution
Insertion Loss
- Test Wavelength： 1310-1550 nm
- Required Value：P Grade
- Test can be performed on any channel
Return Loss
- Test Wavelength： 1310-1550 nm
- Required Value：>55dB
- Test can be performed on any channel
Directivity
- Test wavelength： 1310-1550 nm
- Required Value：>55 dB
On Dependent Loss-PDL
- Test Wavelength： 1310-1550 nm
- Required Value：
ITEM |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
Operating Wavelength(nm) |
1260~1650 |
||||||||||
Insertion Loss (dB) Max. |
≤4.6 |
≤7.5 |
≤11.0 |
≤14.0 |
≤17.0 |
≤21.0 |
≤4.5 |
≤8.0 |
≤11.7 |
≤14.7 |
≤17.9 |
Loss Uniformity (dB) Max. |
≤0.6 |
≤0.6 |
≤0.8 |
≤1.2 |
≤1.5 |
≤1.8 |
≤0.8 |
≤1.0 |
≤1.0 |
≤1.5 |
≤2.0 |
PDL (dB) Max. |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return Loss (dB) |
UPC >=50; APC >=55 |
||||||||||
Directivity (dB) |
≧55 |
||||||||||
Fiber Length (m) |
1.2±0.1 , (Other Requirements Can Be Provide) |
||||||||||
Fiber Type |
Corning SMF-28e, (Other Requirements Can Be Provide) |
||||||||||
Operation Temperature℃ |
-40~+85 |
||||||||||
Hangzhou DAYTAI Network Technologies Co.,Ltd is a high-tech enterprise specializing in research development, production in GEPON products,fiber optic communication (FTTH),Digital TV,Cable TV ,Ethernet Networking. Our company was established in 2013 in Hangzhou City,Zhejiang Province,China. We devote to making research and delveloping the newest equipements in the Telecommunication Industry. Constantly screen the Chinese fiber optic and CATV equipment market in a search of the most efficient product solutions available to satisfy your needs. Our major markets includes Chinese mainland , United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, the Philippines, South Africa ,Indonesia,Mexico, Brazil and other countries.
FAQ
Q1: What's the lead time?
Re: Generally about 15-20 days after order confirmed, it depends one the order quantity.
Q2: Can you send sample?
Re: Yes, but the shipping cost will be paid by you, please contact us for more details.
Q3: What's your payment terms?
Re: 30% in advance, 70% before shipping.
Q4: What's the payment method?
Re: T/T, Western Union, Paypal, etc.
Q5: How to ship products?
Re: DHL, UPS, Fedex, TNT, EMS, air transport, ocean shipping.
