Hot sell PP media water filter cartridge for large flow rate with Good quality

Name: Hot sell PP media water filter cartridge for large flow rate with Good quality
Brand: pall
Availability: InStock

FOB Price

USD $35 - $40 / Piece

10 Pieces(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port Qingdao, Shanghai, Shenzhen, Guangzhou etc
Payment TermsT/T L/C PayPal Other
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

pall

Place of Origin

China

Product Description

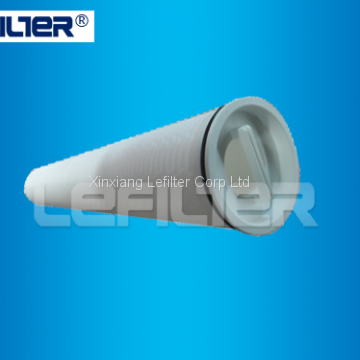

Hot sell PP media water filter cartridge for large flow rate with Good quality

This filter has a large diameter or 6 "/ 152mm, and there is no central support skeleton,the opening at one end, the
filtered liquid flow from the inner to outer.The large diameter of the filter design and its increasing of effective filtration
area can significantly reduce the number of the filter cartridge and smaller housing size, investment and labor costs can
be reduced in many applications due to the large flowment and long service life.

Tapered pore bodies
Filtered water, a filter flow rate of up to 110 cubic meters
The size of the filtration system can be reduced by 50%
Length of 20"/ 508 mm, 40" / 1016 mm and 60" / 1524 mm is available

-- Prefiltration of RO, Pretreatment of sea water desalination
-- Condensate water filtration, hot water recovery in power generation
-- API, solvents, and water filtration in BioPharm market
-- The filtration of bottled water, high Fructose, edible oil, soft drinks, and milk
-- Paints and coatings, Petrochemical, Refineries
-- Microelectronics, film, fiber and resin

Dimensions

-Outside Diameter: 6 inch(152mm)
-Length: 20 inch(528mm)
40 inch(1022mm)
60 inch(1538mm)

Material Of Constructions

-Filter media: Pleated glass fiber ,
Pleated depth Polypropylene (PP)
PP Melt blown
-Support/Drainage: Polypropylene (PP)
-End caps : Glass fiber reinforced Polypropylene
-Seal Material :EPDM, NBR

Performance

Removal Rating: 1, 4.5, 6, 10,20,40,70,100µm

Maximum Operating Temperature: Pleated glass fiber:121°C;
Pleated PP: 82°C;
Melt Blown PP: 65°C

Maximum Differential Pressure: Pleated glass fiber:3.4 Bar at 121°C
Pleated PP: 3.4Bar at 82°C;
Melt Blown:1.03Bar at 65°C

Recommended Change out Differential Pressure:2.4Bar at 20°C.

Suggested maximum Flow of water: 20 inch length:660LPM;
40 inch length:1,300LPM;
60 inch length:1,900LPM
