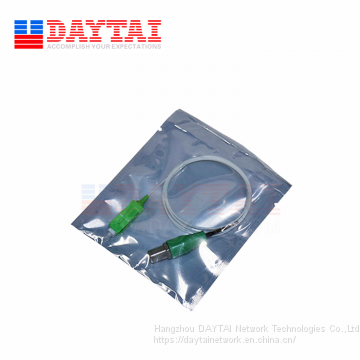

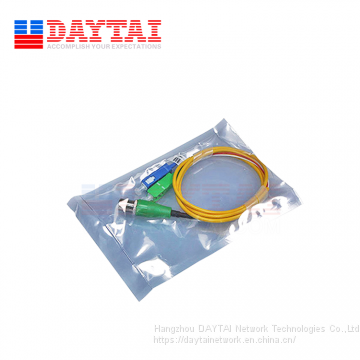

Help CenterPassive 1 Way FTTH Fiber Optical Receiver Node for CATV Digital TV
Related Products
-
Mini Passive FTTH WDM (CATV+PON) Fiber Optical Receiver Node for Digital TVUS$ 1 - 19MOQ: 100 Pieces -
1550nm Active FTTH WDM (CATV+PON) Optical Receiver Node for CATV Digital TVUS$ 1 - 19MOQ: 100 Pieces
-
F Male Passive 1 Way FTTH Mini Optical Converter Receiver Node for CATV Digital TVUS$ 1 - 9MOQ: 100 Pieces
-
F Female Passive 1 Way FTTH Mini Optical Converter Receiver Node for CATV Digital TVUS$ 1 - 9MOQ: 100 Pieces
-
1550nm Passive FTTH WDM (CATV+PON) Optical Receiver Node for CATV Digital TVUS$ 1 - 9MOQ: 100 Pieces
Description

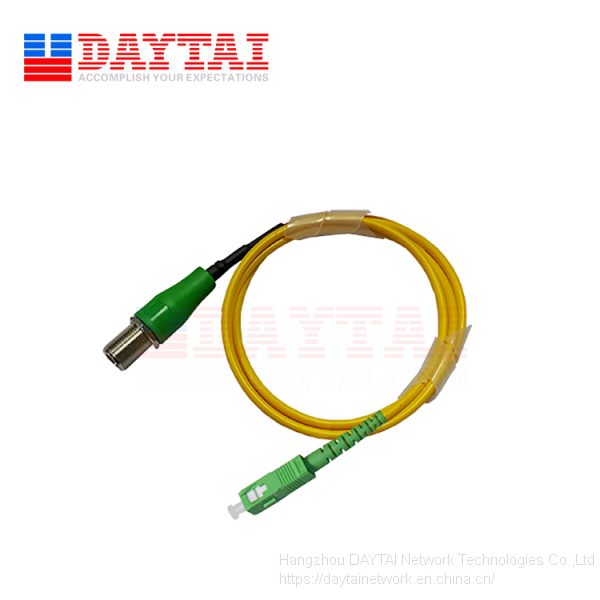

Passive 1 Way FTTH Optical Converter patch cord type for Digital TV,input Optical Power:0~-18dbm,Optical Return Loss:>45db,Optical Receiver Wavelength:1100~1600 nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F Female connector,Dimensions:36*13mm,Net weight:0.016KG.
Features
⊙No Power Required
⊙Good Linearity and Flatness
⊙Much smaller size and very easy install
⊙PVC Casing (Black & Green Color for optional)
⊙Designed For FTTH (Fiber To The Home Network)
⊙Frequency range 40-1000MHz For CATV End-users
⊙Optical Connector: SC/APC (Patch Cord type package PD)
Number Item |
Description |
Remark |
Customer Interface | ||
RF Connector |
75Ω”M” connector |
|
Optical Connector |
SC/APC |
Can be Customized |
Optical Parameter | ||
Input Optical Power |
0~-18 dBm |
Digital TV |
Optical Retum Loss |
>45db |
|
Optical Receiver Wavelength |
1100~1600 |
|
Optical Fiber Type |
Single Mode |
|
RF Parameter | ||
Frequency Range |
40-1000 MHz |
|
Flatness |
±0.5db |
|
Output Level |
70dbuV |
0dbm optical input power |
Output Impedance |
75Ω |
|
C/N |
52dbc |
0dbm optical input power |
Other Parameter | ||
Power Input Voltage |
0 VDC |
|
Power Consumption |
N/A Ma |
|
Dimensions |
36*13mm |
|
Net weight |
0.016KG |
|
Hangzhou DAYTAI Network Technologies Co.,Ltd is a high-tech enterprise specializing in research development, production in GEPON products,fiber optic communication (FTTH),Digital TV,Cable TV ,Ethernet Networking. Our company was established in 2013 in Hangzhou City,Zhejiang Province,China. We devote to making research and delveloping the newest equipements in the Telecommunication Industry. Constantly screen the Chinese fiber optic and CATV equipment market in a search of the most efficient product solutions available to satisfy your needs. Our major markets includes Chinese mainland , United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, the Philippines, South Africa ,Indonesia,Mexico, Brazil and other countries.
FAQ
Q1: What's the lead time?
Re: Generally about 15-20 days after order confirmed, it depends one the order quantity.
Q2: Can you send sample?
Re: Yes, but the shipping cost will be paid by you, please contact us for more details.
Q3: What's your payment terms?
Re: 30% in advance, 70% before shipping.
Q4: What's the payment method?
Re: T/T, Western Union, Paypal, etc.
Q5: How to ship products?
Re: DHL, UPS, Fedex, TNT, EMS, air transport, ocean shipping.
