F Male Passive 1 Way FTTH Mini Optical Converter Receiver Node for CATV Digital TV

Name: F Male Passive 1 Way FTTH Mini Optical Converter Receiver Node for CATV Digital TV
Brand: DAYTAI
Price: USD $1 - 9 / Piece

FOB Price

USD $1 - $9 / Piece

100 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card PayPal Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

DAYTAI

Place of Origin:

China

Model Number:

DT-POR-AM/AMWF

Product Description

Description

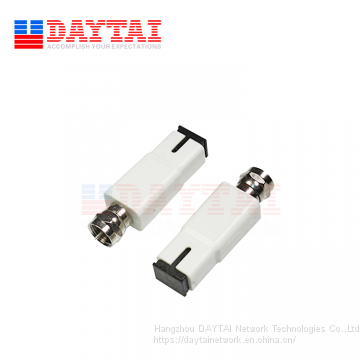

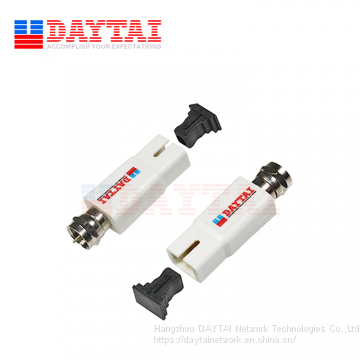

Passive 1 Way FTTH Optical Converter for Digital TV,input Optical Power:0~-18dbm,Optical Return Loss:>45db,Optical Receiver Wavelength:1100~1600 nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F Male connector,Dimensions:49*16* 12 mm,Net weight:0.01KG.

Features

⊙No Power Required

⊙Optical Connector: SC/APC

⊙With RF Shielding Protection

⊙Exelent Linearity and Flatness

⊙Small and Cute Design for Easy Handling

⊙PVC Casing ( Actractive customized case colours)

⊙Designed For FTTH (Fiber To the Home Network

⊙Frequency range 40-1000MHz For CATV End-users

⊙Lensed protection and high responsivity PD for more performance

ltem		Description	Remark
Customer Interface
RF connector		75Ω F-“Male” connector
Optical Connector		SC/APC	Can be Customized
Optical Parameter
input Optical Power		0~-18dbm		Digital TV
Optical Return Loss		>45db
Optical Receiver Wavelength		1100~1600 nm
Optical Fiber Type		Single Mode
RF Parameter
Frequency Range		40-1000MHZ
Flatness		±0.5db
Output Level	70 dbuV	0dbm optical input power
Output lmpedance	75Ω
C/N	52 dbc	0dbm optical input power
Other Parameter
Power lnput Voltage		0 VDC
Power Consumption		N/A MA
Dimensions		4916 12 mm
Net weight		0.01KG

Hangzhou DAYTAI Network Technologies Co.,Ltd

Hangzhou DAYTAI Network Technologies Co.,Ltd is a high-tech enterprise specializing in research development, production in GEPON products,fiber optic communication (FTTH),Digital TV,Cable TV ,Ethernet Networking. Our company was established in 2013 in Hangzhou City,Zhejiang Province,China. We devote to making research and delveloping the newest equipements in the Telecommunication Industry. Constantly screen the Chinese fiber optic and CATV equipment market in a search of the most efficient product solutions available to satisfy your needs. Our major markets includes Chinese mainland , United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, the Philippines, South Africa ,Indonesia,Mexico, Brazil and other countries.

FAQ

Q1: What's the lead time?
Re: Generally about 15-20 days after order confirmed, it depends one the order quantity.

Q2: Can you send sample?
Re: Yes, but the shipping cost will be paid by you, please contact us for more details.

Q3: What's your payment terms?
Re: 30% in advance, 70% before shipping.

Q4: What's the payment method?
Re: T/T, Western Union, Paypal, etc.

Q5: How to ship products?
Re: DHL, UPS, Fedex, TNT, EMS, air transport, ocean shipping.
