C66YQ-8tons Fully Hydraulic Open Die Forging Hammer

Name: C66YQ-8tons Fully Hydraulic Open Die Forging Hammer
Brand: ANYANG FORGING PRESS
Price: CNY $6600000 - 6900000 / Set

FOB Price

CNY 6600000 - 6900000 / Set

99 Sets(Min.Order)

Supply Ability 99 Set / Sets per Month
Port tianjin
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail:90 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	ANYANG FORGING PRESS	Place of Origin:	China	Model Number:	C66YQ-8
Certification:	ISO90001,CE	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	1 year
Weight:	8500KG	Dimension(LWH):	7500×2800×9500	Condition:	New
Voltage:	220V,380V	Power(W):	55×8kw

Product Description

Product Features

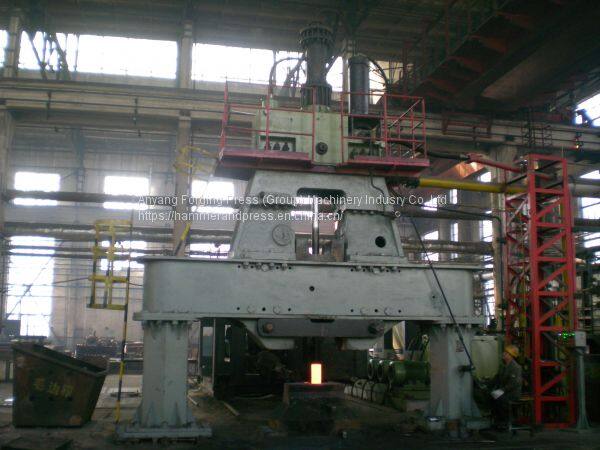

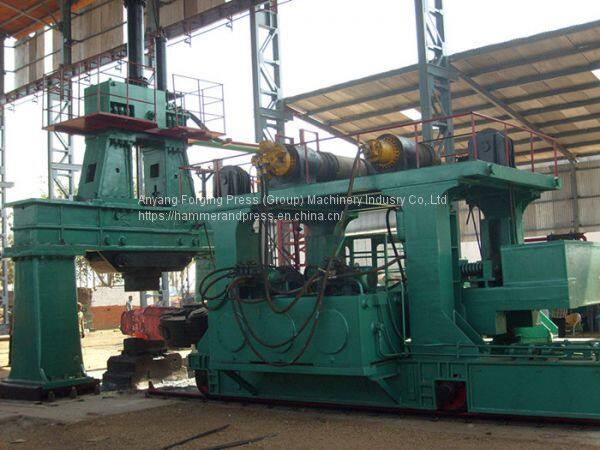

C66 series electro hydraulic forging hammer is a open die forging hammer that adopt hydraulic pressure-nitrogen gas driven. It have bridge type and arch type. Upper chamber of hammer rod piston is nitrogen gas, lower chamber is hydraulic oil. It can realize hitting by controlling the oil of lower chamber. It is used all kinds of open die forging.

Electro-hydraulic Open Die Forging Hammer is widely accepted in modern open die forging plants, suitable for producing various open die forgings, such as shaft forgings, ring forgings, gear blanks, flanges etc.

Product Features

1. Energy saving and environmental protection.
2. High speed and high efficiency blowing increases production efficiency.
3. X type guide rails guarantee strong anti deviated loading ability.
4. Auto lubricating of guide rails.
5. PLC control, immediately starting and immediately apply into forging production.
6. Safety and easy operating by hand lever.
7. High efficiency cooling for hydraulic oil, which guarantee 8 hours non-stop production.

The main technical parameters of arch type hydraulic open die forging hammer ( double arm)
Item	Unit	C66-35 (1T)	C66-35 (1T)	C66-70 (2T)	C66-120 (3T)	C66-140 (4T)	C66-175 (5T)
Item	Unit	C66-35 (1T)	C66-35 (1T)	C66-70 (2T)	C66-120 (3T)	C66-140 (4T)	C66-175 (5T)
Hit energy	KJ	35	35	70	120	140	175
Rated weight of falling parts	kg	1300	1300	2600	4200	4800	6000
Maximumstroke	mm	1000	1000	1260	1450	1500	1730
Hitfrequency	min-1	50-58	65-75	65-75	50-55	50-60	45-50
Main oil pump	type	A2F160R2P3	A2F125R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P3
Main motor type		Y250M-4-B35	Y250M-4-B35	Y250M-4-B35	Y250m-4-B35	Y250m-4-B35	Y280s-4-B35
Main motorpower	kW	55	45	55	55	55	75
Motor/pump number	set	1	2	3	4	5	5
Electric-cooler type	type	YLD400	YLD400	YLD800	YLD1200	YLD800x2	YLD800x2
Electric-cooler capacity	Kcal/h	40000	40000	80000	120000	80000x2	80000x2
Electric-cooler power	kW	19	19	38	60	38x2	38x2
Guide space	mm	460	460	550	630	630	760
Working area (WxH)	mm	1800x1250	1800x1250	2300x1380	2700x1470	2700x1470	3700x2000
Lower die surface height above ground	mm	750	750	750	760	760	880
Machine outside size (LxWxH)	mm	3600x 1500x 6000	3600x 1500x 6000	4500x 1700x 6500	5100x 2300x 7500	5100x 2300x 7800	6300x 2700x 8500
Oil tank outside size (LxWxH)	mm	2000x 1500x 1300	2000x 1500x 1300	2700x 2000x 1600	3600x 2000x 1600	4500x 2000x 1600	4500x 2000x 1600

Item	Unit	C66-210 (6T)	C66-245 (7T)	C66-280 (8T)	C66-350	C66-420	C66-490
Item	Unit	C66-210 (6T)	C66-245 (7T)	C66-280 (8T)	(10T)	(12T)	(14T)
Hit energy	KJ	210	245	280	350	420	490
Rated weight of falling parts	kg	7000	7600	8500	10500	12500	14500
Maximumstroke	mm	1850	2000	2200	2400	2500	2600
Hitfrequency	min-1	45-50	46-50	45-50	44-46	42-45	42-45
Main oil pump	type	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P2	A2F160R2P2	A2F160R2P2
Main motor type		Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35
Main motorpower	kW	75	75	75	75	75	75
Motor/pump number	set	6	7	7	10	12	16
Electric-cooler type	type	YLD1000x2	YLD1000x2	YLD1000x2	YLD1200x2	YLD1200x2	YLD1200x2
Electric-cooler capacity	Kcal/h	100000x2	100000x2	100000x2	120000x2	120000x2	120000x2
Electric-cooler power	kW	54x2	54x2	54x2	60x2	60x2	60x2
Guide space	mm	890	890	980	980	1050	1050
Working area (WxH)	mm	3700x2150	4200x2200	4700x2250	4800x2350	5000x2500	5000x2500
Lower die surface height above ground	mm	880	900	900	900	900	900
Machine outside size (LxWxH)	mm	6300x 2700x 8800	7000x 2700x 9100	7500x 2800x 9500	7500x 2800x 10000	7600x 3000x 12000	7600x 3000x 13000
Oil tank outside size (LxWxH)	mm	5400x 2000x 1600	6300x 2000x 1600	6300x 2000x 1600	9000x 2000x 1600	10800x 2000x 1600	2x7200x 2000x 1600

Company Profile

Anyang Forging Press (Group) Machinery Industry Co.,Ltd company is the biggest and the best manufacturer of forging equipments and forging auxiliary machines in China. Besides, we also specialized in manufacturing hydraulic briquette presses, baling presses for metal scrap processing and Hydraulic Riveting Machines in truck/bus chassis riveting field. Our company now covers an area of about 80 acres. We have 1600 staff members, among whom there are 210 technicians. Our workshops have more than 300 sets of excellent manufacturing equipments. Our company has small part machining workshops, large part machining workshops, heat treatment workshops, riveting and forging workshops, assembly workshops and so on 16 departments.

Our main products include CNC Fully Hydraulic Die Forging Hammers, Electro Hydraulic Open die Forging Hammers, Electro Hydraulic Die Forging Hammers, Hydraulic Open die Forging Press, Pneumatic Forging Hammers, Forging Manipulators, Forging Chargers, Ring Rolling Machines, Hydraulic Briquette Presses, Hydraulic Baling Presses and Hydraulic Riveting Machines.
