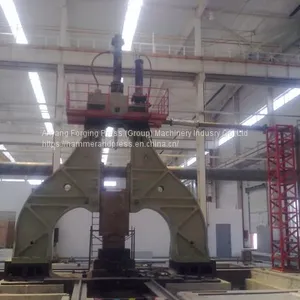

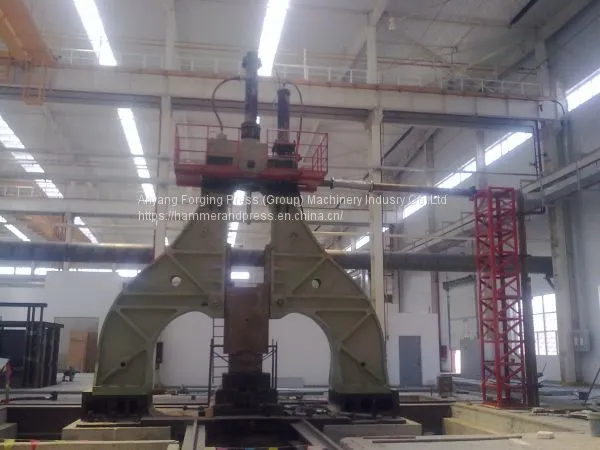

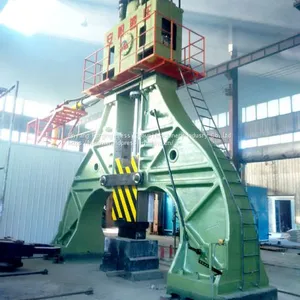

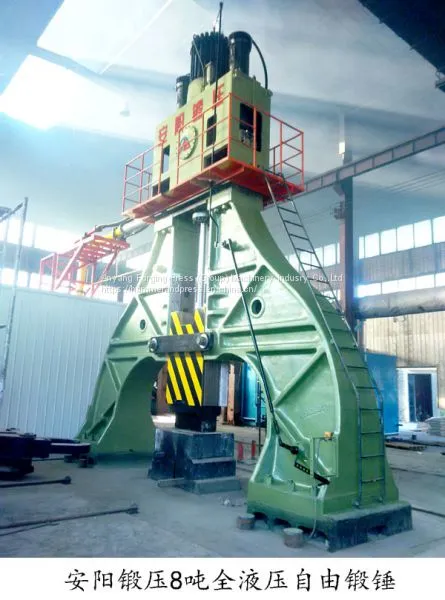

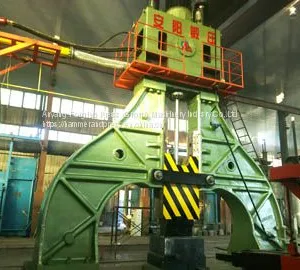

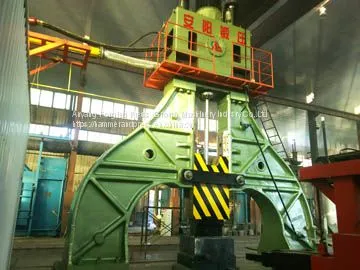

C66-175(5T) Electricity Saving Hydraulic Open Die Forging Hammer for Rings,valve

1.Energy conservation and environmental protection

The electro hydraulic forging hammer can save above 80-90% energy than steam hammer which is the common understanding of personage of machinery industry. It doesn't need boiler, removes smoke pollution, this improves worker's working condition, so that the electro hydraulic forging hammer is a product protecting environment, a replacred product of steam hammer.

2. Operation convenience, labor saving and the action flexibility and stability

The operating system is simple, you can operate it by one hand or one feet to do hit, return, up slowly, scram, hanging hammer and other action needed by forging process, this is similar to steamed hammer, but it is more labor saving and action flexibility and stability than steam hammer.

3. System work safety, it has safety locking motion

Hydraulic system adopts motor pump unit, electric control unloading valve, accumulator, the top of accumulator has a huoer switch oil level control component, replaced the electro connecting pressure gauge or pressure relay, removed accumulator hit top and heavy pressure overflow heat up, controlled the system oil temperature. This can meet 24 hours work in summer.

4.Special structure is more reasonable and more safety

1. Energy saving and environmental protection.
2. High speed and high efficiency blowing increases production efficiency.
3. 'X' type guide rails guarantee precision forging and strong anti deviated loading ability.
4. Auto lubricating of guide rails.
5. PLC control, immediately starting and immediately apply into forging production.
6. Safety and easy operating by foot pedal or hand lever.
7. High efficiency cooling for hydraulic oil.
