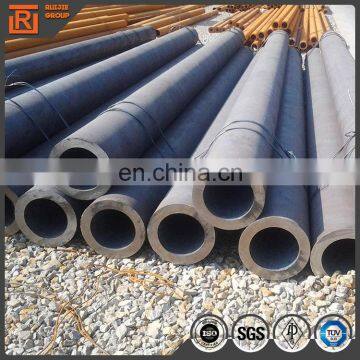

Seamless steel pipe, 1-16 inch SCH 40 seamless steel tube large quantity in stock
Specification of carbon steel seamless steel pipe Q235
| Norminal Diameter | Outside Diameter | SCH40(6m) | SCH80(6m) | SCH160(6m) | |||
| Wall | Weight | Wall | Weight | Wall | Weight | ||
| (mm) | (mm) | (kg/pc) | (mm) | (kg/pc) | (mm) | (kg/pc) | |
| 1/4" | 13.7 | 2.24 | 3.79 | 3.02 | 4.8 | ||
| 3/8" | 17.1 | 2.31 | 5.04 | 3.2 | 6.6 | ||
| 1/2" | 21.3 | 2.77 | 7.62 | 3.73 | 9.72 | 4.78 | 11.7 |
| 3/4" | 26.7 | 2.87 | 10.14 | 3.91 | 13.2 | 5.56 | 17.4 |
| 1" | 33.4 | 3.38 | 15 | 4.55 | 19.44 | 6.35 | 25.44 |
| 1-1/4" | 42.2 | 3.56 | 20.34 | 4.85 | 26.82 | 6.35 | 33.66 |
| 1-1/2" | 48.3 | 3.68 | 24.3 | 5.08 | 32.46 | 7.14 | 43.5 |
| 2" | 60.3 | 3.91 | 32.64 | 5.54 | 44.88 | 8.74 | 66.66 |
| 2-1/2" | 73 | 5.16 | 51.78 | 7.01 | 68.46 | 9.53 | 89.52 |
| 3" | 88.9 | 5.49 | 67.74 | 7.62 | 91.62 | 11.13 | 128.1 |
| 3-1/2" | 101.6 | 5.74 | 81.42 | 8.08 | 111.78 | ||
| 4" | 114.3 | 6.02 | 96.42 | 8.56 | 133.92 | 13.49 | 201.24 |
| 5" | 141.3 | 6.55 | 130.62 | 9.53 | 185.82 | 15.88 | 294.66 |
| 6" | 168.3 | 7.11 | 169.56 | 10.97 | 255.36 | 18.26 | 405.36 |
| 8" | 219.1 | 8.18 | 255.3 | 12.7 | 387.84 | 23.01 | 667.62 |
| 10" | 273 | 9.27 | 361.86 | 15.09 | 576.06 | 28.58 | 1033.98 |
| 12" | 323.8 | 10.31 | 478.38 | 17.48 | 792.48 | 33.32 | 1432.56 |
| Name | seamless steel pipe | ||||
| Material | 10#, 20#, A106B, A53B, API 5L, Q345, ST52,S355.etc. | ||||
| OD | 20--1016mm | ||||
| WT | 2.5-80mm, SCH10~SCH40~XXL | ||||
| Length | 5.8m,6m,8m,9m,12m or as customer's required | ||||
| Technique | Hot Rolled/Cold Rolled | ||||
| Chemical Composition | C: 0.42~0.50% | ||||
| Si: 0.17~0.37% | |||||
| Mn: 0.50~0.80% | |||||
| Cr:<=0.25% | |||||
| Mechanical Properties | Tensile strength 600MPa | ||||
| Yield strength 355MPa | |||||
| Elongation 16% | |||||
| Applied Range | Fluid pipe | ||||
| Packing | plain end or beveled end | ||||
| black painting on outside | |||||
| plastic caps on both end | |||||
| bundle by steel strip | |||||
| MQQ | 10Tons | ||||
| Port | Tianjin or Qingdao | ||||
| Payment Term | T/T,L/C | ||||
| Delivery Time | 25days after receiving the deposit | ||||
Tianjin Ruijie Steel PIpe Co.,Ltd is a large steel pipe production enterprise in north China, located in largeststeel pipe production base of China in daqiuzhuang village, jinhai county ,Tianjin .The company mainly produces spiral steel pipe, and straight seam steel pipe,square pipe,welded steel pipe, galvanized pipe as a supplement. We can produce various materials of steel pipes, with a complete range of specifications. We can supply from stock all the year.Besides, various sizes of steel pipes can be processed and customized as required.
The company has 4 advanced domestic spiral steel pipe production line. The products are mainly used in transport-pipeline of oil and nature gas,oil well piping, oil well casing pipe, industry, gas supply, heat supply, oil supply and building hardware and so on.
If you have any question,please contact us!
We will reply you within 24 hours.
Tianjin Ruijie Steel Pipe Co.,Ltd
Company website: http://cnruijie.en.china.cn/
Add:1112room haiyi internation building 3,Tianjin,China
Tel:+86-022-27989909
Fax:+86-022-27989909
Mobile:+86 15620698705
Sales Manager:Crystal Wang
