Name: H7010C-2RZHQ1P4DBA High Precision Angular Contact Ball Bearings
Brand: monton
SKU: 160613037

ALL CATEGORIES

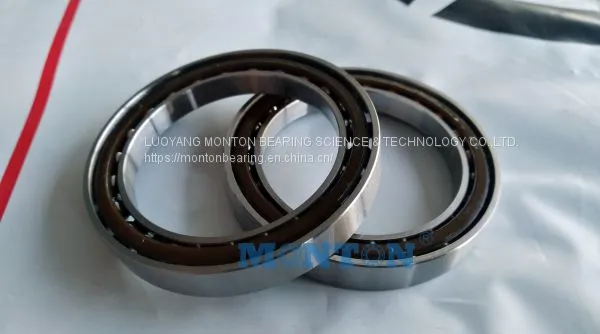

H7010C-2RZHQ1P4DBA High Precision Angular Contact Ball Bearings

Send Inquiry to This Supplier

Mrs. Dave-Lee

General manager

Luoyang Monton Bearing Science & Technology Co.,ltd.

Luoyang, Henan, China

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

Part Number	H7010C-2RZHQ1P4DBA
For Load Direction	Combined Radial and Thrust
Construction	One
Single Row/Double Row	Single
Seal Type	Open
Precision Rating	P4 (ABEC-7) P5 (ABEC-5)
Contact Angle	15
Duplex	DB (back-to-back arrangement)
	DF (face-to-face arrangement)
	DT (tandem arrangement)
Bore Dia (d)	50 mm
Bore Dia Tolerance	-0.006mm to 0
Outer Dia (D)	80 mm
Outer Dia Tolerance	-0.007mm to 0
Width (B)	16 mm
Width Tolerance	-0.12mm to 0
Ring Material	52100 Chrome steel
Ball Material	SN24 Ceraimc Ball Si3N4
Cage Material	TYN (ball guided polyamide resin cage)
	TR (outer ring guided polyamide resin cage)
Dynamic Load Rating (Cr) (KN)	27.3
Static Load Rating (Cor) (KN)	21.9
Axial Load (KN)	13.9
Max Speed (Grease) (RPM)	17700
Max Speed (Oil) (RPM)	27000
Preload	EL (extra light preload)
	L (light preload)
	M (medium preload)
	H (heavy preload)
	CP (special preload)
	CA (special axial clearance)
Lubrication	Required
Shaft Mount Type	Press Fit
Temperature Range	-40 to 120 ºC
Weight (grams)	0.259
H7010C-2RZHQ1P4DBB,H7010C-2RZHQ1P5DBA,H7010C-2RZHQ1P5DBB,H7010C-2RZHQ1P4SUL,H7010C-2RZHQ1P5SUL

H7010C-2RZHQ1P4DBA High Precision Angular Contact Ball Bearings

Product Details
