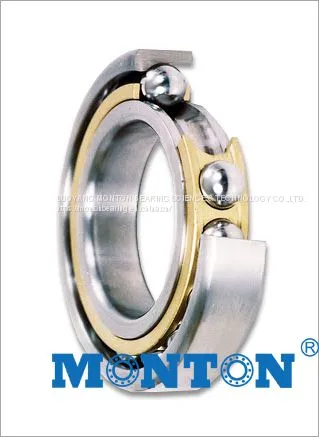

7024CTYNSULP4 Abec-7 110×170×28
Super Precision angualr contact ball bearings Spindle Bearings
Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, it often adopts mounting in pair. As matched pairs of bearings, preload for them is more convenient. Retainer are made of brass, synthetic resins or others subject to individual bearing feature and application conditions.
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle.
7024CTYNSULP4 SUPER PRECISION ANGULAR CONTACT SPINDLE BEARINGS
Brand : Monton
Type :Angular Contact Ball Bearings
Contact angle C: 15 Degree
Cage material TYN: Ball guided polyamide Resin
Rings material Bearing steel (SUJ2)
Rolling elements material Bearing steel (SUJ2)
Arrangement SU: universal Single row for matched set
Accuracy rating P4: ISO Class 4 (ABEC – 7)
Limiting speeds Grease: 21,300 rpm Oil: 32,500 rpm
Dynamic load rating 21.6 KN
Static load rating 35KN
Axial load rating 30KN
Dimensions 120mm x 180mm x 28mm
Quantity Two bearings
Made in China
THIS MATCHED SET OF TWO NSK 7024CTYNSULP4:
REPLACES THE FOLLOWING
NSK 7024CTYNDBLP4 NSK 7024CTRDULP4Y NSK 7024CTRDULP4
NACHI 70124CYDUP4 NACHI 7024CYDU/GLP4
FAG 7024CT P4S DUL
SKF 7024CD/P4A SKF 7024CD/P4A DBA
RHP 7024CTDULP4
| Commodity name | super precision bearing angular contact ball bearing |
| Bearing model | 7024CTYNSULP4 7024CTYNDBLP5 7024CTYNDULP4 |
| Bearing specification | 110*170*28mm bearing |
| Weight /KG | 2.1KG |
| Greese/Oil | As you requirement ,such as SRL,PS2,Alvania R12 and so on |
| Bearing Series | 70xx,72xx,718XX,719xx |
| Ring Materical | Chrome Steel,Carbon steel, Stainless steel |
| Tolerance grade | GB/T307.1-205 |
| ID Size | 10mm-280mm |
| Quality standard | NSK precision bearing passed ISO 9001:2008 standard |
| Bearing Precision | P0,P6,P5 ,P4 |
| Steel pressed cage | Bending claw form or rivet form |
| Delivert Date | Normally ready goods and stock within 7 days |
| Payment Terms | A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union |
| Application | Home appliances, low noise and high speed electric motors,automotive components,pumps,machinery. |
| Bearing Service | precision bearing can offer OEM service |
| Package | Single box or according to buyers requirement |
Angular Contact Ball Bearing Specification:
| Seals Types | 2RS,OPEN |
| Vibration Level | Z1V1,Z2V2,Z3V3 |
| Clearance | C2,C0,C3,C4,C5 |
| Tolerance Codes | ABEC-1,ABEC-3,ABEC-5 |
| Materral | GCr15-China/AISI52100-USA/Din100Cr6-Germany |
| MOQ | 1Set at least |
| Delivery Time | 15-45 days after contract |
| Payment Terms | TT/PAPAL/WESTERN UNION |
| Pavkage | Tube package+outer carton+pallets;Single box+outer carton+pallets;Tube pavkge+middle box+outer carton+pallets;According to your requirement |
