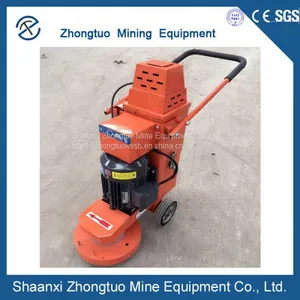

Help CenterSilent Dust Free Concrete Floor Grinding Machine
Related Products
-
Electric Concrete Floor Grinder|edging Grinding,small Size,planetary,large SizeUS$ 500 - 2000MOQ: 1 Piece -
Electric Trowel Machine for Polishing Cement PavementUS$ 700 - 2000MOQ: 1 Set
-
Hand-Pushing Scabbler|Multi-Headed|PneumaticUS$ 500 - 2000MOQ: 1 Piece
-
Wholesale Concrete Floor Grinding MachineUS$ 1800 - 2200MOQ: 1 Set
-
Wholesale Concrete Floor ScabblerUS$ 3000 - 5000MOQ: 1 Set
Small Concrete Floor Scabbler Grinder Construction Machine:
Hand pushing concrete floor scabbling is used to remove cement tower and floor coat
of concrete road and bridge with high hardness allowy bush hammer.
2.Hand pushing concrete floor scabbling not only improves the work efficiency and quality
and make the face to achieve uniform roughness,to remove surface laitance strong pavement
concrete after binding.
3.Hand pushing concrete floor scabbling is made of quality hardness alloy bush hammer, strong
impact, and long life.
The most widely recognized item of Concrete Surface Preparation equipment, also described as
a Scabbler, Groover or Scarifier. Typical uses include reducing screeds and levels, commonly
referred to as planing; removal of coatings, line markings & membranes; texturing and grooving
surfaces, often to increase Slip Resistance; removal of laitance and surface deposits, including
ice in cold stores.
Parameters Small Concrete Floor Scabbler Grinder Construction Machine:
| machine type | ZTMS-11A | ZTMS-15A | ZTMS-23A |
| weight | 80KG | 108KG | 156KG |
| Working width | 1260mm | 1260mm | 1260mm |
| B.P.M The number of hammers per minute | 2200*11 | 2200*15 | 2200*23 |
| Air consumption | 500l/min | 700l/min | 900l/min |
| The noise level is decibel | 56db | 56db | 56db |
| Vibration Level Mean Equivalent | 4.96 Square meter per second | 4.96 Square meter per second | 4.96 Square meter per second |
| Air compressor matching requirements | Pressure of 5 kg / cm,Displacement of 0.8 cubic meters / min | Pressure of 5 kg / cm,Displacement of 0.8 cubic meters / min | Pressure of 5 kg / cm,Displacement of 1.0 cubic meters / min |
| Speak concrete mark concrete mark | Work efficiency | Work efficiency | Work efficiency |
| C50 concrete | 25-30 square meters / hour @ 1-3 mm | 40-50 square meters per hour @ 1-3 millimeters | 50-60 square meters per hour @ 1-3 millimeters |
| C40 concrete | 32-37 square meters per hour @ 1-3 millimeters | 50-60 square meters per hour @ 1-3 millimeters | 60-70 square meters per hour @ 1-3 millimeters |
| C30 concrete | 40-45square meters / sales @ 1-3 mm | 60-70 square meters per hour @ 1-3 millimeters | 70-80 square meters per hour @ 1-3 millimeters |
