One.Product data:
Professional manufacturer Ductile iron valve pipe fittings flexible mechanical dismantling joint

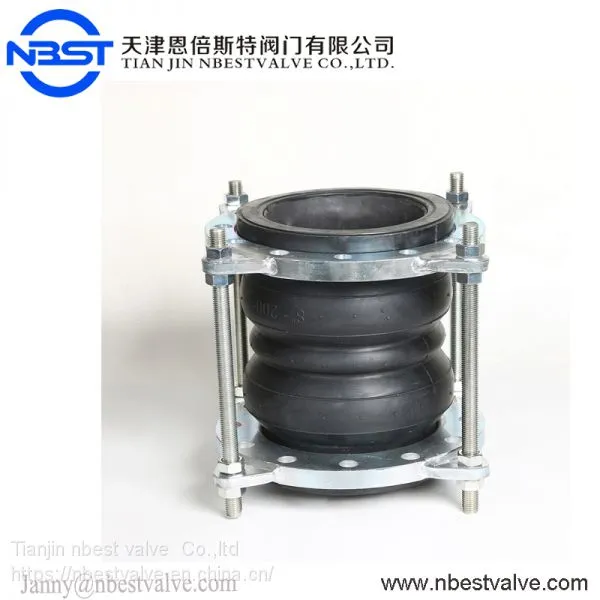

Double sphere rubber joint is generally consist of the inner and the outer rubber layer and fabric reinforced layer (the enhancement layer has a multilayer spreading cord fabric), vulcanization molded in high temperature and high pressure , then assembly together with rubber tube and metal flange or parallel joint sleeve.
| No. | Name | Material |
| 1 | Inner and outer rubber | NR,NBR,EPDM etc |
| 2 | Frame | Nylon cord fabric |
| 3 | Pressuring ring | Steel wire |
| 4 | Flange | Carbon steel galvanized/ Stainless steel |
| Main connecting dimension of double sphere rubber joint | ||||||||
| Nominal diameter DN | Length | Center diameter of the bolt | Hole diameter & quantity | Axial displacement | Horizontal displacement | Deflexion angle | ||
| mm | inch | mm | mm | Extension(mm) | Compression(mm) | (mm) | (a1+a2)° | |
| 40 | 1 1/2 | 165 | 110 | 18-4 | 30 | 50 | 45 | 35 |
| 50 | 2 | 165 | 125 | 18-4 | 30 | 50 | 45 | 35 |
| 65 | 2 1/2 | 175 | 145 | 18-4 | 30 | 50 | 45 | 35 |
| 80 | 3 | 175 | 160 | 18-8 | 35 | 50 | 45 | 35 |
| 100 | 4 | 225 | 180 | 18-8 | 35 | 50 | 40 | 35 |
| 125 | 5 | 225 | 210 | 18-8 | 35 | 50 | 40 | 35 |
| 150 | 6 | 225 | 240 | 22-8 | 35 | 50 | 40 | 35 |
| 200 | 8 | 325 | 295 | 22-8 | 35 | 50 | 40 | 35 |
| 250 | 10 | 325 | 350 | 22-12 | 35 | 60 | 35 | 30 |
| 300 | 12 | 325 | 400 | 22-12 | 35 | 60 | 35 | 30 |
| 350 | 14 | 330 | 460 | 22-16 | 35 | 60 | 35 | 30 |
| 400 | 16 | 330 | 515 | 26-16 | 35 | 60 | 35 | 30 |
| 450 | 18 | 330 | 565 | 26-20 | 35 | 60 | 35 | 30 |
| 500 | 20 | 350 | 620 | 26-20 | 35 | 60 | 35 | 30 |
| 600 | 24 | 350 | 725 | 30-20 | 35 | 60 | 35 | 30 |
| 700 | 28 | 350 | 840 | 30-24 | 35 | 60 | 35 | 30 |
| 800 | 32 | 400 | 950 | 30-34 | 35 | 60 | 35 | 30 |
Datas above are only for reference,pls contact us for exact info.
Usage of double sphere rubber joint
It is mainly used for pipeline, pump and valve connection etc,applicable media could be air,compressed air,water,sea water,hot water,oil,acid and alkali etc.
