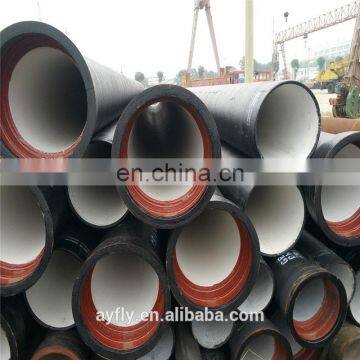

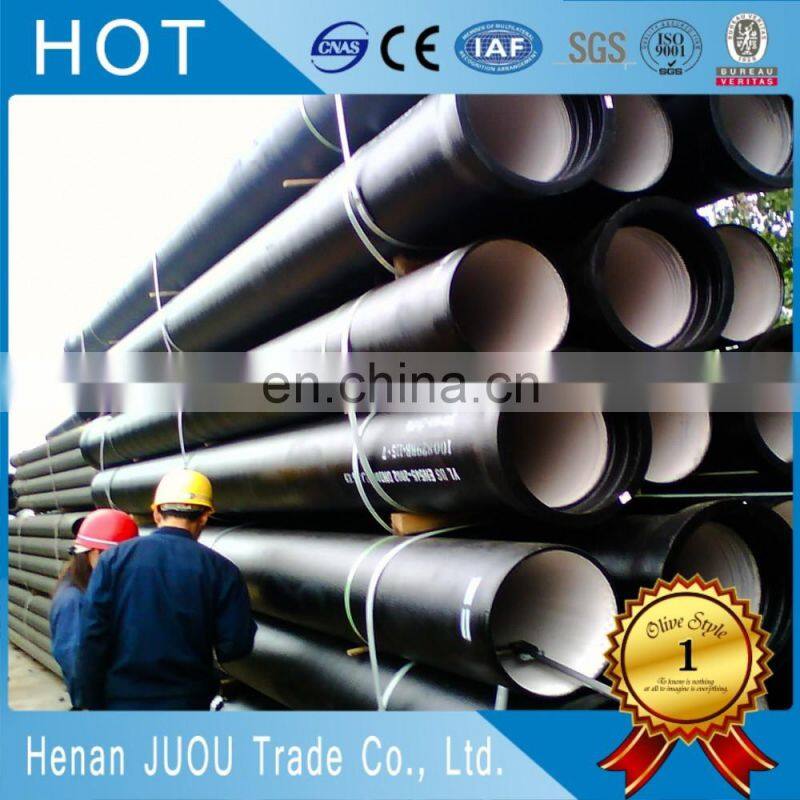

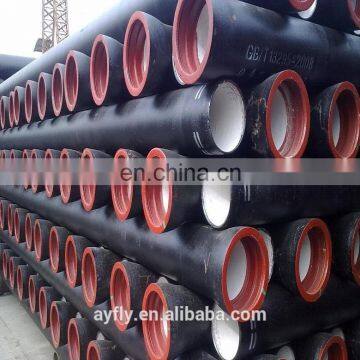

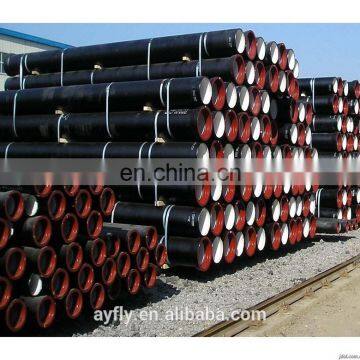

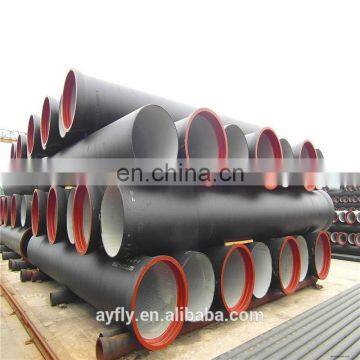

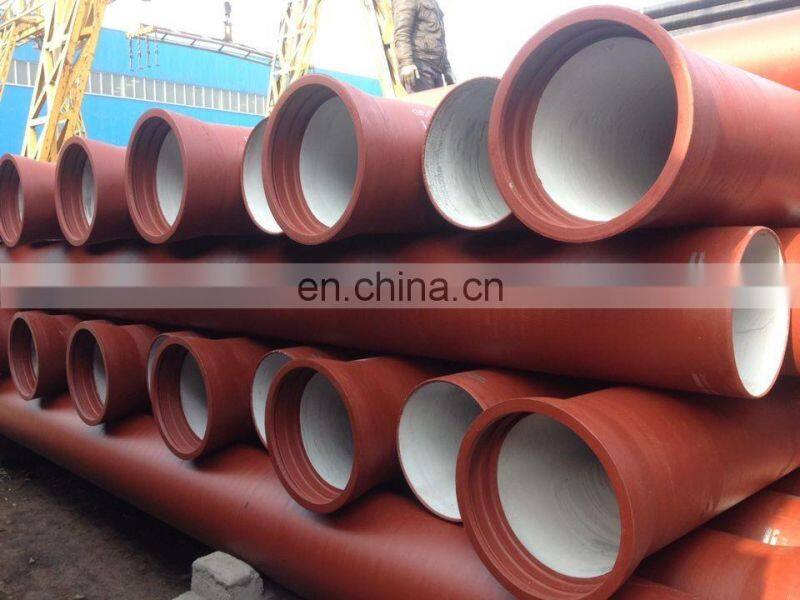

High Quality Dn250 Ductile Cast Iron Pipe Weight per Meter
- Tianjin Qingda Shanghai
- T/T Credit Card
You May Like
-
High Strength Corrosion Protection 1200mm Ductile Iron Pipe
-
Durable Corrosion Protection 200mm Ductile Iron Pipes
-
Water Supply Project Black Painted k8 Ductile Iron Pipe
-
S355 Seamless Steel Pipe P235 Importer ss Pipe Tube
-
St51 High Wall Thickness Seamless Steel Pipe
-
Factory Price en 10025 H13 Sae 52100 Seamless Steel Pipe
Product Details
| Brand Name | Xinxing | Place of Origin | Henan, China | |
| Model Number | T/K | Shape | Round | |
| Diameter | DN80-DN2000 | Length | Cut | |
| Type | Seamless | Application | Water supply project, drainage, sewage, irrigation, water pipeline. | |
| Standard | ISO2531/EN545/EN598 | Hardness | 230HB, 230HB | |
| Material | Ductile Iron | Pull Strength | 420Mpa | |
| Pipe Wall Thickness | 6mm-22.5mm |
Product Description
Ductile iron pipe introduction
Ductile iron, also called spherical graphite iron, is characterized by the presence of graphite in the resultant castings. It differs from flake graphite in that, it has a higher tensile strength, a proof stress and elongation. These characteristics ensure the suitability of ductile iron pipes and fittings for a majority of pipeline applications.
Advantage
1.For potable water supply
2.High strength
3.Long lifespan
4.Good corrosion resistance
5.Easy installation
Specifications
1 |

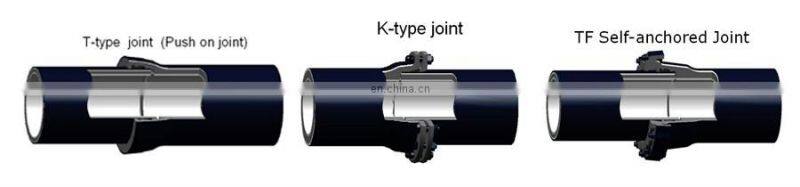

Type
| The T-type Joint Pipe (Push-on) |
The K-type Joint Pipe | ||
The Self-Restrained Joint Pipes | ||
2 | Standard | ISO2531, EN545, EN598, etc |
3 | Size | DN80~2600mm |
4 | Material | Ductile Cast Iron GGG50 |
5 | Pressure | PN10, PN16, PN25,PN40 |
6 | Class | K8, K9, C25, C30, C40 |
7 | Length | 6m, cut to 5.7m |
8 | Application | Water supply project, drainage, sewage, irrigation, water pipeline. |
9 | Certificate | ISO9001, SGS |
10
| Internal Coating | a). Portland cement mortar lining |
b). Sulphate Resistant cement mortar lining | ||
c). High-Aluminum cement mortar lining | ||
d). Fusion bonded epoxy coating | ||
e). Liquid epoxy painting | ||
f). Black bitumen painting | ||
11 | External Coating | a). zinc+bitumen(70microns) painting |
b). Fusion bonded epoxy coating | ||
c). Zinc-aluminum alloy +liquid epoxy painting | ||
12 | Packing | Bundles, in bulk |
Note The coating can also be accordance with customers' requirements. | ||
Application

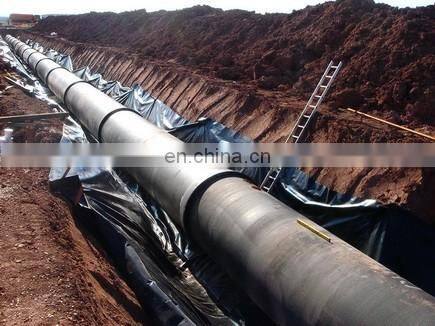

Water supply project, drainage, sewage, irrigation, water pipeline.

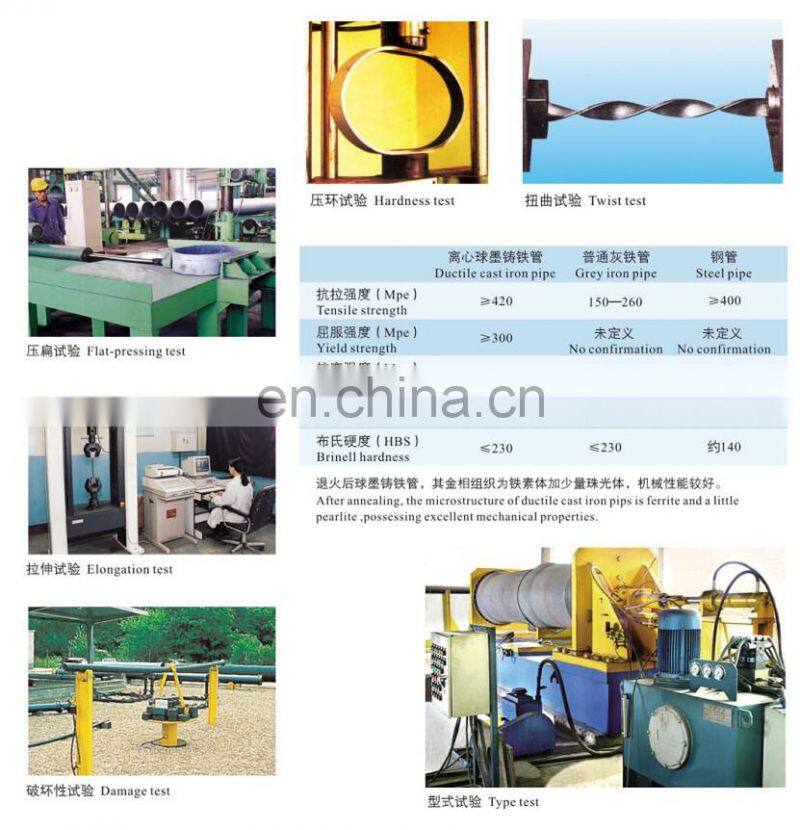

Mechanical properties for pipes
| Ductile iron pipe | Grey cast iron pipe | Steel pipe | |
Tensile strength(N/mm2) | =420 | 150-260 | =400 | |
Elongation(%) | DN60-1000=10 | Neglect | =18 | |
DN1100-2600=7 | ||||
Hardness(HB) | =230 | =210 | Approx. 140 | |
Hydraulic test(Mpa) | =DN300 | 5.0 |
| 2.5-3.0 |
DN350-600 | 4.0 |
| ||
DN700-1000 | 3.2 |
| ||
DN1100-2000 | 2.5 |
| ||
DN2100-2200 | 1.8 |
| ||
Air test(Mpa) | =0.3 |
|
| |
