What are the main advantages of the QTF4-15 automatic block making machine?

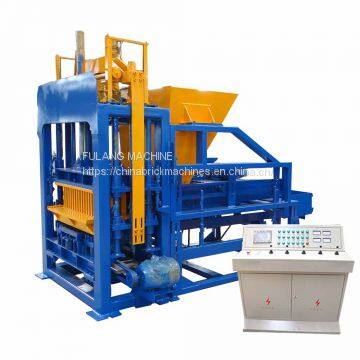

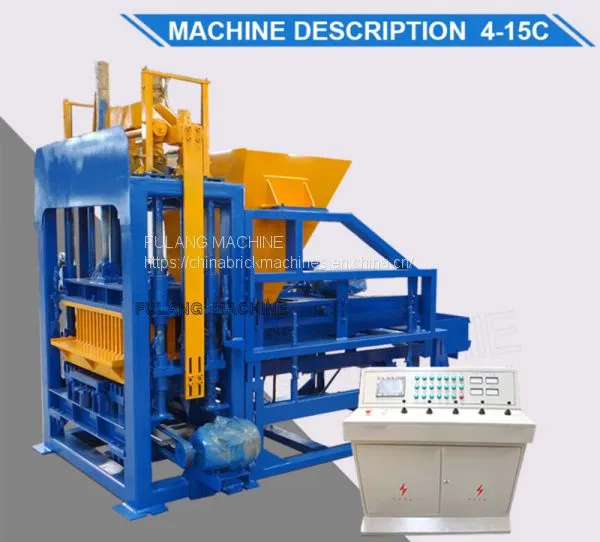

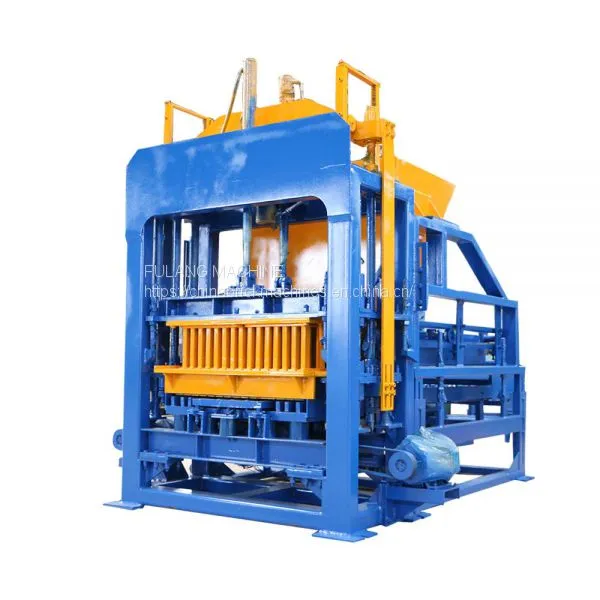

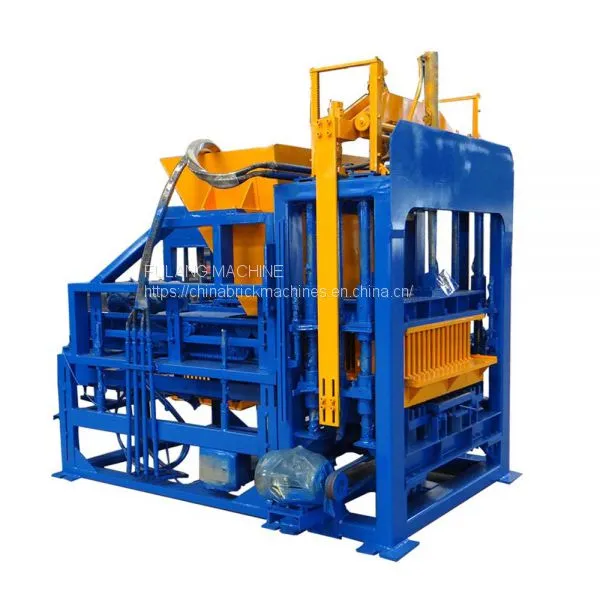

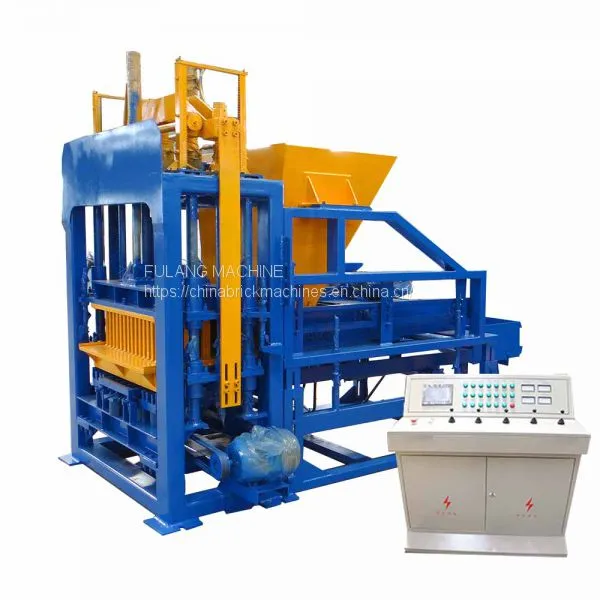

QTF4-15C concrete brick machine is a newly developed automatic programmable block production equipment of our company with the following characteristics.
1. High degree of automation: The machine production process adopts PLC automatic control, hydraulic system drive, mechanical, electrical, liquid, high-frequency vibration technology, and with plate, pressure vibration, stripping brick automation, continuous and reliable operation, high production efficiency, labor Low strength. Durable and easy to maintain.
2. Multi-purpose machine: It can be widely used in fly ash, slag, coal gangue or other industrial waste and sand, stone, cement and other materials. It can produce various hollow blocks and various pavement bricks, grass bricks and roads by changing molds. Edge stone, standard brick, etc.
3. The main electrical equipment of high-end configuration: hydraulic components are imported original accessories, such as Siemens motor, Mitsubishi control system, less faults, reliable performance.
4. Combination of hydraulic pressure and vibration: The landline is based on hydraulic pressure, supplemented by mechanical, vibration and pressure. The equipment is equipped with a patented vibration box, exciting force and high frequency vibration. Make the product more durable. The tensile strength of the produced block products can reach above 15Mpa (MPa), high density, anti-freeze, impermeability, sound insulation, heat preservation, good heat preservation performance and accurate size.
| Technical Parameters | |||
| Dimension of host machine | 4000*1800*2800mm | Voltage | Adjustable |
| Shaping cycle | 15-20s | Host machine power | 21.8kw |
| Vibration force | 40-50KN | Weight of the machine | 5.51T |
| Applied products | hollow, solid and paving blocks | Raw material | Soil/Sand/Cement |
| Pallet size | 1010*550*25mm | Mixer model | JS500 |
| Theoretical Production Capacity | |||
| Size(L*W*H) | Pcs/Mould | Pic/Hour | Pic/8Hours |
| 400x100x200mm | 8 | 1440-1680 | 11520-13400 |
| 400x150x200mm | 6 | 1080-1260 | 8640-10080 |
| 400x200x200mm | 4 | 720-840 | 5760-6720 |
| 400x250x200mm | 3 | 540-630 | 4320-5040 |
| 230x110x70mm | 24 | 4320-5040 | 34560-40320 |
Concrete fly ash hollow brick block making machine can produce various different concrete hollow blocks, solid blocks and paving blocks by changing molds. The following bricks are common brick types. Also we can customize brick moulds for you on base of your specific requirements.
Our products have been certified by many authoritative organizations and enjoy a good reputation in the international market. We are a reliable Chinese brick/block machine supplier.
