Information for astm a106 seamless carbon steel pipe
Size (mm): O.D.: 6.0∼180; W.T.: 1∼30; L: max 12000
Description:
1. Standards: ASTM A106 (ASME SA106).
2. Applications: bending, curling and similar forming processes.
3. Available steel grades: A, B and C.
4. Specifications: diameter 10.3 to 1219 mm; thickness 0.8 to 19 mm; length: 6 m and above; and, in accordance with customer demand, the supply of steel pipes to other specifications.
| commodity | ASTM A106 Seamless carbon steel pipe |
| Standard | ANSI,ASTM A192/A179/A106/A53/A500,ASME SA192/SA179/SA106/SA53/SA500 ,API.DIN,GB.JIS |
| material | A106 Gr A/B |
| OD | 1/8"-48",10mm-1219mm |
| WT | SCH5,SCH10,SCH20,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XXS |
| Usage | Structure Use, water transport, Building, Machinery, Traffic, Aviation, Oil development and so on |
| Other test | HY,ET according to request |
| Length | 2-12m Random,5.8M FIXED,6M FIXED,9M FIXED |
| Surface | Black paint as rusty protect, capped ends |
| Marks | As per customers' requirement (Hard marking or spray marking) |
| Packing | In bundles of max 3 tons each, tied in 6 points with steel wire, each with two slings at the ends for lifting during loading and discharging operations. |
| Shipment | In bundles, shipped in 20 or 40 feet containers, break bulk vessel acc to QTY and discharge port |
| Ends | 2"below plain ends,2" above beveled ends, threaded ends available |
| Method | 140mm below cold drawn,140mm above hot rolled,273mm above hot expand |
Grade and chemical composition
| Grade | c≤ | Mn | P≤ | Cr≤ | Cu≤ | Mo≤ | Ni≤ | V≤ | S≤ | Si≤ |
| A | 0.25 | 0.27-0.93 | 0.035 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 | 0.035 | 0.10 |
| B | 0.30 | 0.29-1.06 | 0.035 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 | 0.035 | 0.10 |
| C | 0.35 | 0.29-1.06 | 0.035 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 | 0.035 | 0.10 |
Mechanical Properties of A106 seamless carbon steel pipe:
| Grade | Rm Mpa Tensile Strength | Mpa Yield point | Elongation | Delivery condition |
| A | ≥ 330 | ≥ 205 | 20 | Annealed |
| B | ≥ 415 | ≥ 240 | 20 | Annealed |
| C | ≥ 485 | ≥ 275 | 20 | Annealed |
Dimension Tolerances:
| Pipe Type | Pipe sizes | Tolerances | |
| Cold Drawn | OD | ≤48.3mm | ±0.40mm |
| OD | ≤60.3 | ±1%mm | |
| WT | ±12.5% | ||
Wall Thickness of seamless carbon steel pipe
SCH5s/SCH10s/SCH10/SCH20/SCH30/SCH40/SCH60/SCH80/SCH100/SCH120/SCH140/SCH160/STD/XS/XXS
Out Diameter for seamless steel pipe:
1/8"-48"
10.3mm-1219mm
Length of A106 seamless steel pipe:
5.8m/6m/11.8m/12m is common length
Can according your requirement
Standard export packing:
in Bundles, covered with plastic woven bag, strapped by steel strip,Plastic caps at ends.
Marking:
as per customer's requests.
Painting:
varnish coating or as the client's request

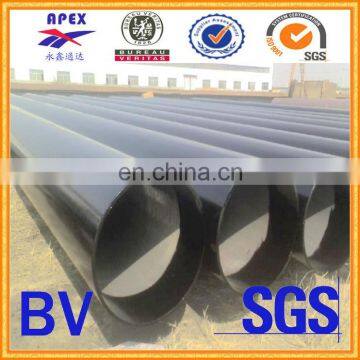

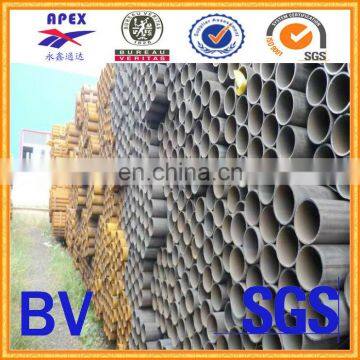

Pictures for seamless carbon steel pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
astm a106 gr.b seamless carbon steel pipe,seamless pipe
Our BV certification:
Company location: In Tianjin ,near xingang seaport
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Customer's Design and Logo are Welcome ,
Competitive Prices ,
Earth-friendly Products ,
Small Order Acceptable ,
