DIN 2391 ST35 Cold Rolled Precision Seamless Steel Pipe
- Qingdao / Tianjin / Shanghai
- T/T Credit Card
You May Like
-
High Quality ASTM A106Gr.B Cold Rolling Carbon Seamless Steel Pipe
-
High Precision Cold Rolled BKS Carbon Seamless Steel Pipe
-
High Quality Precision Seamless Steel Pipe With Cold Rolled
-
High Quality C20 Cold Rolled Precision Seamless Steel Pipe
-
Hot Sale EN10305 Cold Rolled Precision Seamless Steel Pipe
-
Professional Manufacture High Precision Cold Rolled Steel Pipe
Product Details
| Place of Origin | Shandong, China | Certification | CE | |
| Thickness | 3, 25 | Application | Hydraulic Pipe | |
| Technique | Cold Rolled | |||
| Alloy Or Not | Non-alloy | |||
| Secondary Or Not | Non-secondary | Special Pipe | Thick Wall Pipe | |
| Section Shape | Round |
Product Description
DIN 2391 ST35 cold rolled precision seamless steel pipe
Description of goods:
| Standard | DIN2391, EN10305, DIN17175,JIS G3445, ASTM A519, GB/T 8713... |
| Material | ST37/ST45/ST52/25Mn/27SiMn/E355/SAE1026/STKM13C..... |
| Outer diameter | 20mm-480mm |
| Wall thickness | 3mm-25mm |
| Length | 1-12m, random or fixed, as the clients' requests |
| Technology | High precision Cold drawn/ Cold rolled |
| Heat treatment | BK/BKS/NBK |
| Advantages | 1.Short delivery time |
| 2.Quality assurance | |
| 3.Competitive price | |
| 4.Superior Service |
Chemical composition of Materials:
| Steel Grade | C | Si | Mn | P≤ | S≤ | Cu≤ | Ni≤ | Cr≤ | Mo≤ | V≤ |
| ASTM A106 B | ≤0.3 | / | ≤1.2 | 0.05 | 0.06 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| ST35 | ≤0.18 | 0.15-0.35 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST45 | ≤0.25 | 0.15-0.35 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST52 | ≤0.2 | ≤0.55 | ≤1.5 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| CK45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
Mechanical Properties
| Steel Grade | Rm MPa | ReH Mpa |
| ST45 | ≥520 | ≥375 |
| ST52(E355) | ≥600 | ≥520 |
| SAE1026 | ≥600 | ≥510 |
| 16Mn | ≥600 | ≥520 |
| 20# | ≥520 | ≥375 |
Tolerance table of Steel tube

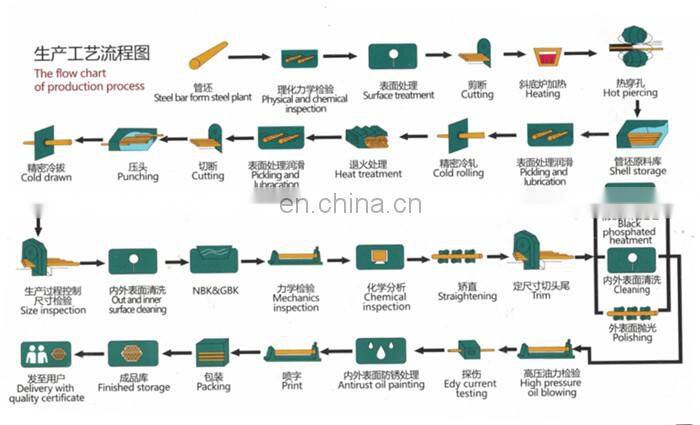

The flow chart of production process:

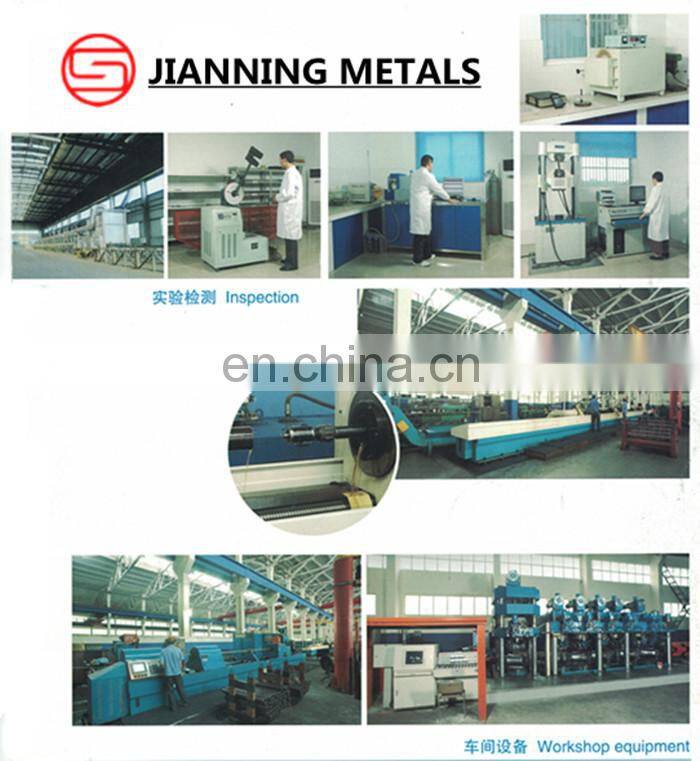

Factory & Machine Display:

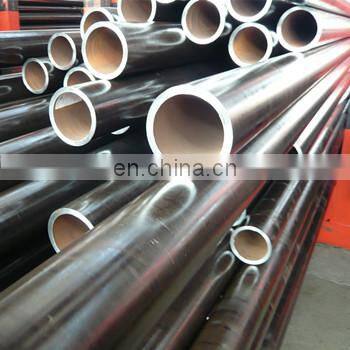

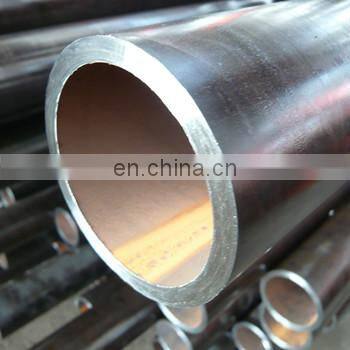

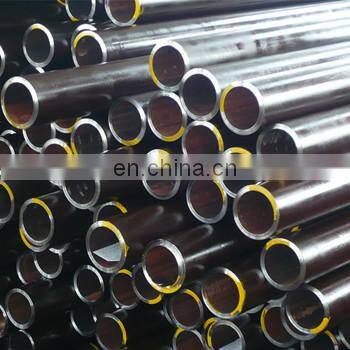

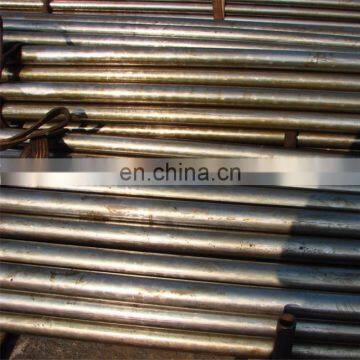

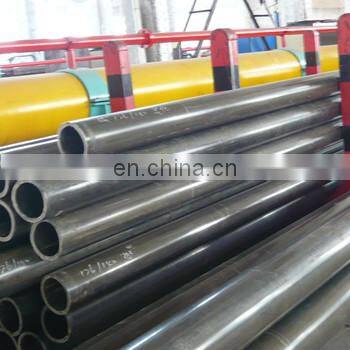

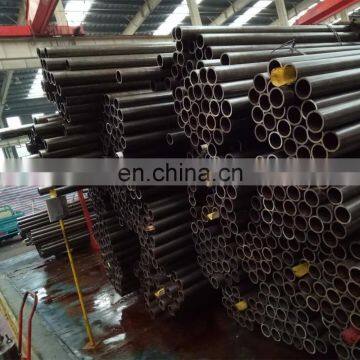

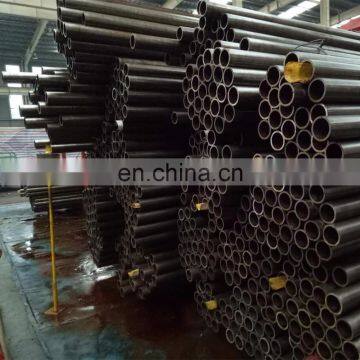

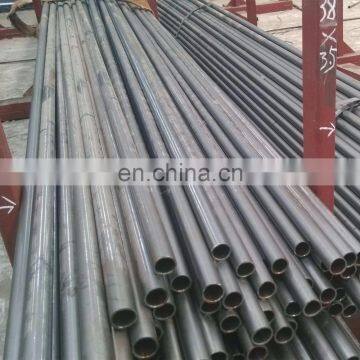

Product Display:

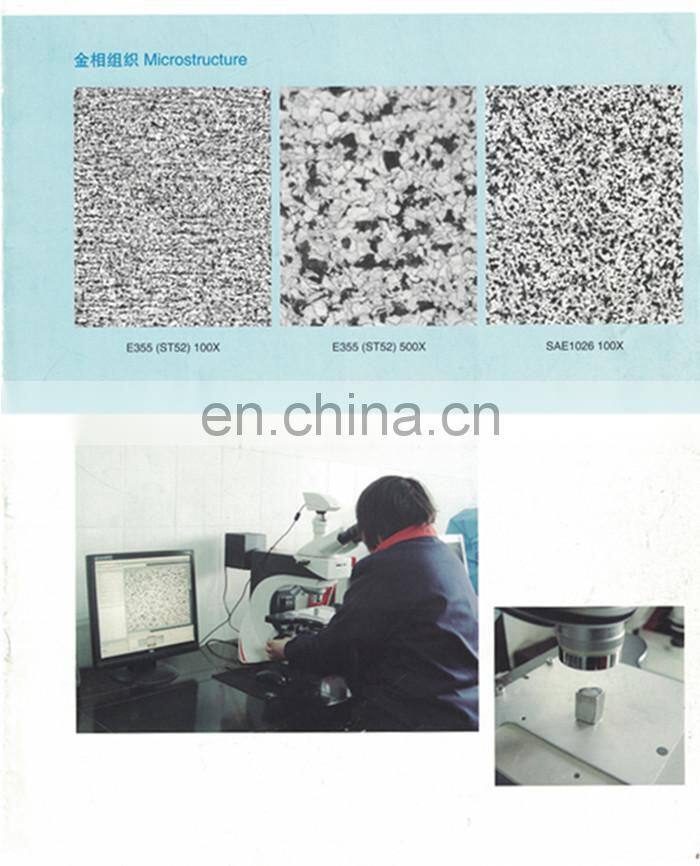

Products Testing:
Application:
To be used in hydraulic system, automobile,nested card connector(pipe joints) with matching .
Company Show:
1. Introduction of Company
JIANNING METALS GROUP was established in 2001, With more than 10 years import and export experiences Jianning Metals has been an influential exporter in the global metal products market. More than 160 customers from 26 countries and regions have established long-term business relationships with us.
Our main business range is listed as follows:
Carbon Seamless Steel pipe/tube
Hydraulic cylinder tube(Honed tube)
Hard chrome plated rod/bar/shaft(Piston rod)
Auto exhaust system: (exhaust pipe, muffler tips, carbon steel and stainless steel mufflers, flexible pipe)
We sincerely welcome friends from all over the world contact us to establish mutually beneficial business relationships
2. Our Company View
3. Our Customers
1.Q: How many days of your delivery?
A: The general delivery is 15~35 days according to your quantity.
2.Q: What's your main market?
A: We mainly export to Middle East and South Eastern Asia. And this year our products enter into South America.
3.Q :Are you factory?
A:Yeah, we are.
4.Q :Which countries do you export to?
A: America, India, Korea, Pakistan, Turkey, Iran and so on.
5.Q :What is the delivery time?
A: If we have stock, we can send goods within 20days. If not, we will delivery goods within 30-45days
6.Q: What is your main payment itme?
A: T/T and L/C
