Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > XYD-3 Crawler Hydraulic Core Drilling Rig

XYD-3 Crawler Hydraulic Core Drilling Rig

Name: XYD-3 Crawler Hydraulic Core Drilling Rig
Brand: Huaxia Waster
SKU: 160560141

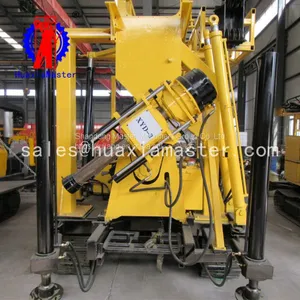

XYD-3 Crawler Hydraulic Core Drilling Rig thumbnail-1

XYD-3 Crawler Hydraulic Core Drilling Rig photo-1

US$ 3500 - 5000 MOQ: 1 Combo

Key Specifications

Get Latest Price

Brand Name:

Huaxia Waster

Place of Origin:

China

Model Number:

XYD-3

Contact Supplier Request Quote Chat Now

Shandong Master Machinery Group Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Huaxia Waster

Place of Origin China

Model Number XYD-3

Type Core Drilling Rig

Certification SIO9001

Power Type Other

Usage Other, 勘探、取芯

Condition New

XYD-3 crawler hydraulic core drilling rig

1. Characteristics of XYD-3 crawler hydraulic core drilling rig

XYD-3 crawler hydraulic core drilling rig is mainly used for geological general investigation and exploration,road and tall building foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air-conditioner,ect.

· The drilling rig is equipped with crawler chassis device, which is easy to move with fast speed.

· The crawler device is made of resistant steel mill.

· Hydraulic oil pressure feed device, which improves drilling efficiency.

· Pressure gauge displays the condition of the bottom of the drill hole.

· Drill mast controlled by hydraulic cyliner so it improves the efficiency.

· Diesel engine adopts the electric starter to reduce the labor usage.

2. Parameters of XYD-3 crawler hydraulic core drilling rig

Drilling depth	600m
Max. open hole caliber	300mm
End hole caliber	75mm
Drilling rod diameter	60mm
Drilling angle	90°-75°
Spindle
Spindle forward speed	30-1050r/min
Spindle reverse speed	29-137r/min
Spindle stroke	600mm
Spindle inner diameter	96mm
Main Winch
Single line lifting speed	0.5/0.9/1.4/1.9m/s
Diameter of wire rope	12.5mm
Brake width	90mm
Drum diameter	300mm
The biggest single rope hoisting capacity	30kn
Mud pump
Type	Horizontal triples BW-250 Mud Pump
Displacement	250 l/min
Water inlet diameter	75mm
Water outlet diameter	50mm
Power
Diesel engine	38kw
Electric motor	Y180L—4 22KW
Weight	6500kg
Size	25009001800mm
