Home > Products > Exploration Drilling Rig > QZ-2D three phase electric sampling drilling rig
QZ-2D three phase electric sampling drilling rig
- 50 Combo / Combos per Month
- qingdao
- T/T L/C D/P D/A
- 7 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | Huaxia Waster | Place of Origin: | China | Model Number: | QZ-2D |
| Type: | Core Drilling Rig | Certification: | SIO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Weight: | 110kg | Dimension(L*W*H): | 600*650*2330 | Power Type: | Diesel |
| Usage: | Other, 勘探、打井、取芯 | Condition: | New |
Product Description

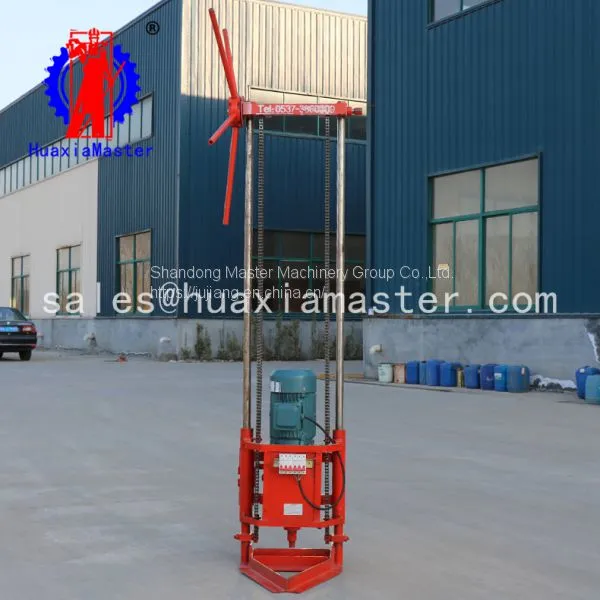

1. Brief introductions of QZ-2D three phase electric sampling drilling rig
QZ-2D three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2D three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2D three phase electric sampling drilling rig
QZ-2D three phase electric sampling drilling rig | ||
End hole diameter (mm) | 32-110 | |
Drilling depth（m） | soil Layer φ110：10m soil Layer φ91：10-15m lithosphereφ91：5-10m lithosphere φ75：10-15m lithosphereφ60：15-20m lithosphereφ46：20-30m | |
Drilling pipe diameter(mm) | 30 | |
Three phase electric engine | power | 4kw |
model | YX3-112M-4 | |
Dimension（l*w*h） | 600*650*2330 | |
Weight（kg） | 110 | |
3. Configuration List of QZ-2D three phase electric sampling drilling rig
Item | Parameter | Unit | Quantity |
Three phase electric sampling drilling rig | QZ-2D | set | 1 |
Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |

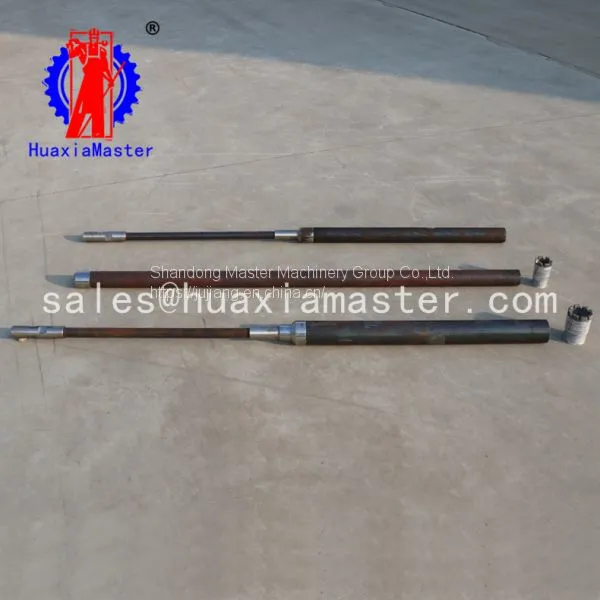

Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |

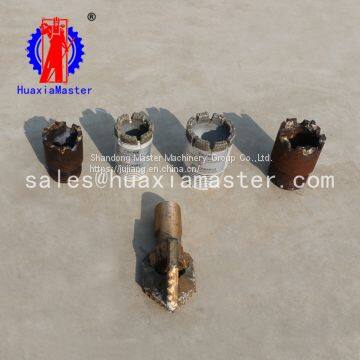

Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Pliers | pc | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |

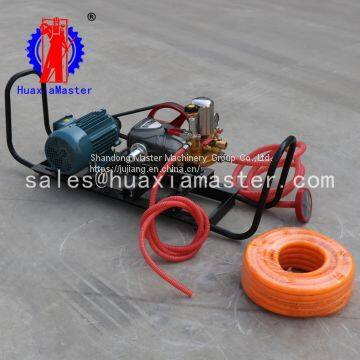

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify
