XYX-200 Wheeled Hydraulic Core Drilling Rig

Shandong Master Machinery Group Co.,Ltd.
XYX-200 Wheeled Hydraulic Core Drilling Rig thumbnail-1
XYX-200 Wheeled Hydraulic Core Drilling Rig thumbnail-2
XYX-200 Wheeled Hydraulic Core Drilling Rig thumbnail-3
XYX-200 Wheeled Hydraulic Core Drilling Rig photo-1
XYX-200 Wheeled Hydraulic Core Drilling Rig photo-2

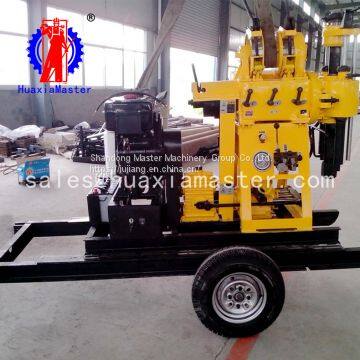

XYX-200 Wheeled Hydraulic Core Drilling Rig photo-3
US$ 3500 - 5000 MOQ: 1 Combo
Key Specifications
Get Latest Price
Brand Name:
Huaxia Waster
Place of Origin:
China
Model Number:
XYX-200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxia Waster
Place of Origin China
Model Number XYX-200
Type Core Drilling Rig
Certification SIO9001
Weight 1300kg
Power Type Other
Usage Other, 勘探、取芯
Condition New

XYX-200 wheeled hydraulic core drilling rig

1. Characteristics of XYX-200 wheeled hydraulic core drilling rig

· hydraulic cylinder, high efficiency

· wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.

· pressure gauge display the condition of the bottom of the drill hole.

· the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

· the working efficiency is high and the operation is convenient, safe and reliable.

2. Technical parameters of XYX-200 wheeled hydraulic core drilling rig

XYX-200 wheeled hydraulic core drilling rig

Drill hole depth

200m

Maximum opening diameter

300mm

Final hole diameter

75mm

Drill pipe diameter

60mm

Borehole inclination

90°-75°

Rig weight (without power)

1300kg

Trigonometric belt

B950*4   B1700*3

Active moving distance

300mm

Power

Diesel engine/motor 22hp/16.2kw

A vertical scroll of painting

Shaft rotation speed

64/128/ 287/ 557 r/min

Vertical axis stroke

450mm

Windlass

Maximum lifting weight of single rope

2400kg

Single rope lifting speed

0.41/ 0.82/1.64m/s

Wire rope diameter

13mm

Wire rope capacity

35m

Hug floodgate caliber

260mm

Hug floodgate belt width

70mm

Mud pump

Type

Horizontal single cylinder double action

Maximum displacement

Diesel engine 170L/min

Matching motor 150L/min

Maximum pressure

3Mpa

Work pressure

1.5Mpa

Inlet pipe caliber

40mm

Outlet pipe caliber

30mm

Triangle conveyer belt

B1728mm

Type

CBT-F-314

Triangle conveyer belt

B1100*1
