Help CenterUnequal Angle Steel
US$ 600 - 900
MOQ: 10 Metric Tons
Key Specifications
Get Latest Price
Brand Name:
Lanchuang
Place of Origin:
Hebei, China
Model Number:
2.5#-20#
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Corrosion Resistance New Hot Rolled HDG Steel AngleUS$ 600 - 900MOQ: 10 Metric Tons -
S235JR 75x75x7 Carbon Hot Rolled Equal Steel AngleUS$ 600 - 900MOQ: 10 Metric Tons
-
China Galvanized Steel Angle for Iron WeightsUS$ 600 - 900MOQ: 10 Metric Tons
-
Construction Structural Hot Rolled Hot Dipped Galvanized Angle Iron / Equal Angle Steel / Steel Angle PriceUS$ 600 - 900MOQ: 10 Metric Tons
-
Price Equal Angle Steel St235jr Iron BarUS$ 600 - 900MOQ: 10 Metric Tons
Brand Name
Lanchuang
Place of Origin
Hebei, China
Model Number
2.5#-20#
Application
Construction
Standard
GB
Grade
S235JR-S335JR Series
|
Meterial: Q235(equivalent to A36, SS400, S235JR, ST37-2) Q345(equivalent to S355JR, ST52-3) |
| Surface: black, galvanized or customized. |

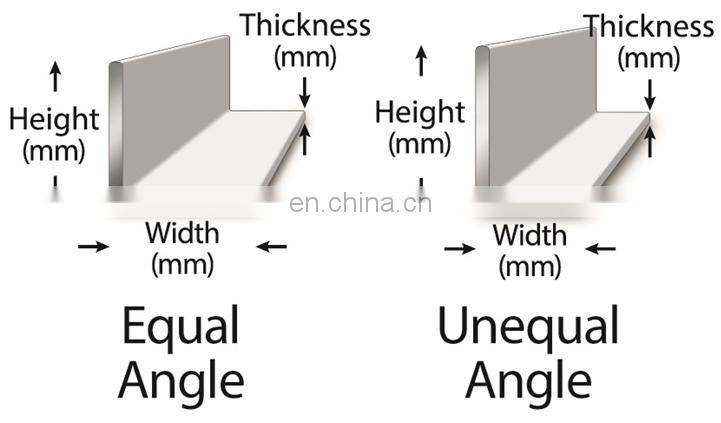

GB Standard equal steel angle specification:
| HEIGHT (mm) |
WIDTH (mm) |
THICKNESS (mm) |
KGS/M | HEIGHT (mm) |
WIDTH (mm) |
THICKNESS (mm) |
KGS/M | HEIGHT (mm) |
WIDTH (mm) |
THICKNESS (mm) |
KGS/M | ||
| 20 | 20 | 3 | 0.889 | 63 | 63 | 10 | 9.151 | 100 | 100 | 16 | 23.257 | ||
| 20 | 20 | 4 | 1.145 | 70 | 70 | 4 | 4.372 | 110 | 110 | 7 | 11.928 | ||
| 25 | 25 | 3 | 1.124 | 70 | 70 | 5 | 5.397 | 110 | 110 | 8 | 13.532 | ||
| 25 | 25 | 4 | 1.459 | 70 | 70 | 6 | 6.406 | 110 | 110 | 10 | 16.69 | ||
| 30 | 30 | 3 | 1.373 | 70 | 70 | 7 | 7.398 | 110 | 110 | 12 | 19.782 | ||
| 30 | 30 | 4 | 1.786 | 70 | 70 | 8 | 8.373 | 110 | 110 | 14 | 22.809 | ||
| 36 | 36 | 3 | 1.656 | 75 | 75 | 5 | 5.818 | 125 | 125 | 8 | 15.504 | ||
| 36 | 36 | 4 | 2.163 | 75 | 75 | 6 | 6.905 | 125 | 125 | 10 | 19.133 | ||
| 36 | 36 | 5 | 2.654 | 75 | 75 | 7 | 7.976 | 125 | 125 | 12 | 22.696 | ||
| 40 | 40 | 3 | 1.852 | 75 | 75 | 8 | 9.03 | 125 | 125 | 14 | 26.193 | ||
| 40 | 40 | 4 | 2.422 | 75 | 75 | 10 | 11.089 | 140 | 140 | 10 | 21.488 | ||
| 40 | 40 | 5 | 2.976 | 80 | 80 | 5 | 6.211 | 140 | 140 | 12 | 25.522 | ||
| 45 | 45 | 3 | 2.88 | 80 | 80 | 6 | 7.376 | 140 | 140 | 14 | 29.49 | ||
| 45 | 45 | 4 | 2.736 | 80 | 80 | 7 | 8.525 | 140 | 140 | 16 | 33.393 | ||
| 45 | 45 | 5 | 3.369 | 80 | 80 | 8 | 9.658 | 160 | 160 | 10 | 24.729 | ||
| 45 | 45 | 6 | 3.985 | 80 | 80 | 10 | 11.874 | 160 | 160 | 12 | 29.391 | ||
| 50 | 50 | 3 | 2.332 | 90 | 90 | 6 | 8.35 | 160 | 160 | 14 | 33.987 | ||
| 50 | 50 | 4 | 3.059 | 90 | 90 | 7 | 9.656 | 160 | 160 | 16 | 38.518 | ||
| 50 | 50 | 5 | 3.77 | 90 | 90 | 8 | 10.946 | 180 | 180 | 12 | 33.159 | ||
| 50 | 50 | 6 | 4.465 | 90 | 90 | 10 | 13.476 | 180 | 180 | 14 | 38.383 | ||
| 56 | 56 | 3 | 2.624 | 90 | 90 | 12 | 15.94 | 180 | 180 | 16 | 43.542 | ||
| 56 | 56 | 4 | 3.446 | 100 | 100 | 6 | 9.366 | 180 | 180 | 18 | 48.634 | ||
| 56 | 56 | 5 | 4.251 | 100 | 100 | 7 | 10.83 | 200 | 200 | 14 | 42.894 | ||
| 56 | 56 | 6 | 6.568 | 100 | 100 | 8 | 12.276 | 200 | 200 | 16 | 48.68 | ||
| 63 | 63 | 4 | 3.907 | 100 | 100 | 10 | 15.12 | 200 | 200 | 18 | 54.401 | ||
| 63 | 63 | 5 | 4.822 | 100 | 100 | 12 | 17.898 | 200 | 200 | 20 | 60.056 | ||
| 63 | 63 | 6 | 5.721 | 100 | 100 | 14 | 20.611 | 200 | 200 | 24 | 71.168 | ||
| 63 | 63 | 8 | 7.469 |
GB Standard unequal steel angle specification:
| HEIGHT (mm) |
WIDTH (mm) |
THICKNESS (mm) |
KGS/M | HEIGHT (mm) |
WIDTH (mm) |
THICKNESS (mm) |
KGS/M | HEIGHT (mm) |
WIDTH (mm) |
THICKNESS (mm) |
KGS/M | ||
| 25 | 16 | 3 | 0.912 | 63 | 40 | 7 | 5.339 | 90 | 56 | 8 | 8.779 | ||
| 25 | 16 | 4 | 1.176 | 70 | 45 | 4 | 3.57 | 100 | 63 | 6 | 7.55 | ||
| 32 | 20 | 3 | 1.171 | 70 | 45 | 5 | 4.403 | 140 | 90 | 12 | 20.724 | ||
| 32 | 20 | 4 | 1.522 | 70 | 45 | 6 | 5.218 | 140 | 90 | 14 | 23.908 | ||
| 40 | 25 | 3 | 1.484 | 70 | 45 | 7 | 6.011 | 160 | 100 | 10 | 19.872 | ||
| 40 | 25 | 4 | 1.936 | 75 | 50 | 5 | 4.808 | 160 | 100 | 12 | 23.592 | ||
| 45 | 30 | 3 | 1.687 | 75 | 50 | 6 | 5.699 | 160 | 100 | 14 | 27.247 | ||
| 45 | 30 | 4 | 2.203 | 75 | 50 | 8 | 7.431 | 160 | 100 | 16 | 30.835 | ||
| 50 | 32 | 3 | 1.908 | 75 | 50 | 10 | 9.098 | 180 | 110 | 10 | 22.273 | ||
| 50 | 32 | 4 | 2.494 | 80 | 50 | 5 | 5.005 | 180 | 110 | 12 | 25.464 | ||
| 56 | 36 | 3 | 2.153 | 80 | 50 | 6 | 5.935 | 180 | 110 | 14 | 30.589 | ||
| 56 | 36 | 4 | 2.818 | 80 | 50 | 7 | 6.848 | 180 | 110 | 16 | 34.649 | ||
| 56 | 36 | 5 | 3.466 | 85 | 50 | 8 | 7.745 | 200 | 125 | 12 | 29.761 | ||
| 63 | 40 | 4 | 3.185 | 90 | 56 | 5 | 5.661 | 200 | 125 | 14 | 34.436 | ||
| 63 | 40 | 5 | 3.92 | 90 | 56 | 6 | 6.717 | 200 | 125 | 16 | 39.045 | ||
| 63 | 40 | 6 | 4.638 | 90 | 56 | 7 | 7.756 | 200 | 125 | 18 | 43.588 |
Q1: What products can you offer?
We can provide cold bending steel purlins, thin iron wire, black steel tube, gi tube, gi/ppgi coil
and sheet, etc.
Q2:Why should I choose you?
(1) Contact us with your detailed inquiry, you will be replied within 24 hours.
(2)You are promised to obtain the best quality, price and service.
(3) We'd like to provide samples for your confirm.
(4) Wide excellent experiences with after-sale service.
(5)Every process will be checked by responsible QC which insures every product's quality.
Q3: Can you provide samples for checking before order?
Yes.Free samples with freight collect will prepared as required.
Q4: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q5: What is the price term?
FOB, CIF, CFR, EXW are acceptable.
Q6: What’s the payment term?
T/T, L/C, D/A, D/P or other method as agreed.
