FY260 Crawler Pneumatic Water Well Drilling Rig

FY260 Crawler Pneumatic Water Well Drilling Rig thumbnail-1
FY260 Crawler Pneumatic Water Well Drilling Rig thumbnail-2
FY260 Crawler Pneumatic Water Well Drilling Rig thumbnail-3
FY260 Crawler Pneumatic Water Well Drilling Rig thumbnail-4

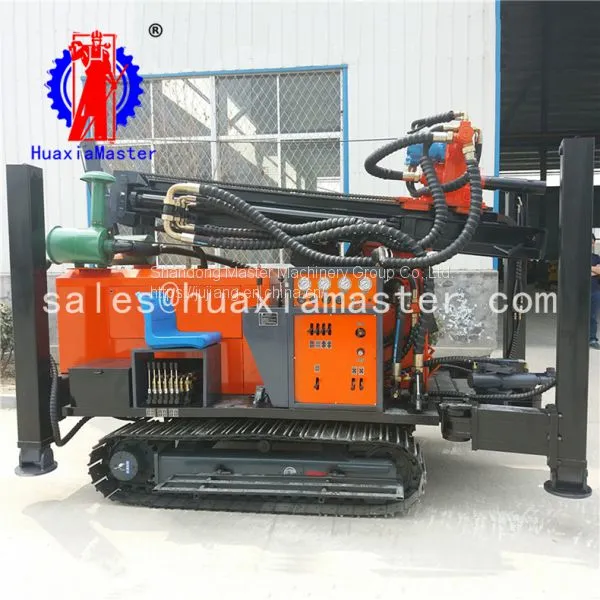

FY260 Crawler Pneumatic Water Well Drilling Rig photo-1
FY260 Crawler Pneumatic Water Well Drilling Rig photo-2

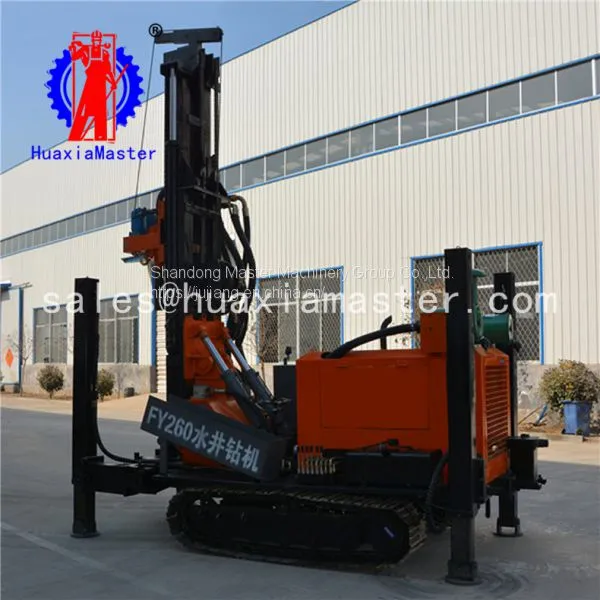

FY260 Crawler Pneumatic Water Well Drilling Rig photo-3

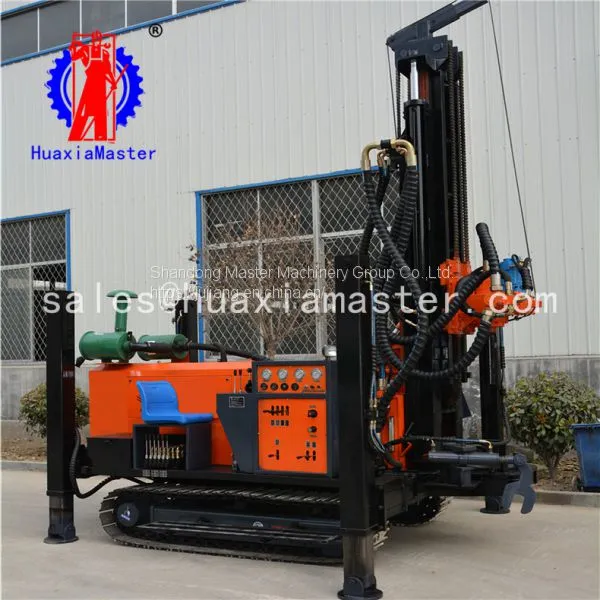

FY260 Crawler Pneumatic Water Well Drilling Rig photo-4
US$ 3500 - 5000 MOQ: 1 Combo
Key Specifications
Get Latest Price
Brand Name:
Huaxia Waster
Place of Origin:
China
Model Number:
FY260
Contact Supplier Request Quote Chat Now
Shandong Master Machinery Group Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxia Waster
Place of Origin China
Model Number FY260
Type Core Drilling Rig
Certification SIO9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 6.2T
Power Type Other
Usage Other, 勘探、打井、取芯
Condition New

FY260 crawler pneumatic water well drilling rig

1. The applications of FY260 crawler pneumatic water well drilling rig

· civil engineering drilling

· geothermal drilling,

· drilling with large diameter

· deep drilling footage

· fast, flexible and efficient.

2. The specifications of FY260 crawler pneumatic water well drilling rig

Model

FY260

Gross weight

t

6.2

External dimension

mm

3900*1950*2550

Aperture

mm

140-325

Drilling depth

m

260

Feed stroke

mm

3000

Travel speed

km/h

2.5

Grade ability

max.

30°

Rising height from ground

mm

250

Wind pressure

mpa

1.7-3.0

Air consumption

m³/min

17-35

Engine power

kw

85

Rotary speed

rpm

40-70

Rotation torque

n.m

7000-9000



Contact with us :

Shandong Master Machinery Group Co.,Ltd.

Sales Manager:Emily Lee

Tel:0086-19806265526

email : 1948889241@qq.com

Website:


Product Tags: air water machine , rock boring machine , bore well drilling machine
